The following IP address settings apply in this example:
4.5.3 Setting the IP address range
• Double-click on the “Project (x)” node in the “PLANT” area.
The “Project” editor group opens.
• Select the “Settings” editor.
• Set the desired IP address range and the subnet mask for the project.

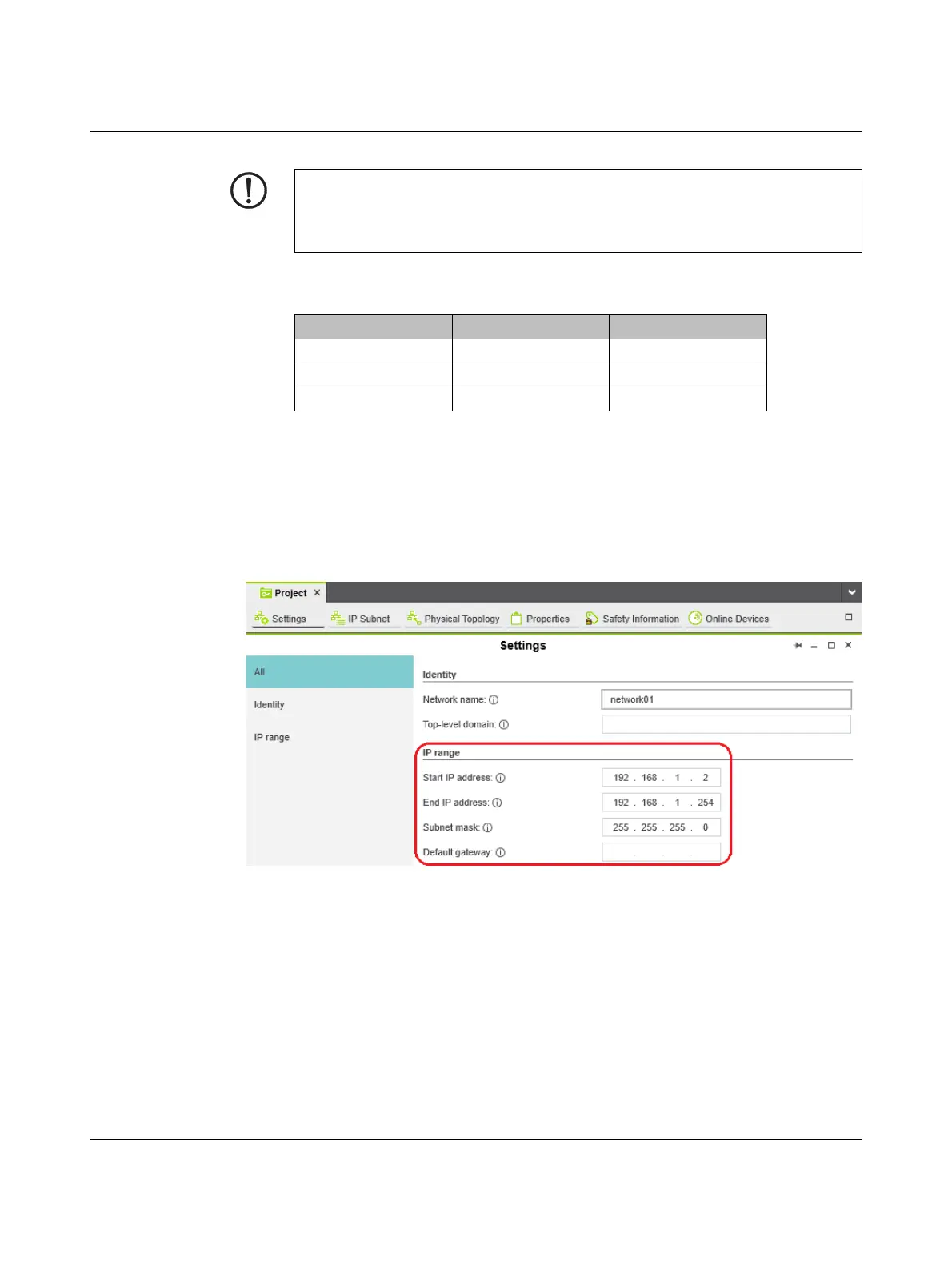

Figure 4-4 Setting the IP address range
NOTE: Limited number of gateway addresses
In order to avoid uncontrolled transmission of data via all Ethernet interfaces, do not enter
more than one gateway address in the “Ethernet” view in the “Settings” editor of the con-
troller editor group in PLCnext Engineer.
Table 4-3 IP address settings in the example
Interface IP address Subnet mask
LAN1 192.168.1.10 255.255.255.0
LAN2 192.168.2.10 255.255.255.0
LAN3 (3.1/3.2) 192.168.3.10 255.255.255.0
