User’s Manual of GSD-1002M

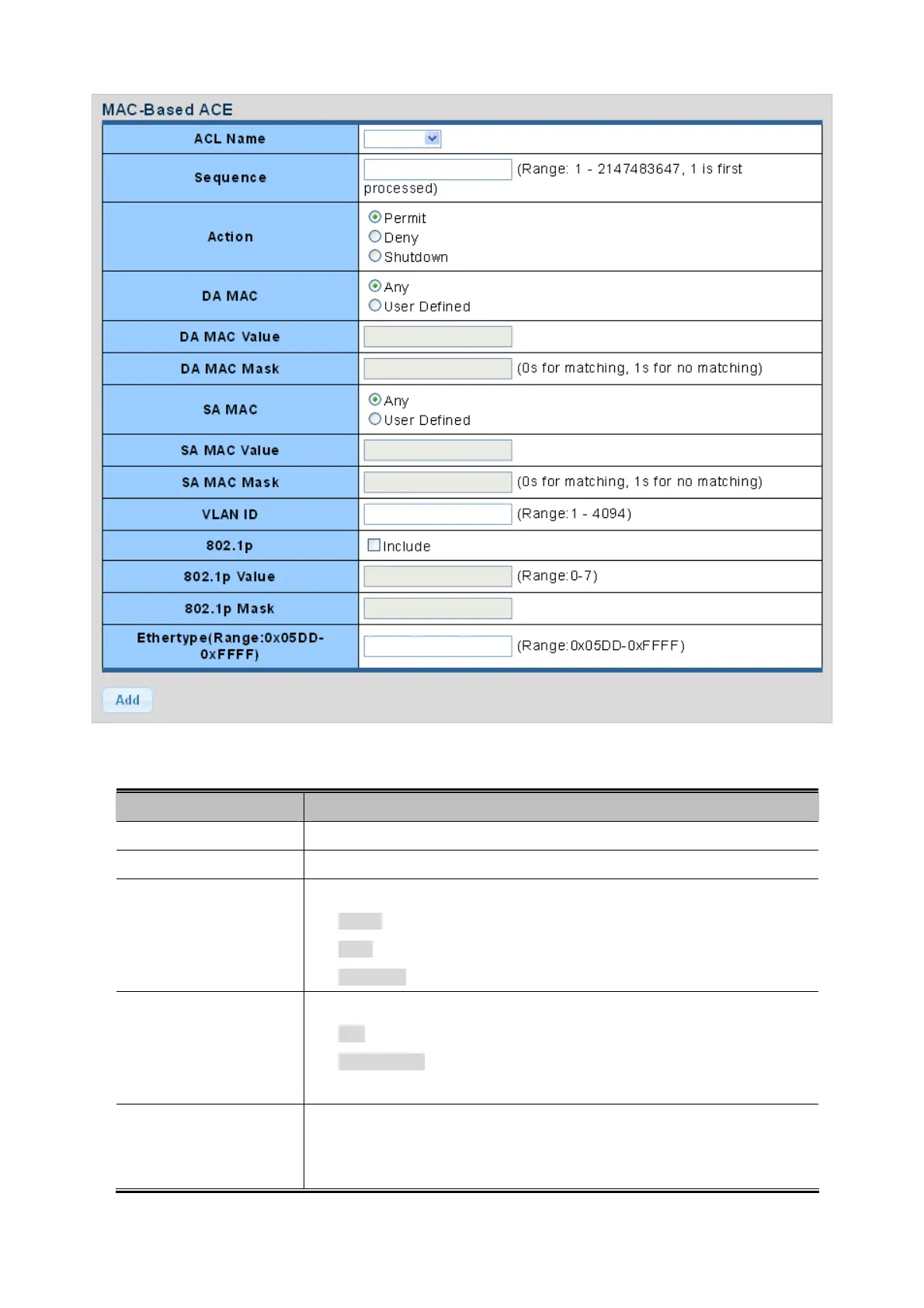

Figure 4-10-3 MAC-based ACE page screenshot
The page includes the following fields:
Object Description
Select ACL
name for this drop down list.
 ACL Name
Set the ACL
sequence.
 Sepuence
 Action
Indicates the forwarding action of the ACE.
 Permit: Frames matching the ACE may be forwarded and learned.
 Deny: Frames matching the ACE are dropped.
 Shutdown: Port shutdown is disabled for the ACE..
 DA MAC
Specify the destination MAC filter for this ACE.
 Any: No DA MAC filter is specified.
 User Defined: If you want to filter a specific destination MAC address with
this ACE, choose this value. A field for entering a DA MAC value appears.
 DA MAC Value
When "User Defined" is selected for the DA MAC filter, you can enter a specific
destination MAC address. The legal format is "xx-xx-xx-xx-xx-xx". A frame that
hits this ACE matches this DA MAC value.
