Chapter 3 Calibration
Revision W HF Series X-ray Generators - Service Manual
3-30 Quantum Medical Imaging, LLC
» All (all of the above)
» Ship (Reserved for factory use only)

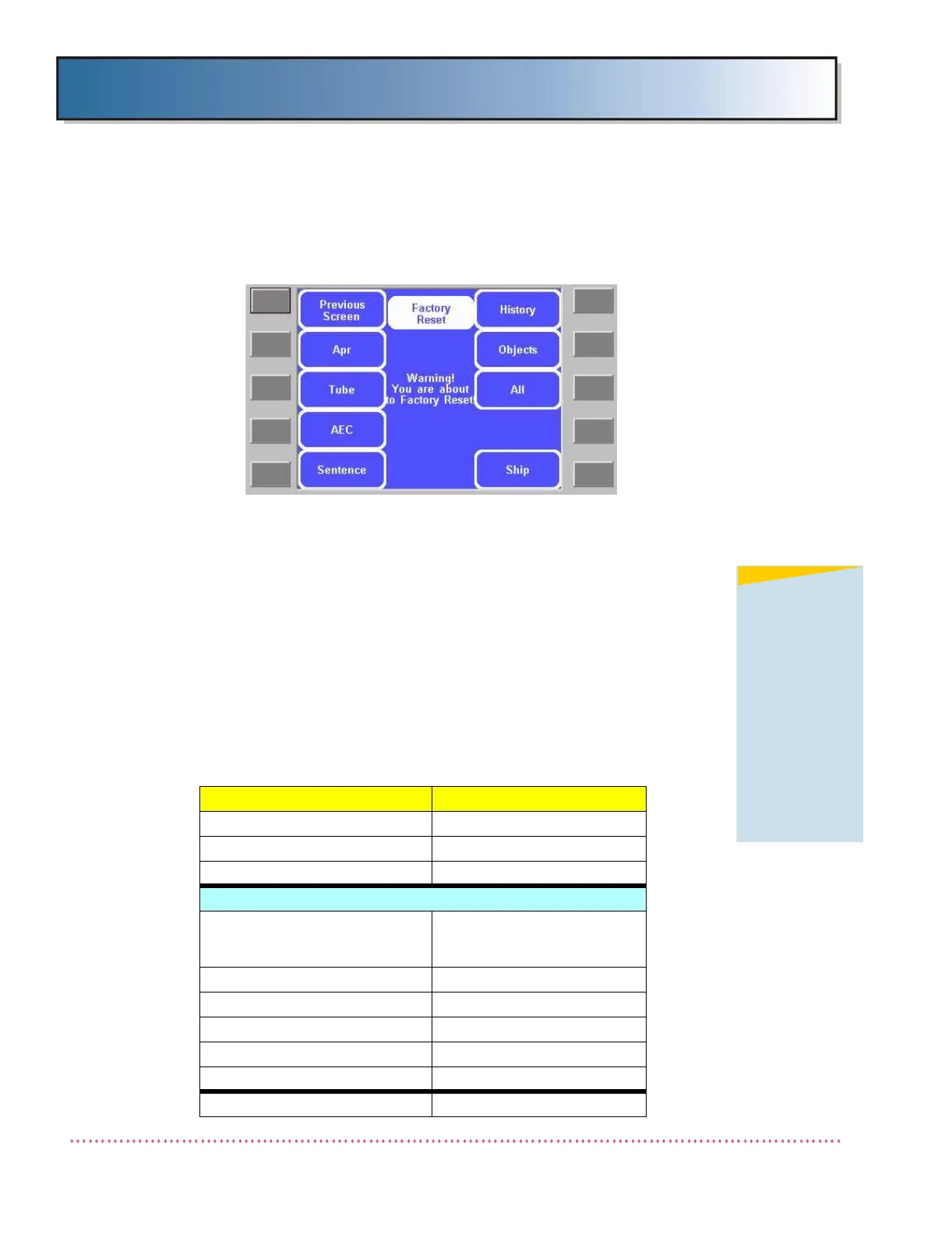

Figure 3-25. Factory Reset Menu
When reset, the selected parameter(s) are returned to factory preset
(default) values. Table 3-4 shows the system configuration default
values. Factory Reset may be necessary following NVRAM replacement
(on OCP Control Board AY40-004S1), following tube replacement, or
when abnormal values or unusual text appear in any of the system’s
screens.
Note: The "Q-WARE" generator software application can be
used to make a back-up copy of the generator’s calibration values and
edited APR techniques before performing a Factory Reset. This data can
later be downloaded back to the generator following reset thereby
eliminating the need to re-calibrate or re-program the generator,
however, re-verification is required.
Table 3-4. Factory Default System Settings
Setting Default
AEC On
ROTOR TYPE Rotor 60 Hz
DIGITAL RECEPTOR None
ION CHAMBERS (TABLE, WALL, WALL2, AUXILLIARY)
DETECTORS
A=2
B=1
C=3
POLARITY +
WALL RELAY OFF
TABLE RELAY OFF
INVERT NO
SLOPE/LVL SLOPE
WALL 40 FILM SCREEN Wall 40"
NOTE
Following a
Factory Reset,
the KV,
filament and
MA Calibration
procedures,
described in
this chapter,
must be
performed
before using
the system.
