Chapter 5 Service Instructions
HF Series X-ray Generators - Service Manual Revision W
Quantum Medical Imaging, LLC
5-61
Events/Warnings Log
Every time a significant action or event occurs in the generator, its occur-
rence is recorded in a special location on the Q-VISION computer known
as a "log file". This includes normal operations as well as warnings and
errors, because all may be useful in viewing normal system operation, as
well as viewing abnormal (error) conditions. These errors and events may
be useful to help diagnose problems. Hence, an event/warning log view-
ing utility, referred to as a "Log Viewer" is provided with Q-VISION
equipped systems. To access the Log Viewer, proceed as follows:
1. Access the General Service Options menu as described in the pre-
vious Statistics Report procedure. In the General Service Options
menu, select Log Viewer. The Log Viewer screen appears (see
Figure 5-5g):

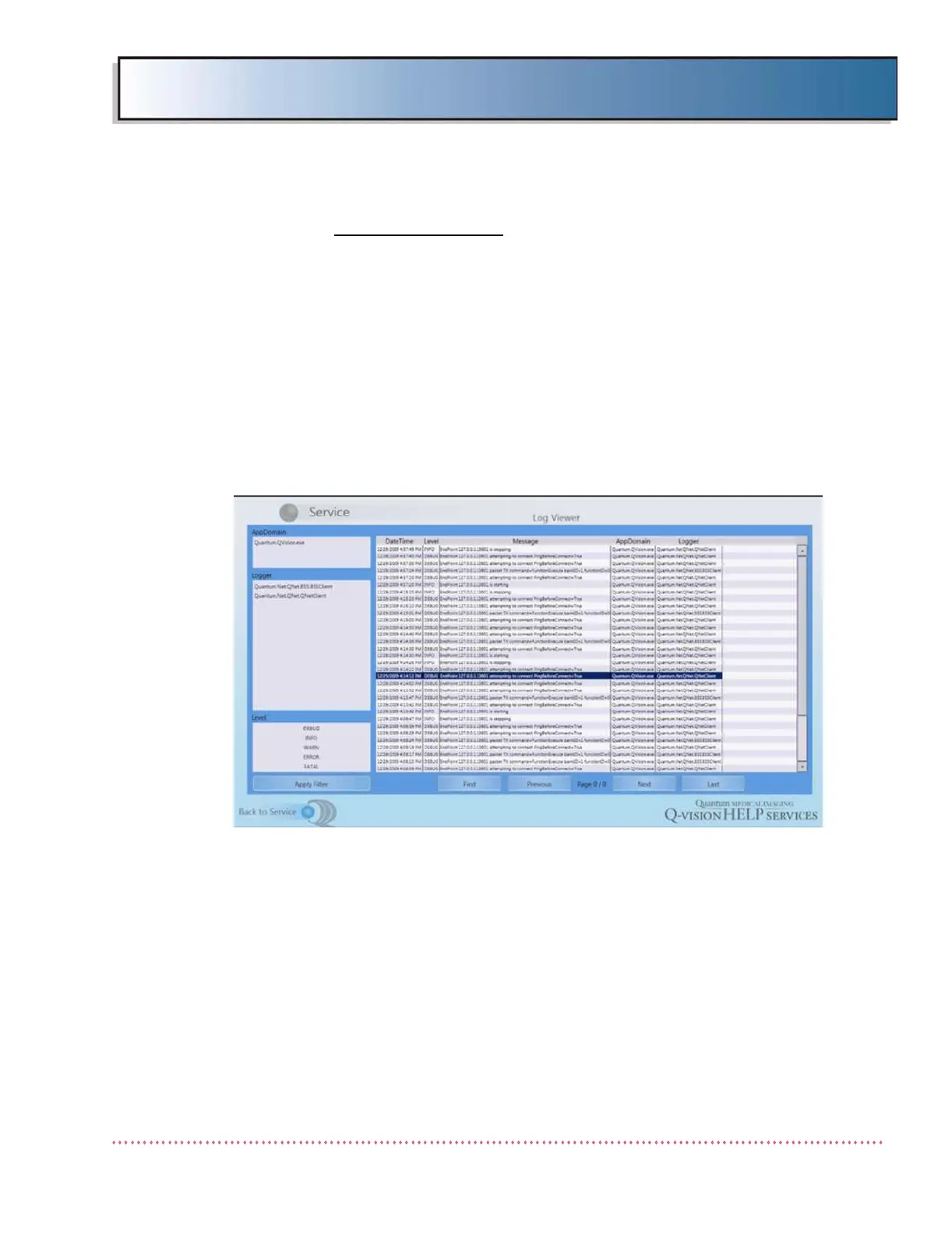

Figure 5-5g. Log Viewer Screen
2. The left column panes of the Log Viewer screen include filters
that can be used to focus the Log Viewer contents by selecting
particular programs to view (listed in the AppDomain pane), Log
Files to view (items listed in the Logger pane), and/or by select-
ing particular events types (levels) to view (items listed in the
Level pane).
3. To view only generator related error messages, select "Quan-
tum.Generator.Master.MasterGenerator" in the Logger pane and
select "ERROR" in the Level pane, then touch Apply Filter but-
ton.
