Quantum ODYSSEY HF Series User Manual

Chapter 2 Assembly & Installation
Revision W HF Series X-ray Generators - Service Manual
2-54 Quantum Medical Imaging
17. If the generator IP address needs to be changed, press the Load button to
causes the lower portion of the "Service Configuration" screen to populate
with data relevant to the Generator with the IP Address shown in the top por-
tion of the screen, as shown below:

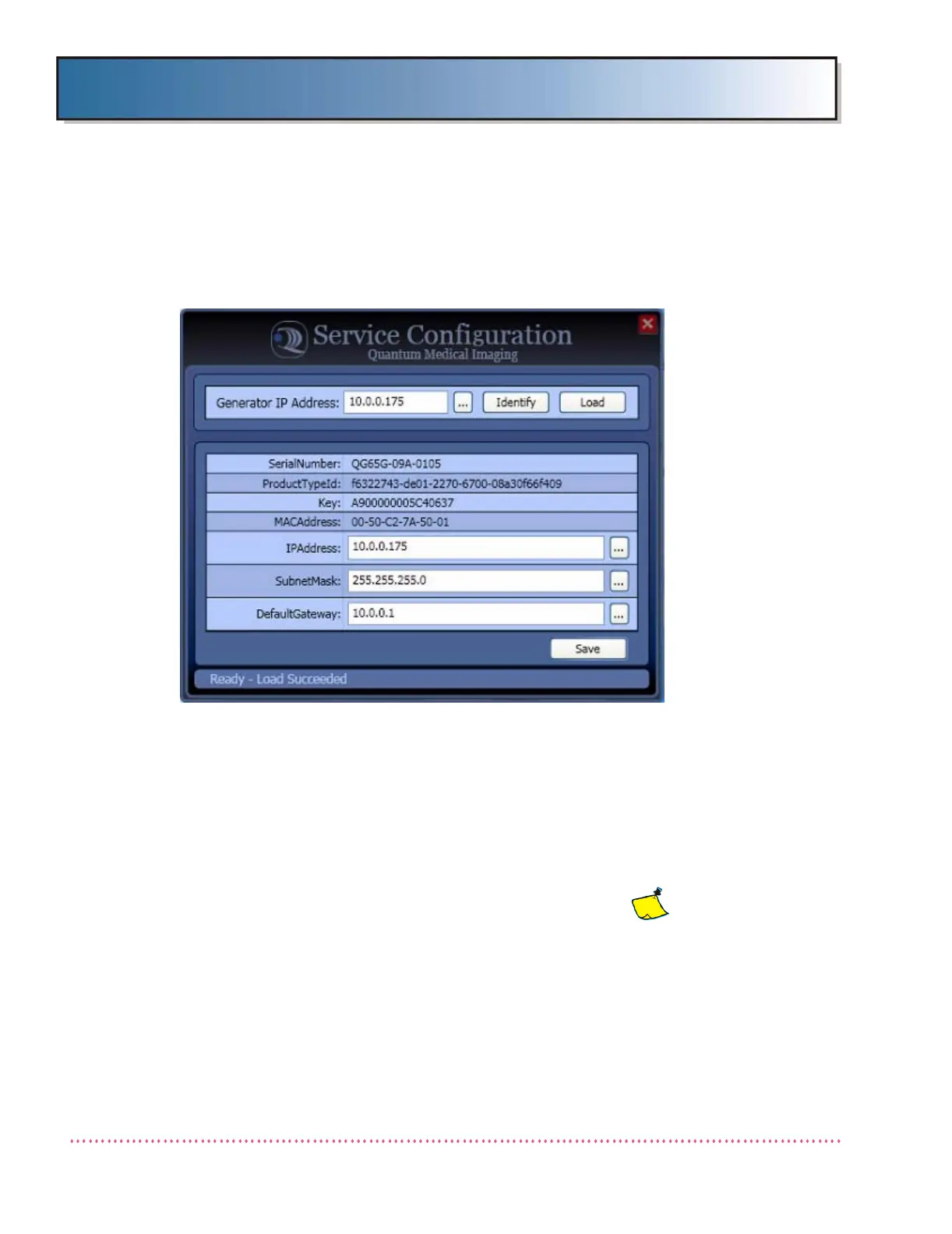

Figure 2-25g. Service Configuration Screen
18. To change the IP Address, SubnetMask, or DefaultGateway field, touch the ...
button to the right of the field to open a data input Touch Pad, which oper-
ates in the same manner as described previously on the Network Settings
Screen.
19. After all changes are made, touch Save button. This saves the new IP
Address settings for the Generator.
Note: The Generator Q-Node and Q-VISION Subnet Addresses
must match in order for the Service Configuration program to
become operational. Once communication between the Q-
VISION OCP Computer and the Generator has been established,
the technician may then set the Generator IP Address in
accordance with instructions provided by the cognizant IT
professional for the facility at which the System is installed.
