Chapter 4: Test and Calibration Procedures ABL77 Service Manual
Paper Jam, Continued
Clear a paper
jam (continued)
Step Action
7.
• Slide the printer back into the analyzer.
• Secure into place with the connecting screws.
8.
• Connect the analyzer to an A/C source.
• Turn the analyzer on.
9.
Re-feed the paper roll into the analyzer.

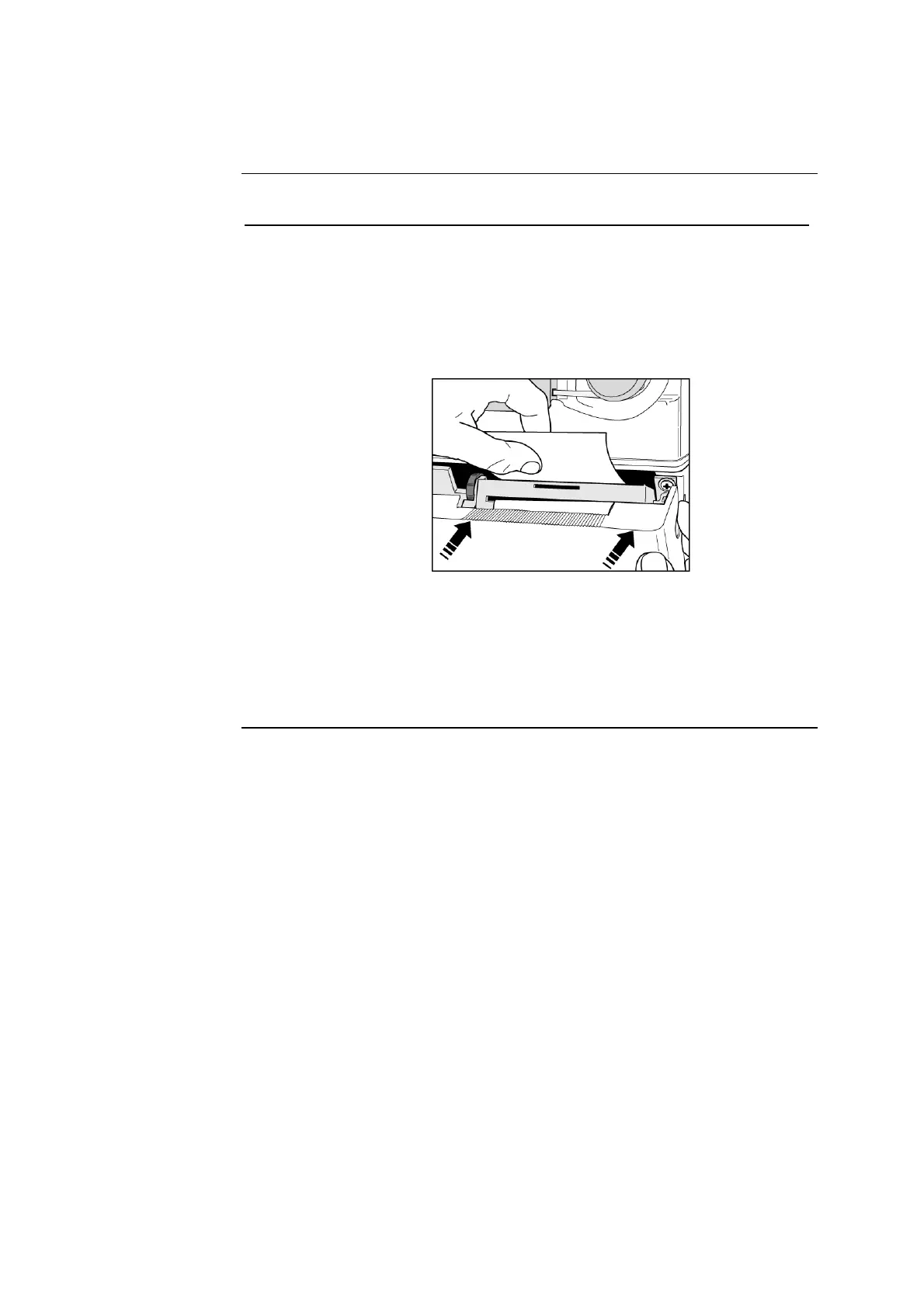

Figure 4-19
NOTE: Ensure the leading edge of the paper feeds out the printer
door (see Figure 4-19).
NOTE: Advancing the paper roll 18 to 24 inches (~0.5 meter) when
installing a new roll of paper will prevent the paper from shifting to
the left.
4-42 Rev. F
