ABL77 Service Manual Chapter 6: Replacements
Valve Board, Continued
Lower module
diagram

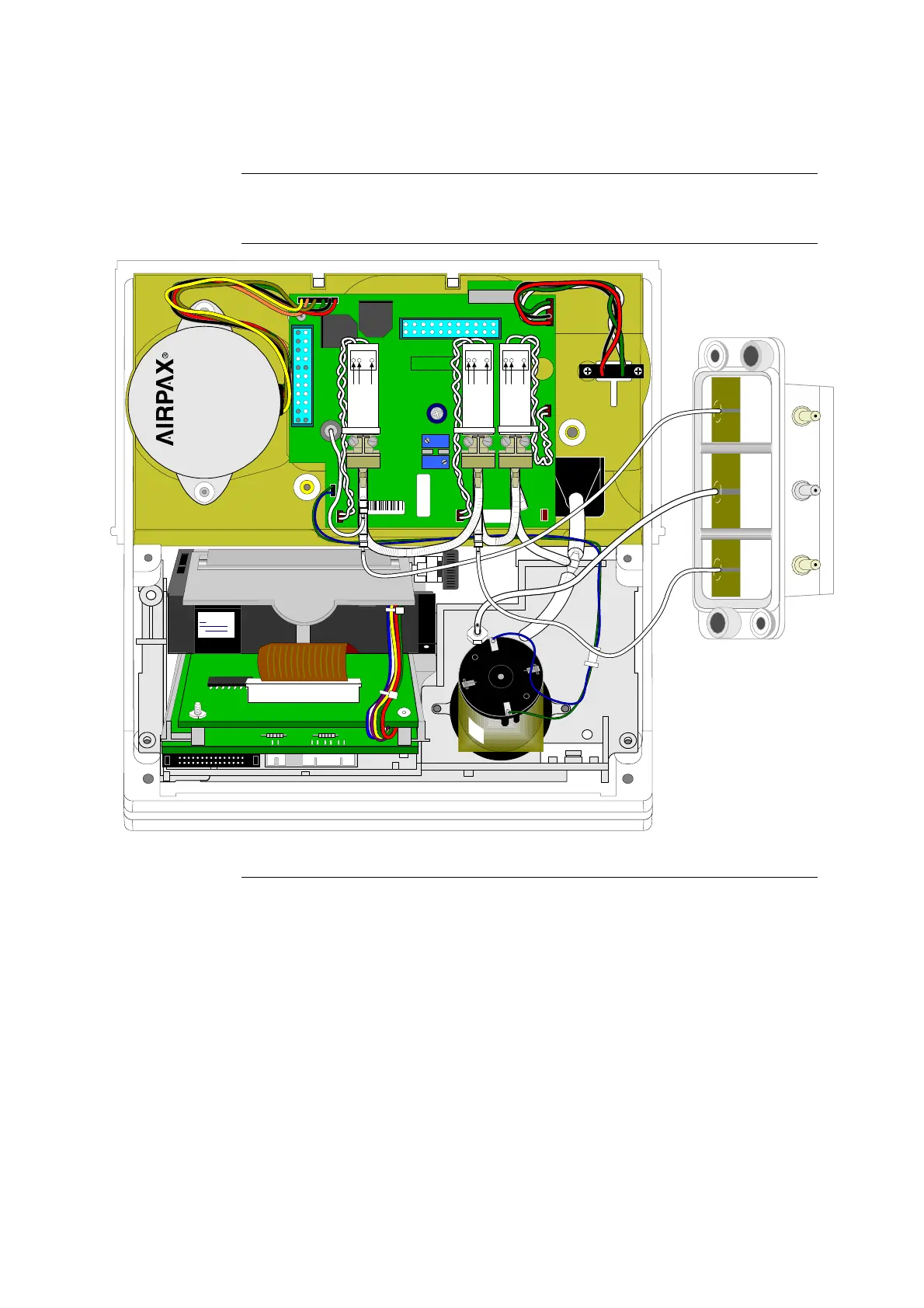

The following diagram (Figure 6-9) illustrates a properly installed, current design,
valve board.
41449 / B
41477
SERVICE BOARD ABL70-77
ASSY REV :
K1
J5
R2
R18
REVISION
J10
PN 902-811
J1
J9
SENSOR BOSS
SENSOR
LUER
J6
J4
J8
J7
J3
12 1
13 24
J2
2587
J6
J5
J4
J9
J8
J7
L2 L1 L3
J10
Cal2 Waste Cal1
S H
LTP3345B-C576
A B C
PULL
PUSH
MADE IN MALAYSIA
STEPPER MOTOR
5: VDC
OHMS/COIL: 6.25
STEP ANGLE: 7.5
L82701-P1
L3
COM
N.C.
N.O.
L1
COM
N.C.
N.O.
L2
COM
N.C.
N.O.
Figure 6-9
Rev. F 6-17
