ABL77 Service Manual Chapter 7: Re-Assembly

Disk Drive, Continued

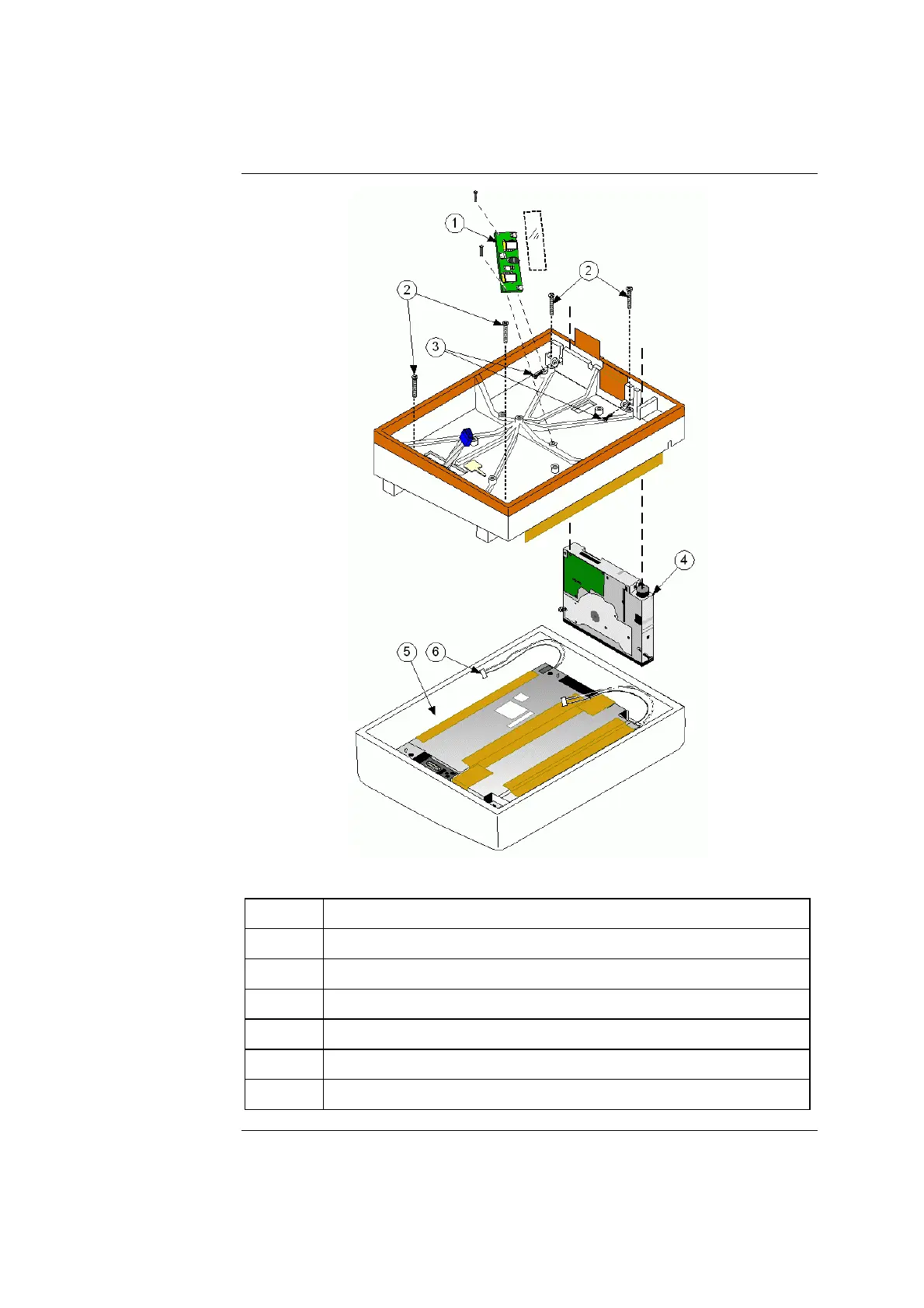

Disk drive

diagram

Figure 7-2

Part Function

1. Backlight inverter board

2. Housing screws

3. Disk drive screws and washers

4. Disk drive

5. Upper housing

6. LCD display cables

Rev. F 7-11
