ABL77 Service Manual Chapter 7: Re-Assembly
Waste Pump and Waste Pump Head, Continued
Attaching the
waste pump
(continued)
Step Action
4.
If the previous waste pump was disconnected at the waste pump cable
adapter, connect the new waste pump cable to the adapter already in
place. Otherwise, continue with step 5.
5.
Connect the waste pump cable to J4 on the valve board with the green
wire in the top position, as shown in Figure 7-14.
6.
Orient the cable connector so that the green wire is on top toward the
sensor cassette fitting luer. Position the cable to prevent pinching and
kinking.
7.
Bend the waste pump flanges flat with the rear of the motor to prevent
shorting against the main housing.

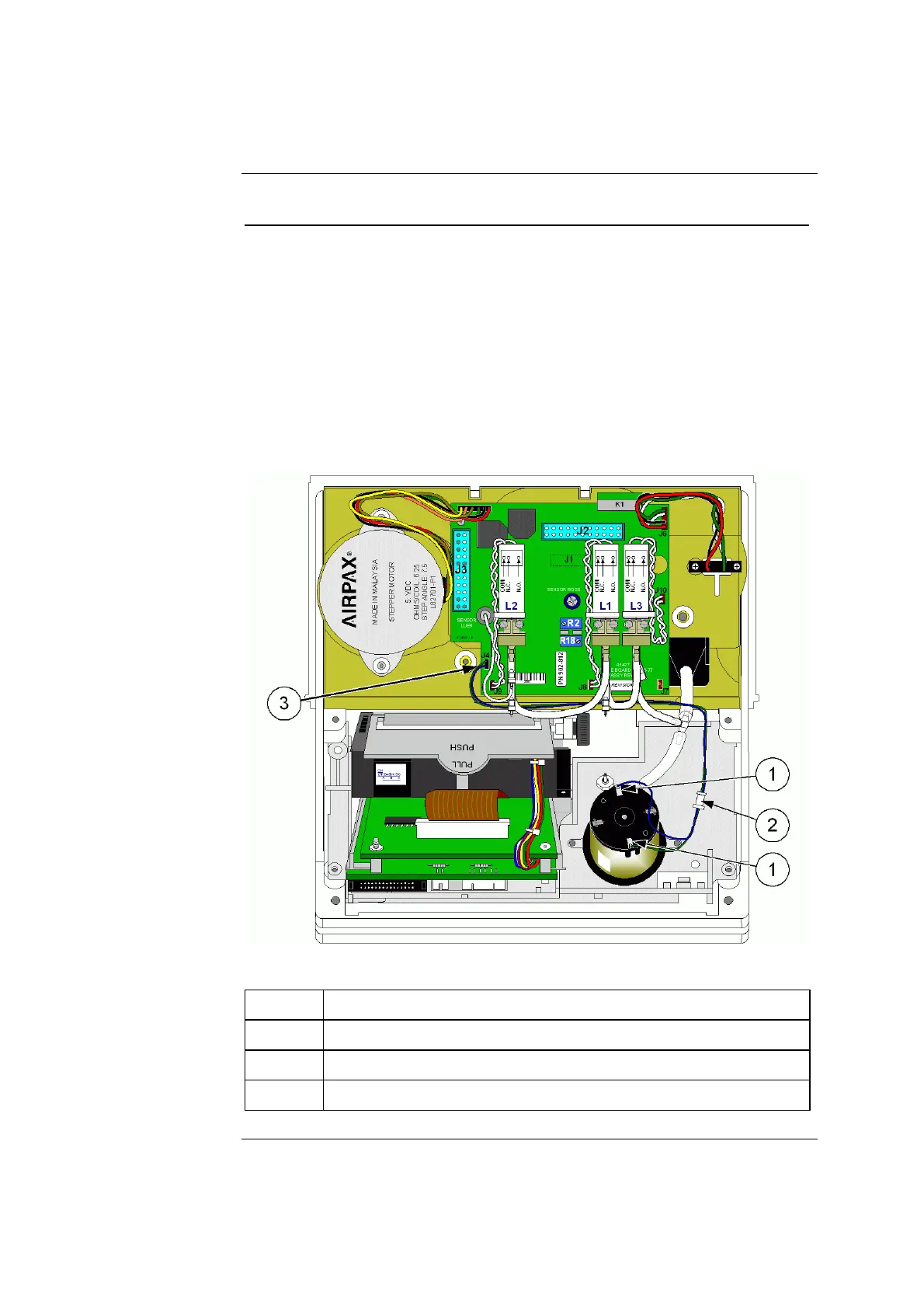

Figure 7-14
Part Function
1. Waste pump flanges
2. Waste pump cable adapter
3. Waste pump cable connection – J4
Continued on next page
Rev. F 7-25
