Chapter 2: Analyzer Description ABL77 Service Manual
Sample Analysis, Continued
Analysis – phase
2 aspiration
• The analyzer prompts the user to remove the sample and lower the inlet probe
• The analyzer then advances the sample a second time to complete the positioning
of the sample (see Figure 2-4).

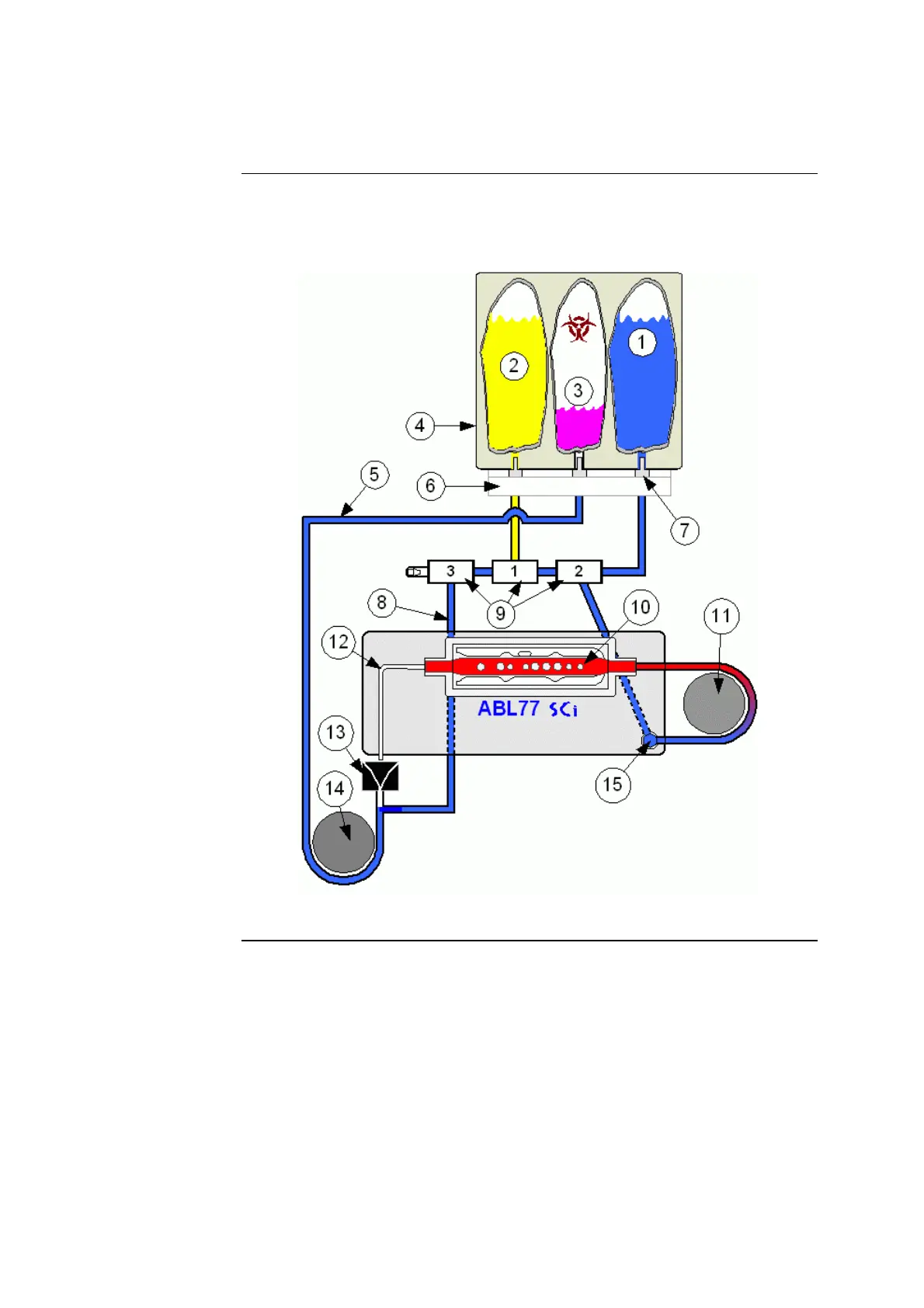

Figure 2-4
Continued on next page
2-14 Rev. F
