ABL77 Service Manual Chapter 2: Analyzer Description
Module Descriptions, Continued
Rear view of
analyzer

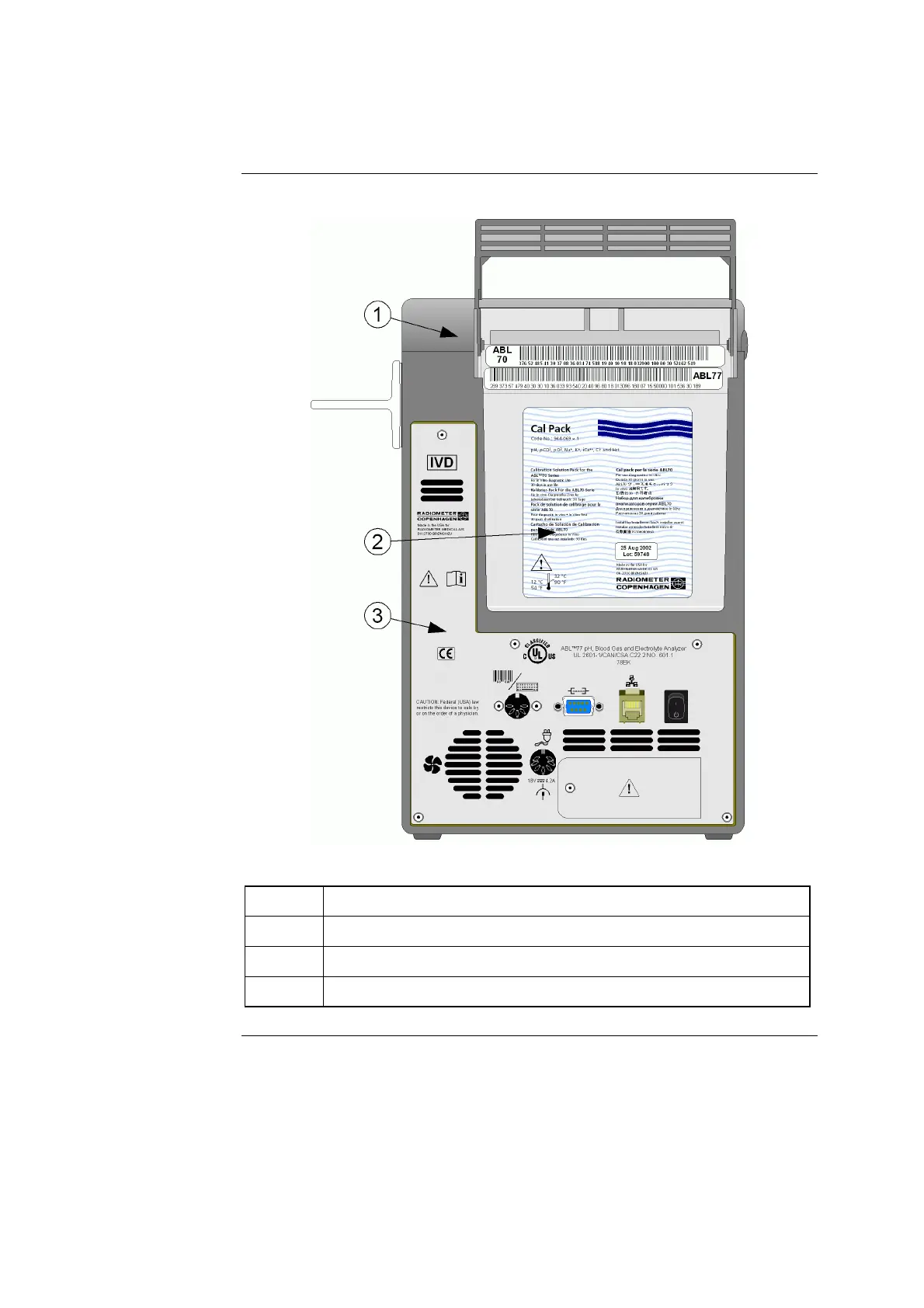

Figure 2-7 shows the rear view and cal pack of the ABL77 analyzer.
Figure 2-7
Part Function
1. Main housing assembly
2. Cal pack
3. Electronics module
Continued on next page
