Chapter 9: Spare Parts ABL77 Service Manual
Lower Module Components, Continued

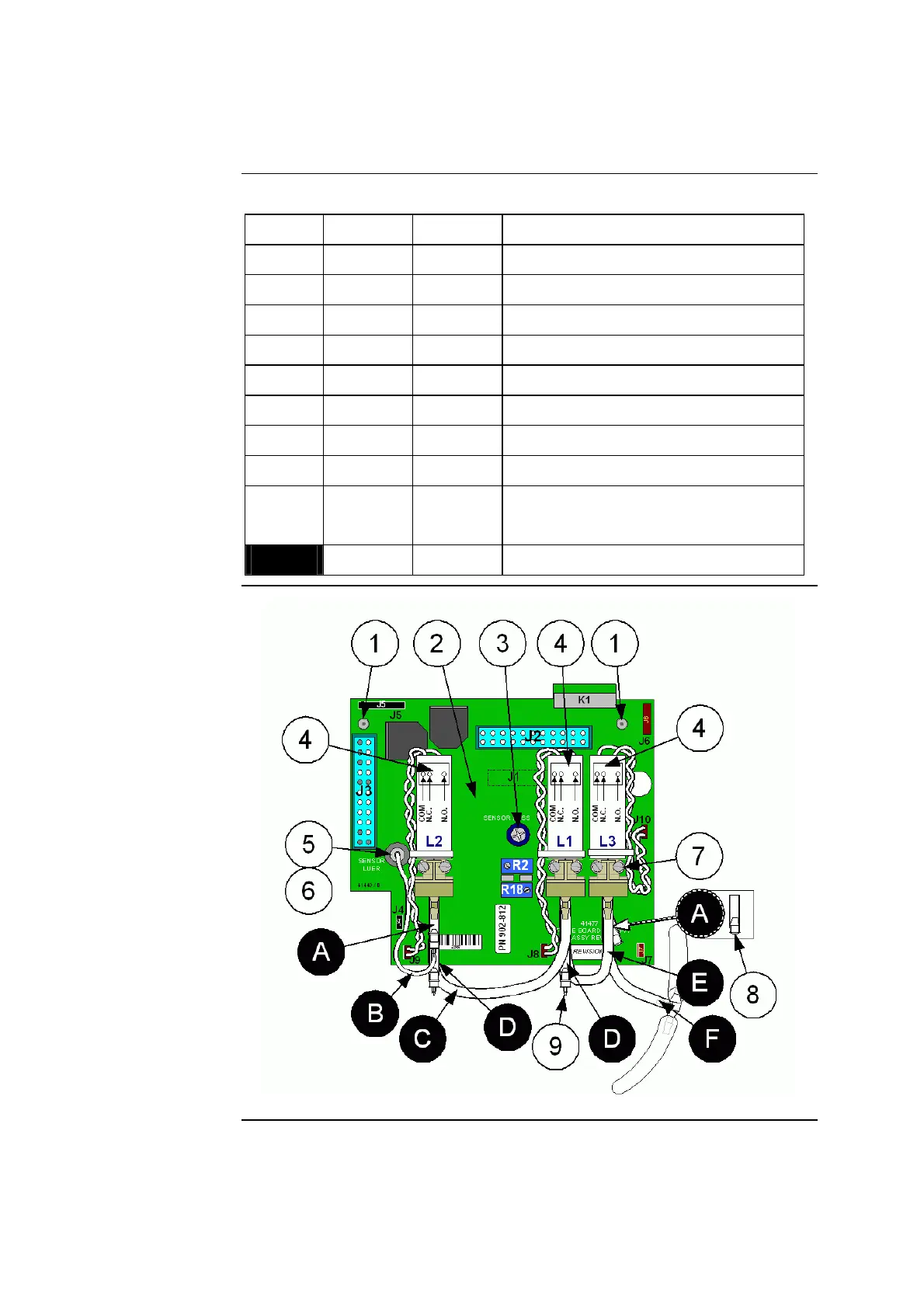

See the valve board diagram for references in this table.
Valve board
Item REF Quantity Description
1. 008-937 2 Screw, Phillips head 4-40 x ¼”
2. 902-812 1 Valve board, ABL77
3. 008-938 1 Screw, Phillips head 6-32 x ¼”
4. 902-814 3 Single valve kit, ABL77
5. 032-908 1 Nut, hex 10-32
6. 046-107 1 Washer, #6 flat
7. 905-776 6 Valve hardware kit (screws & washers)
8. 842-338 1 Valve tubing plugs
9. 924-298
924-324
3 Valve tubing adapters (25 each)
Valve tubing adapters (6 each)
A → E
905-781 1 Tubing kit (pre-cut tubing pieces)
Valve board
diagram
Continued on next page
