ABL77 Service Manual Chapter 9: Spare Parts

Lower Module Components, Continued

NOTE: Older style valve boards that do not have a J10 connector must use the

Check Valve Conversion kit with the Y-cable for L3 to use the current check valve

fluidics system.

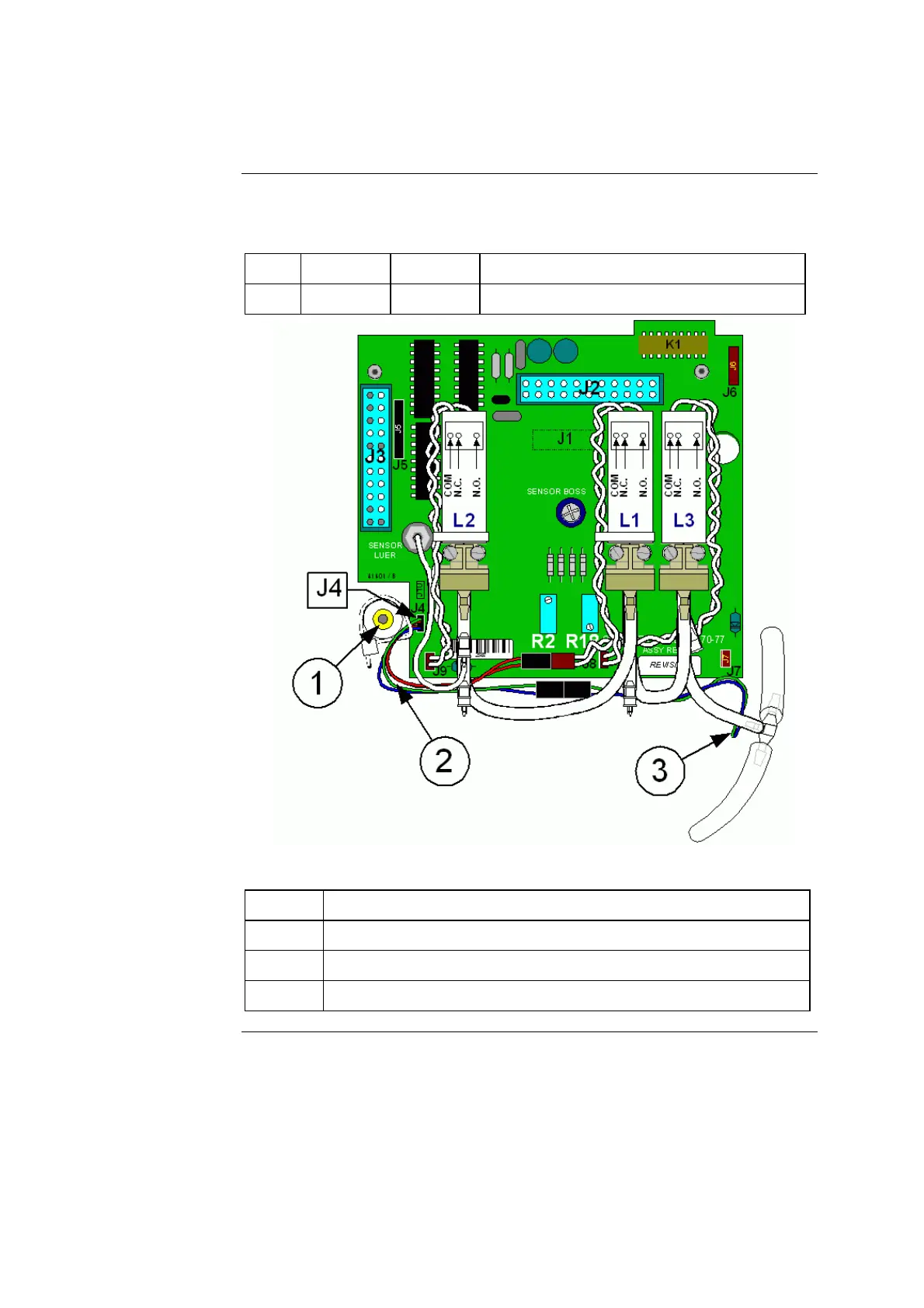

Valve board

diagram

(continued)

Item REF Quantity Description

905-782 1 Check valve conversion kit

Figure 9-1

Part Function

1. Main housing standoff

2. Y-cable for L3

3. Waste pump cable

Rev. F 9-11
