Chapter 2: Analyzer Description ABL77 Service Manual
Module Descriptions, Continued
Disposables
The ABL77 has two key disposable components, a sensor cassette and a cal pack.
These disposable items are designed for a limited number of uses throughout a
specified in-use life. After use, these components are considered a biohazard and
should be disposed of in a safe and proper manner.
Sensor cassette
The sensor cassette contains the sensor array within a sample flowcell. It transmits
sensor data to the analyzer for interpretation (see Figure 2-12).

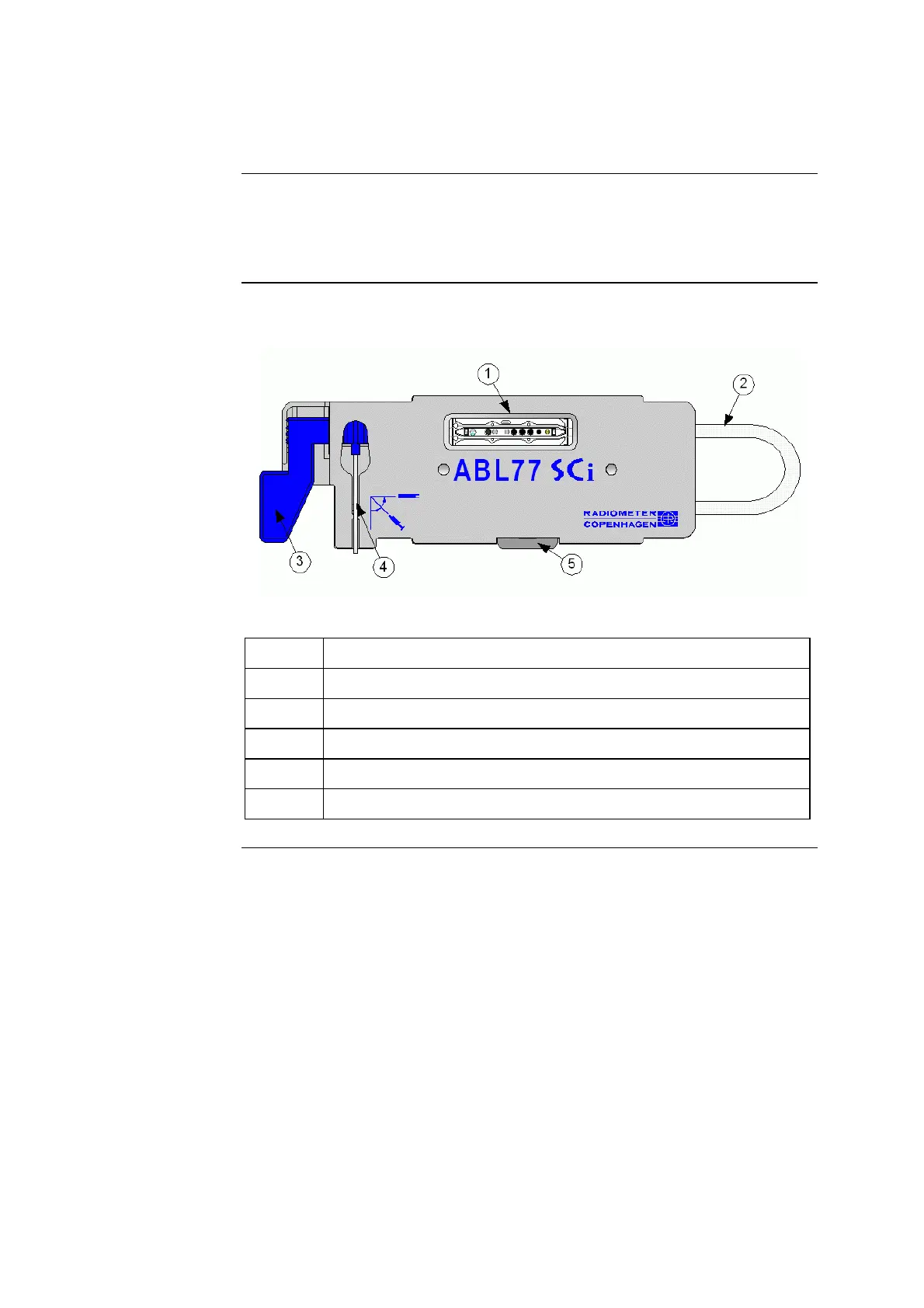

Figure 2-12
Part Function
1. Sensor window
2. Peristaltic pump tube
3. Inlet flap
4. Inlet probe
5. Release latch
Continued on next page
2-22 Rev. F
