ABL77 Service Manual Chapter 2: Analyzer Description
Module Descriptions, Continued
Barcode scanner

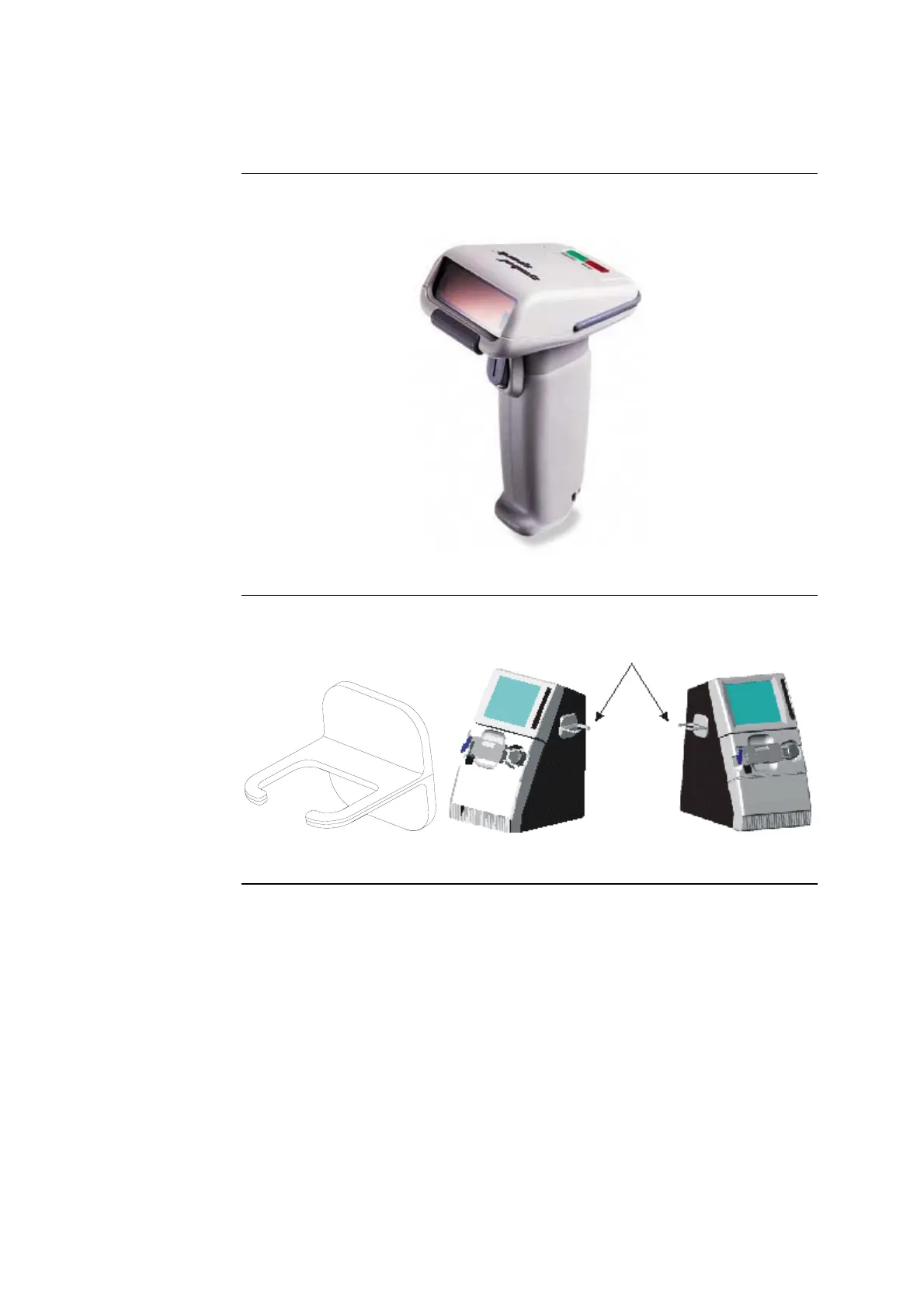

The barcode scanner, shown below, is for use with the ABL77 analyzer only (see
Figure 2-10).
Figure 2-10
Barcode scanner
holder
The barcode scanner holder may be installed on the analyzer in any location that is
convenient (see Figure 2-11).
Figure 2-11
Continued on next page
Rev. F 2-21
