RADIOMETER ABL 77 Series - Page 47

Chapter 2: Analyzer Description ABL77 Service Manual
Module Descriptions, Continued

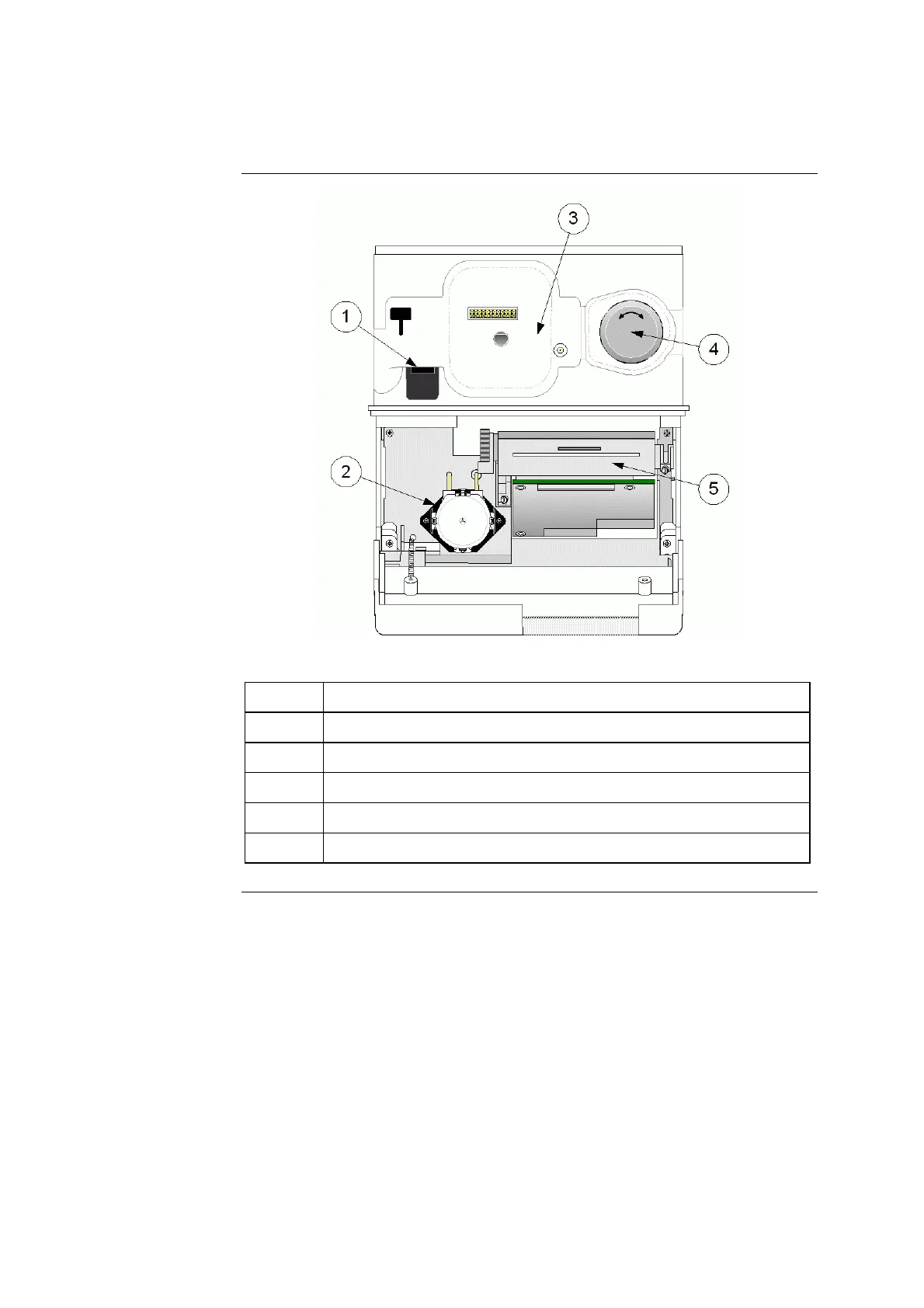

Lower module -
Front
Figure 2-19
Part Function
1. Waste drain
2. Waste pump
3. Sensor cassette nest
4. Roller pump wheel
5. Printer
Continued on next page
