Chapter 4: Test and Calibration Procedures ABL77 Service Manual
Calibration Lines Procedure, Continued
Calibration lines
procedure
(continued)
Step Action
12.
• Fill a syringe (with luer adapter) from a Sample Path Obstruction
Tools kit (REF: 905-674) with deionized water or sterile water.
• Attach the syringe to the cassette luer of the analyzer (see
Figure 4-1).

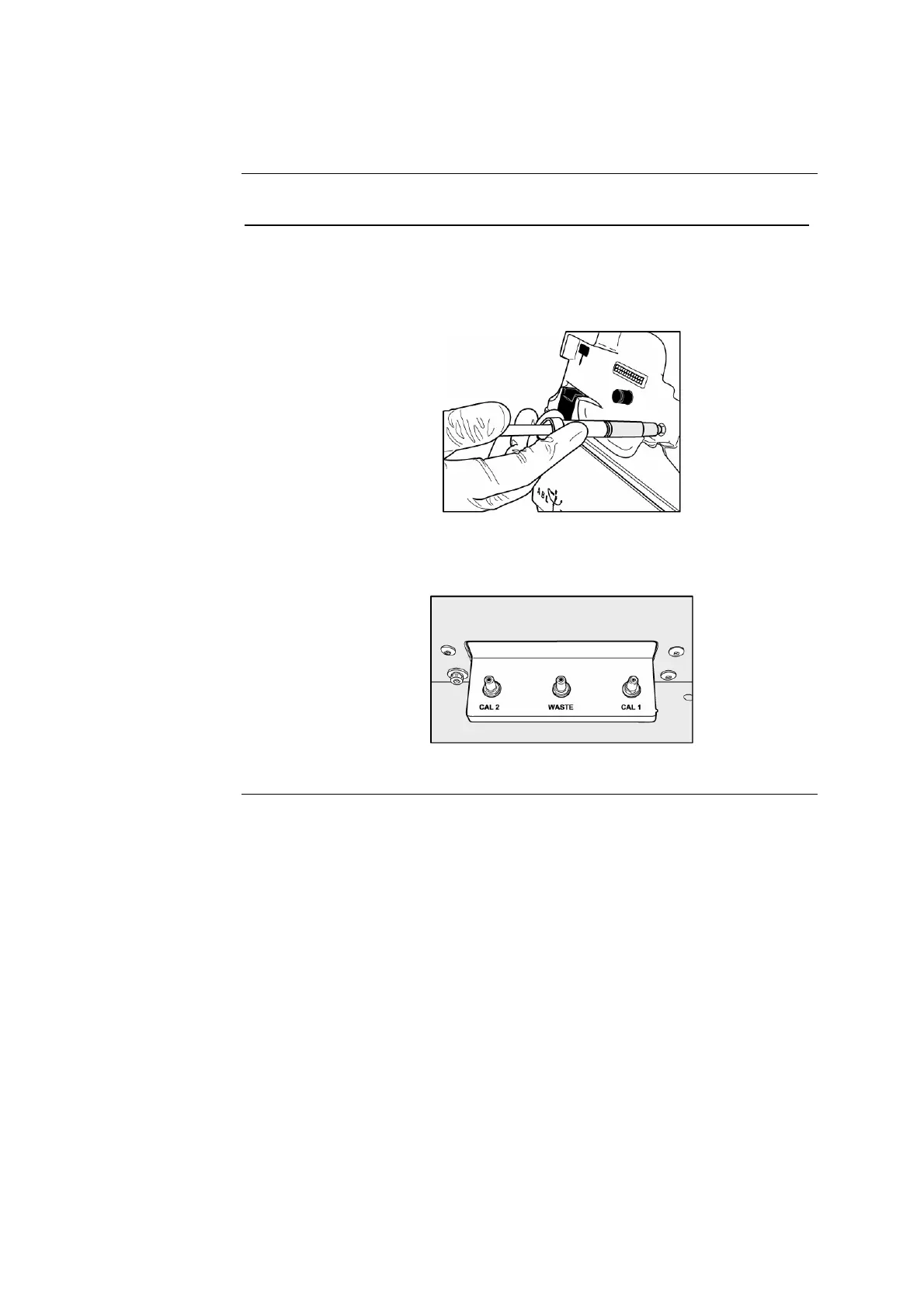

Figure 4-1
13.
Be prepared to collect fluids exiting the cal pack manifold at the rear
of the analyzer (see Figure 4-2).
Figure 4-2
Continued on next page
4-8 Rev. F
