Installing firmware and software updates

R&S

TSMA6

119User Manual 4900.8057.02 ─ 11

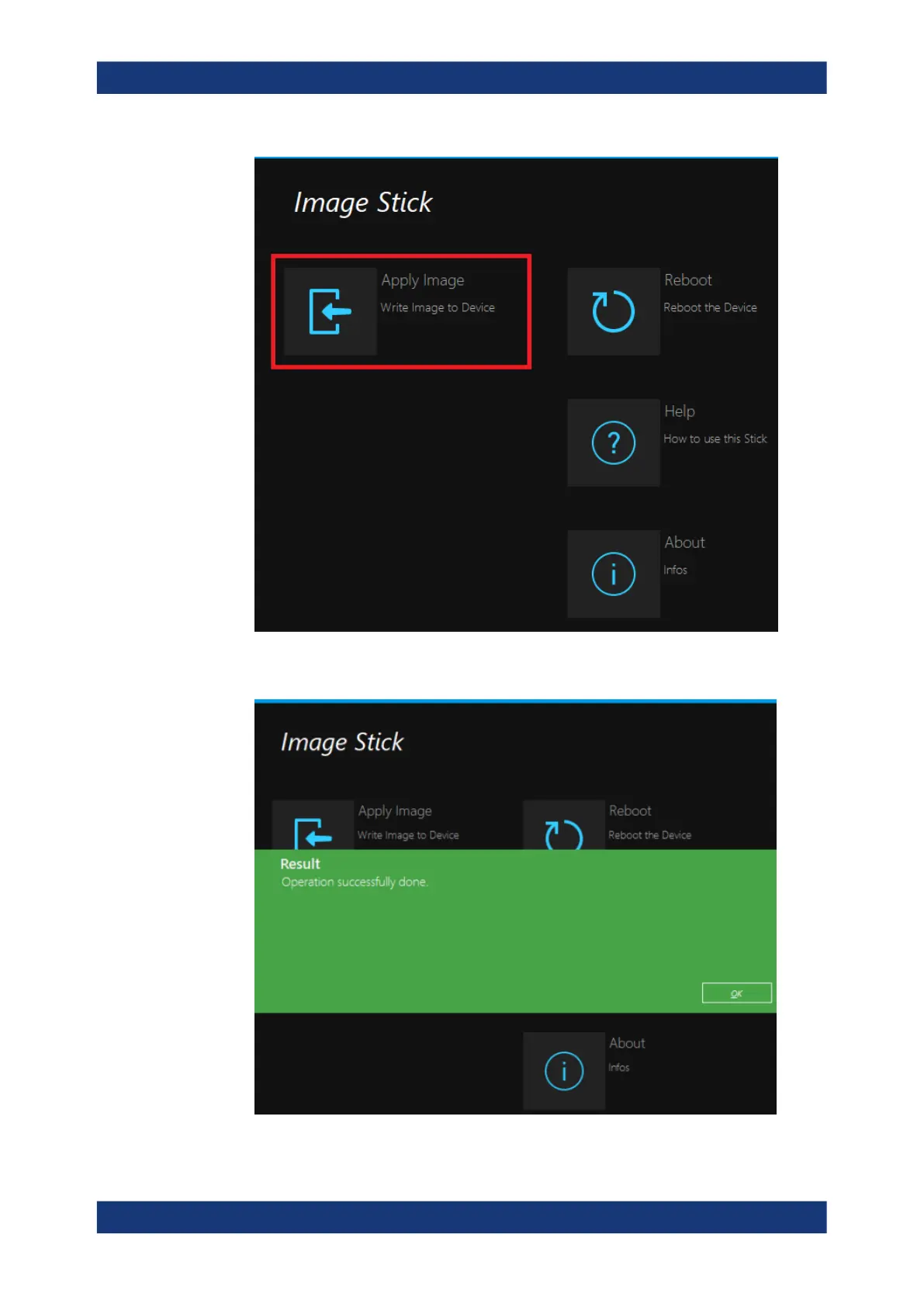

3. After the apply process has finished, the message "Operation successfully done."

appears.

4. Press "OK".

Capture and apply R&S TSMA6 images

Table of Contents3
