Introduction to Remote ViCom Sample App
R&S
®
TSMA6
178User Manual 4900.8057.02 ─ 11
Status
Displays the measurement duration and the measurement rate. The status button dis-
plays the following colored states.
●
Green
The measurement is running and measurement data are received.
●
Yellow
The measurement is running but no measurement data are received.
●
Red
The measurement was stopped.
► To stop the scan, use "Stop scan" in the menu inflator in the top-right corner.
B.3.5 Throughput test case
The throughput test case is useful to find out the throughput speed of your connection.
This allows to decide, which connection type (WLAN or Bluetooth) should be used.
B.3.5.1 Throughput preferences
To start the throughput test, the following steps must be performed.
1. Specify the parameter "Buffer size (in Byte)".
The default buffer size is 20480 bytes.

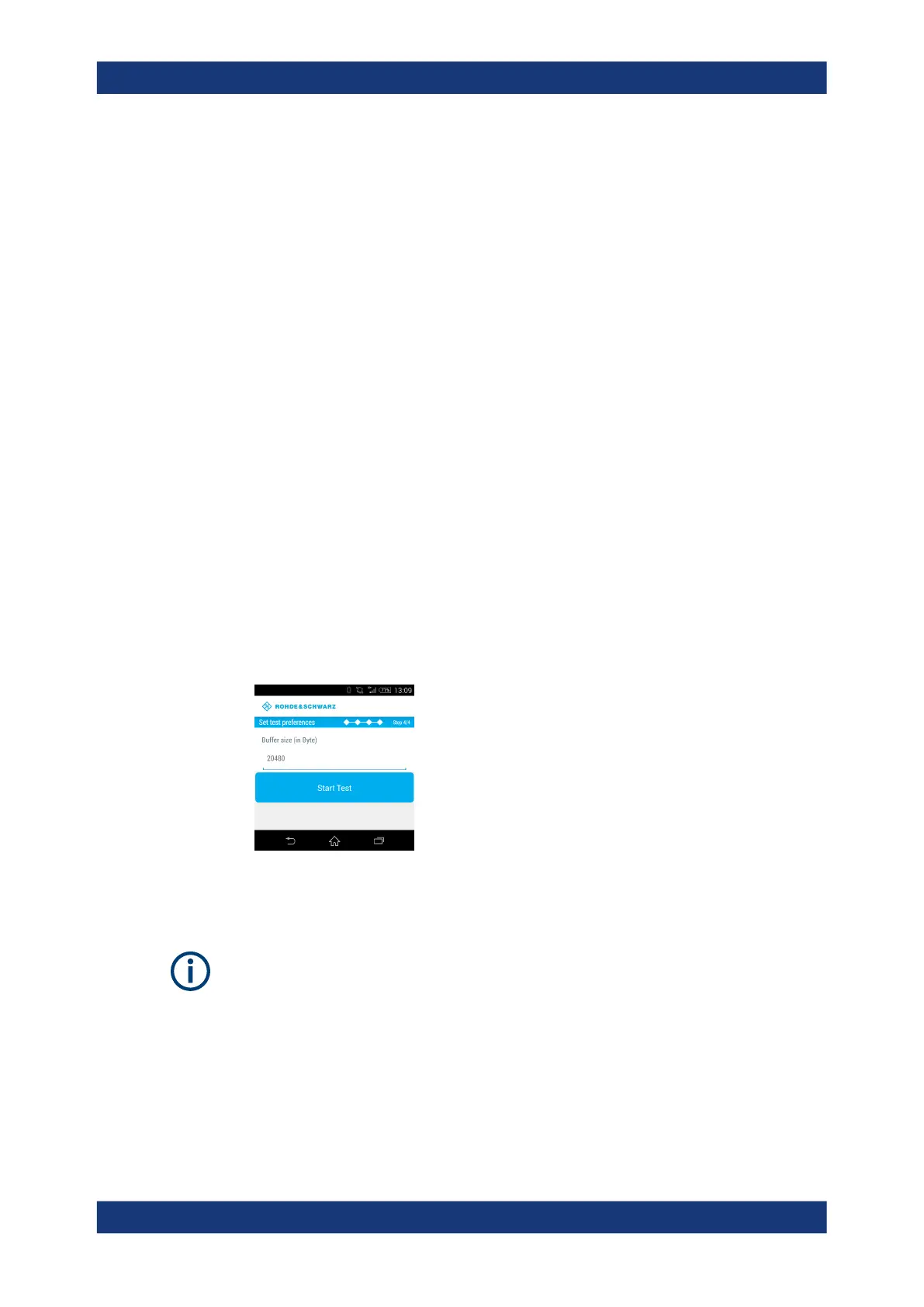

Figure B-11: Throughput Preferences
2. Click "Start Test" to start the throughput test.
For WLAN, the optimal buffer size varies between 950.000 byte and 1.000.000 byte.
For Bluetooth, the optimal buffer size varies between 81.000 byte and 165.000 byte.
B.3.5.2 Throughput results
The result of the throughput test case is a line chart with the following axes:
●
x-axis
The x-axis displays the number of measurements
Usage
