Measurement Setup

R&S

TSMA6

75User Manual 4900.8057.02 ─ 11

Setup with TSMA6B-BP + TSMA6/6B + TSME6 + TSMExxDC

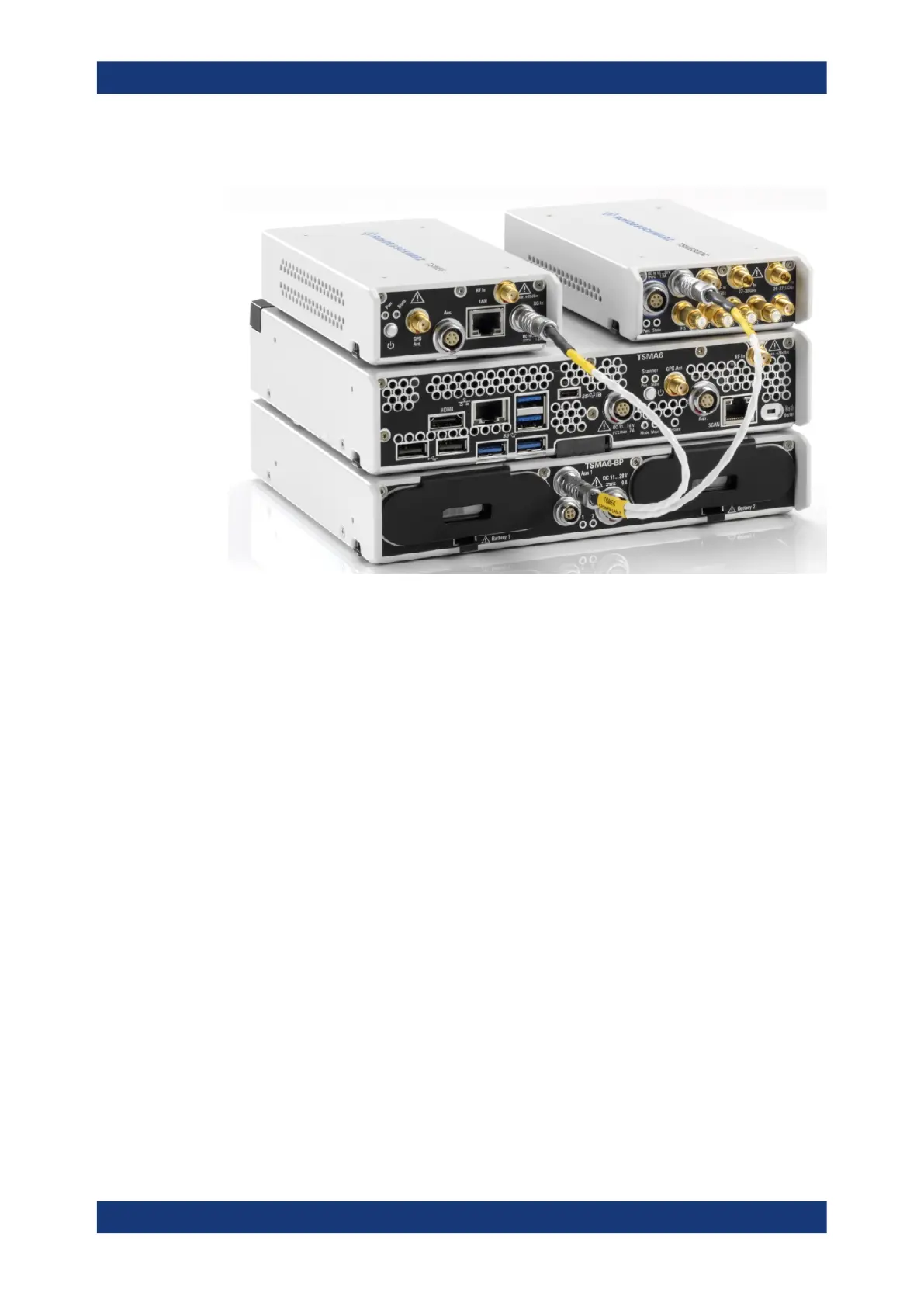

Figure 7-15: TSMA6B-BP + TSMA6/6B + TSME6 + TSMExxDC

7.1.5 Disconnecting the R&S TSMA6 from R&S TSMx devices

To disconnect the R&S TSMA6 and R&S TSMx devices (TSMA6/6B, TSME6,

TSMExxDC), proceed as follows.

1. Power off all connected R&S TSMx devices.

2. Disconnect the DC power cables of the devices.

3. Disconnect all other cables of the devices.

4. Remove the R&S TSMx devices.

5. Only for R&S TSMA6/6B: Lift the release button (1) on both sides of the R&S

TSMA6/6B and slide it in direction (2) until the device is released.

Vibration-proofed stacking
