R&S TSMA6 User Manual

Introduction to Remote ViCom Sample App
R&S
®
TSMA6
176User Manual 4900.8057.02 ─ 11

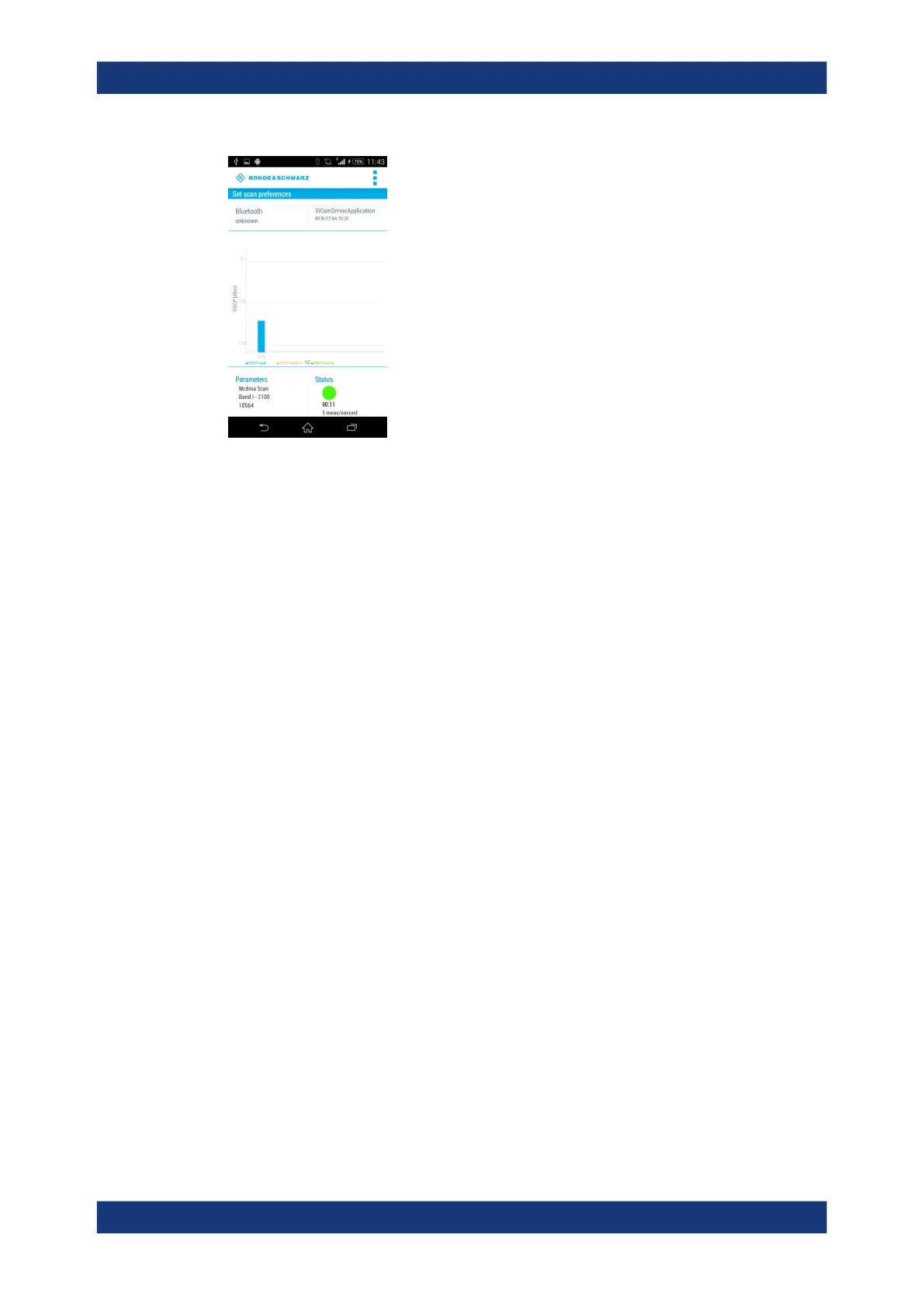

Figure B-8: WCDMA Scan Result View
Below the graph the measurement preferences and the status are displayed.
Parameters
Displays the configured preferences for the WCDMA scan.
Status
Displays the measurement duration and the measurement rate. The status button dis-
plays the following colored states.
●
Green
The measurement is running and measurement data are received.
●
Yellow
The measurement is running but no measurement data are received.
●
Red
The measurement was stopped.
► To stop the scan, use "Stop scan" in the menu inflator in the top-right corner.
B.3.4 LTE top signal scan
B.3.4.1 LTE top signal preferences
To start an LTE scan, the following steps must be performed.
1. Choose a frequency band.
The minimum EARFCN of this band is set automatically.
