R&S TSMA6 - R&S TSMA6 with R&S TSMExxDC and R&S TSMA6-BP

Measurement Setup
R&S
®
TSMA6
78User Manual 4900.8057.02 ─ 11
Additional devices like R&S TSME6 and R&S TSMExxDC can also be mounted to the
side.

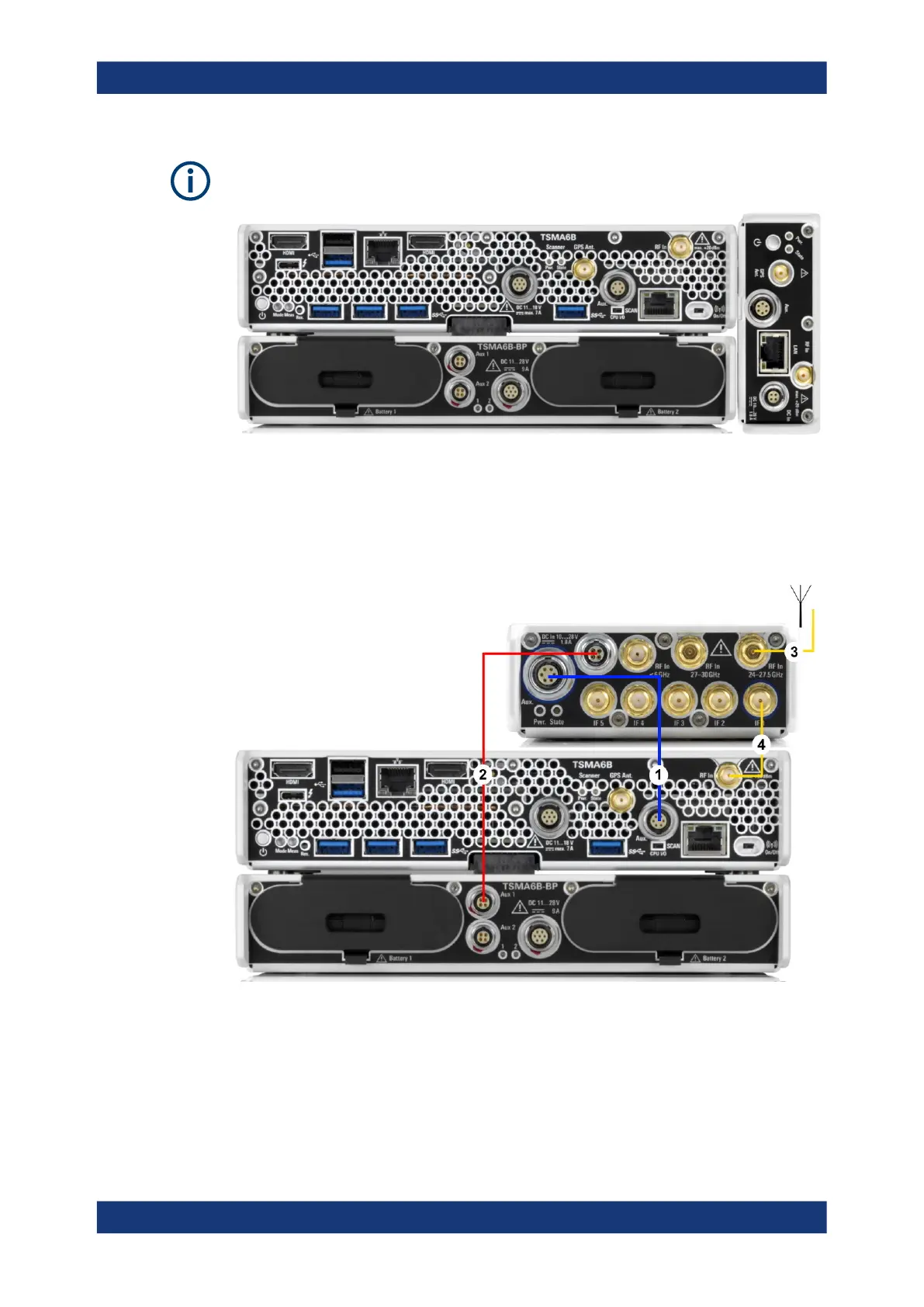

Figure 7-18: Example: R&S TSMA6 with R&S TSME6 mounted to the side
7.2.2 R&S TSMA6 with R&S TSMExxDC and R&S TSMA6-BP
Figure 7-19: R&S TSMA6 + R&S TSMExxDC
1 = Synchronization: R&S TSMA6 - R&S TSMExxDC
2 = DC power: R&S TSMA6-BP - R&S TSMExxDC
3 = RF: R&S TSMExxDC RF In 24 GHz to 27.5 GHz (R&S TSME30DC as example)
4 = RF: R&S TSMExxDC IF1 - R&S TSMA6 RF In
For the synchronization between R&S TSMA6 and R&S TSMExxDC, you need the
synchronization cable R&S TSME6-ZC2.
Use cases
