Troubleshooting
R&S
®
TSMA6
147User Manual 4900.8057.02 ─ 11
If you need to transport or ship the product, see Chapter 12, "Transporting",
on page 149.
11.15 No RF / GPS data
1. Check if the RF antenna is connected to the RF port.

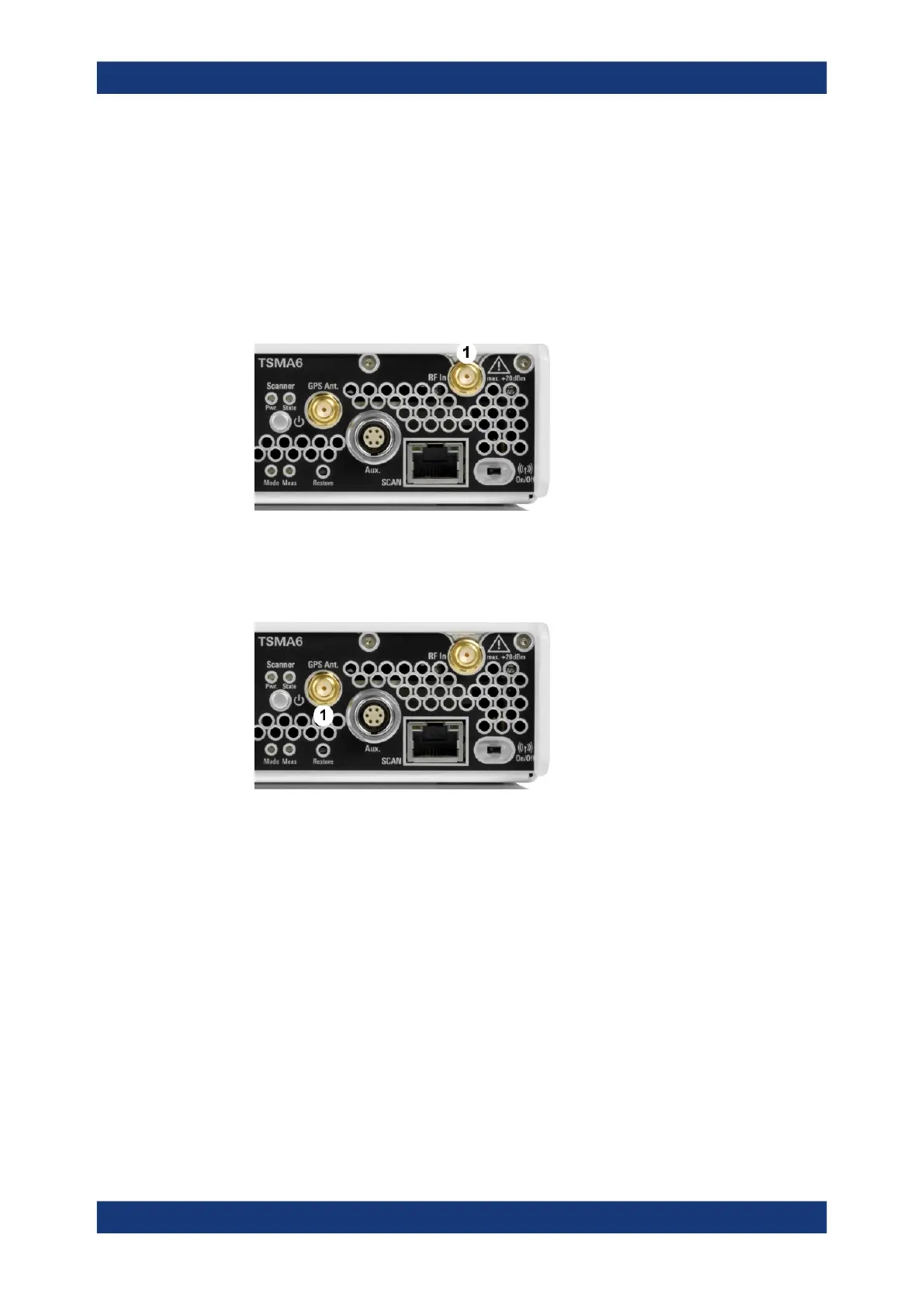

Figure 11-8: RF antenna connector
1 = RF port
2. Check if the GPS antenna is connected to GPS antenna input.
Figure 11-9: GPS antenna connector
1 = GPS antenna connector
Note: Only use the GPS antenna included in the scope of delivery.
3. Check if the LEDs indicate an error (see Chapter 11.1, "LED indicated errors",
on page 125).
4. Open the web GUI (Internet Explorer, URL: http://localhost) and change the "Mode
of Operation" to "PC Mode".
5. Start the "TSME Device Manager" via the Windows "Start" menu.
"Start > All Programs > TsmeTools > TsmeDeviceManager"
Check if there are any error messages in the "TSME Device Manager".
If errors are reported in the "Device Analysis Output" window, follow the instruc-
tions.
No RF / GPS data
