R&S TSMA6 User Manual

Measurement Setup
R&S
®
TSMA6
64User Manual 4900.8057.02 ─ 11

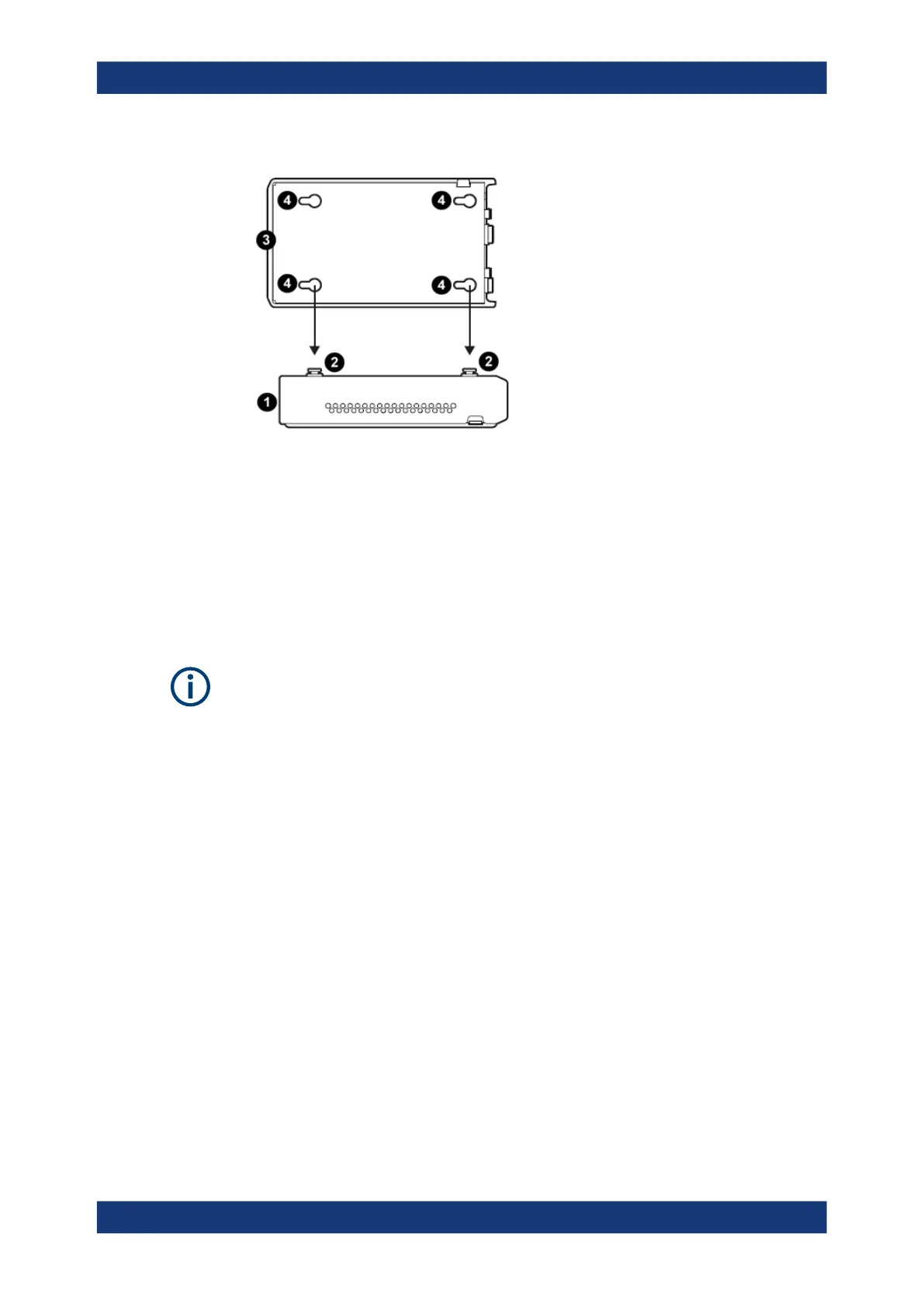

Figure 7-2: Aligning R&S TSMA6/6B and R&S TSME6
1 = R&S TSMA6/6B
2 = Connecting screws
3 = R&S TSME6
4 = Holes on the bottom pane of R&S TSME6
7.1.2 Connecting R&S TSMA6/6B with R&S TSMA6-BP
Before initial operation, the batteries must be fully charged without an R&S TSMA6
connected.
To connect the R&S TSMA6/6B with the R&S TSMA6, the following steps must be per-
formed.
To connect a battery pack
1. Remove the cover cap from the docking connector of the R&S TSMA6/6B.
Vibration-proofed stacking
