Measurement Setup
R&S
®
TSMA6
65User Manual 4900.8057.02 ─ 11
2. Screw the collar screws (standard accessory of R&S TSMA6-BP) on the top of the
R&S TSMA6 with a Torx 8 screw driver.
● Torque: 0.66 Nm ± 0.05 Nm

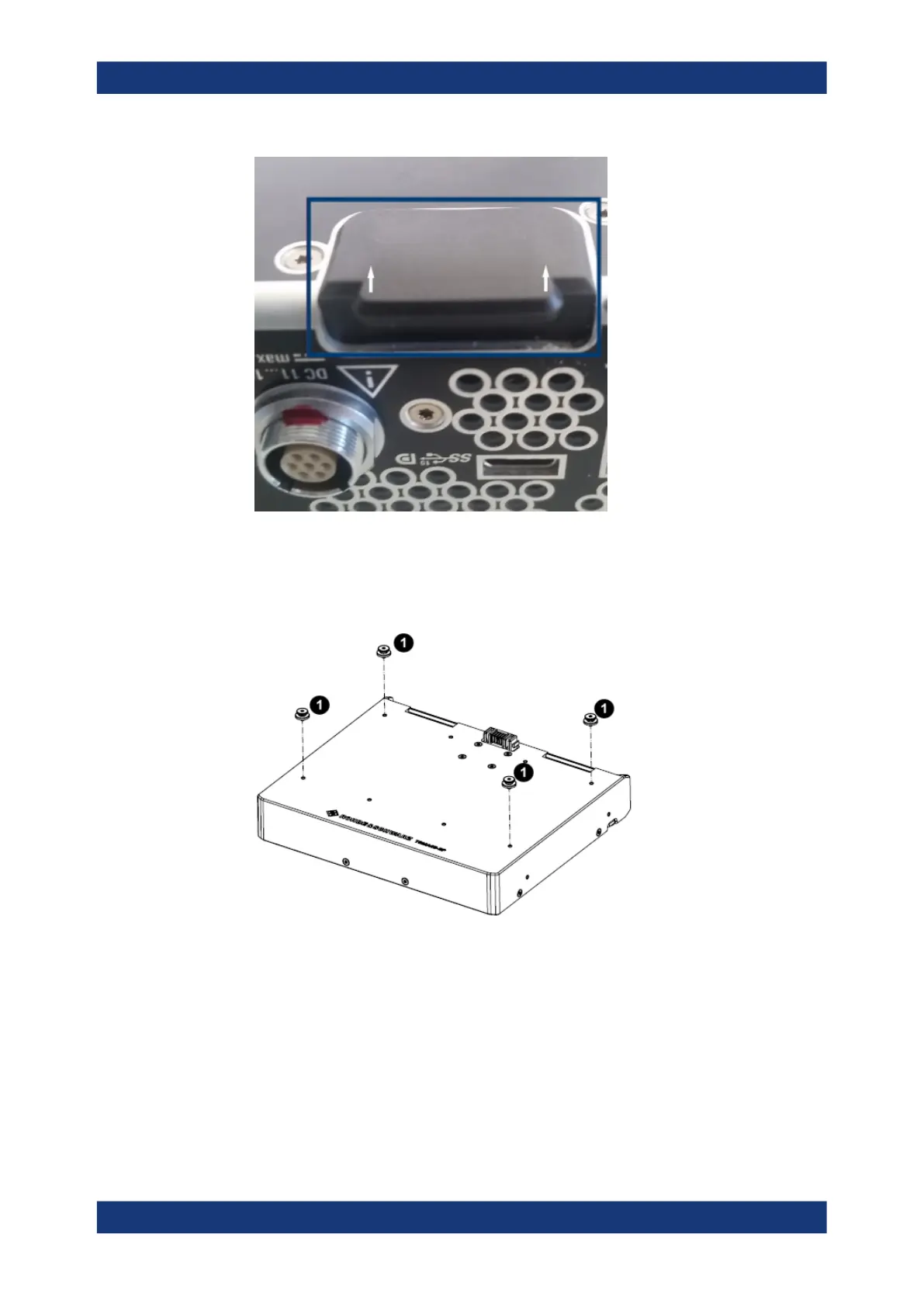

Figure 7-3: Collar screws
1 = Collar screws
3. Align the collar screws with the snap-in holes on the bottom of an R&S TSMA6/6B
and press the device down.
Vibration-proofed stacking
