y-axis
The y-axis displays the corresponding throughput value (kB/s)
The blue line shows the measured values. The orange line represents the visualized
average of all values.

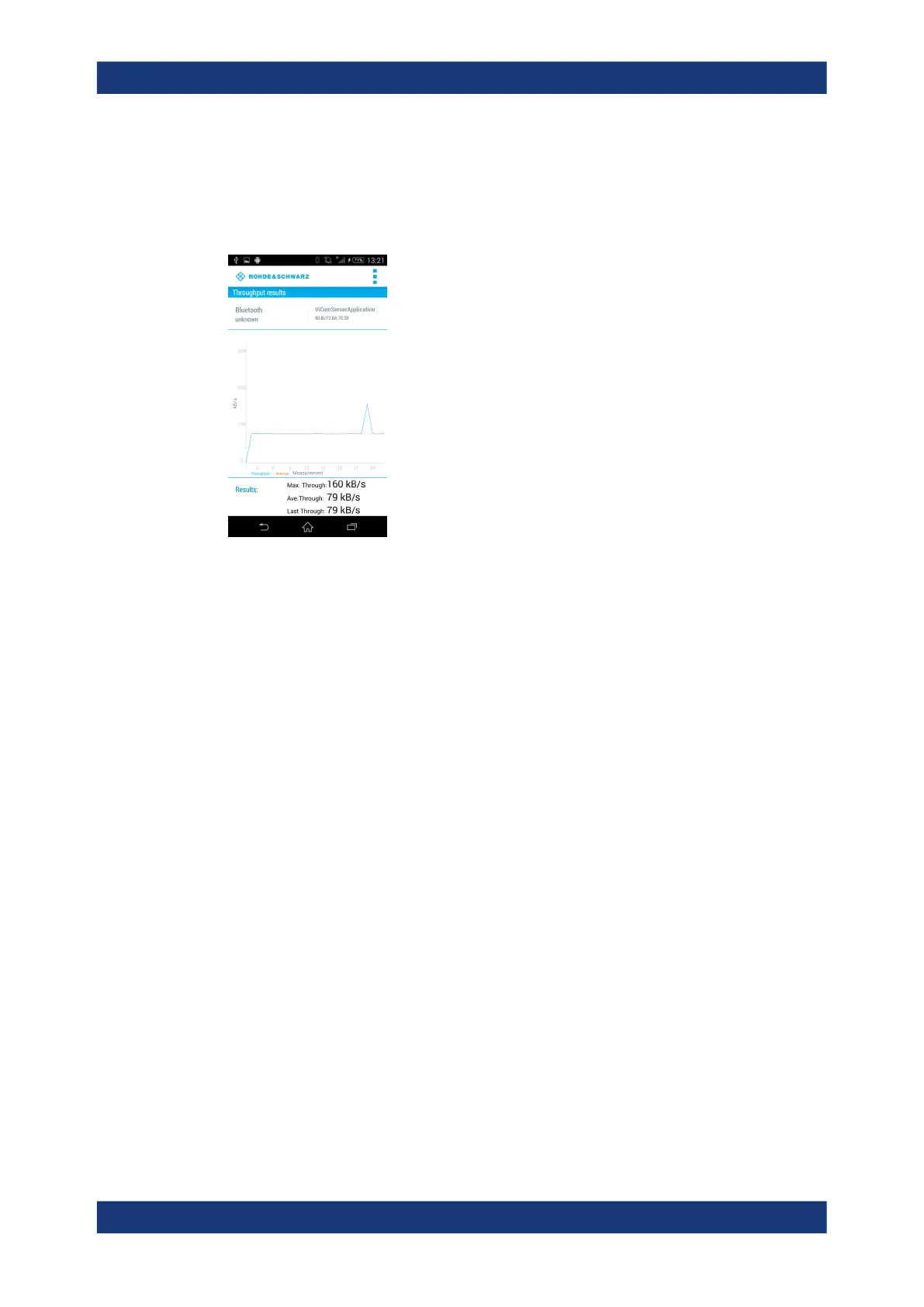

Figure B-12: Throughput Result View
Below the graph the following throughput results are displayed.
Results
●
Max. Through
Displays the maximum throughput
●
Ave. Through
Displays the average throughput
●
Last Through
Displays the current throughput
► To stop the scan, use "Stop scan" in the menu inflator in the top-right corner.
B.3.6 RF power scan
B.3.6.1 RF power scan references
To start an RF power scan, the following steps must be performed.
1. Specify the parameters "Start Frequency (in Mhz)" and "End Frequency (in Mhz)"
to define the frequency range of the RF power scan.
The maximum range is from 350 MHz to 4.400 MHz.
Usage
