Ensure that the polarity is correct (see Figure 3-1).

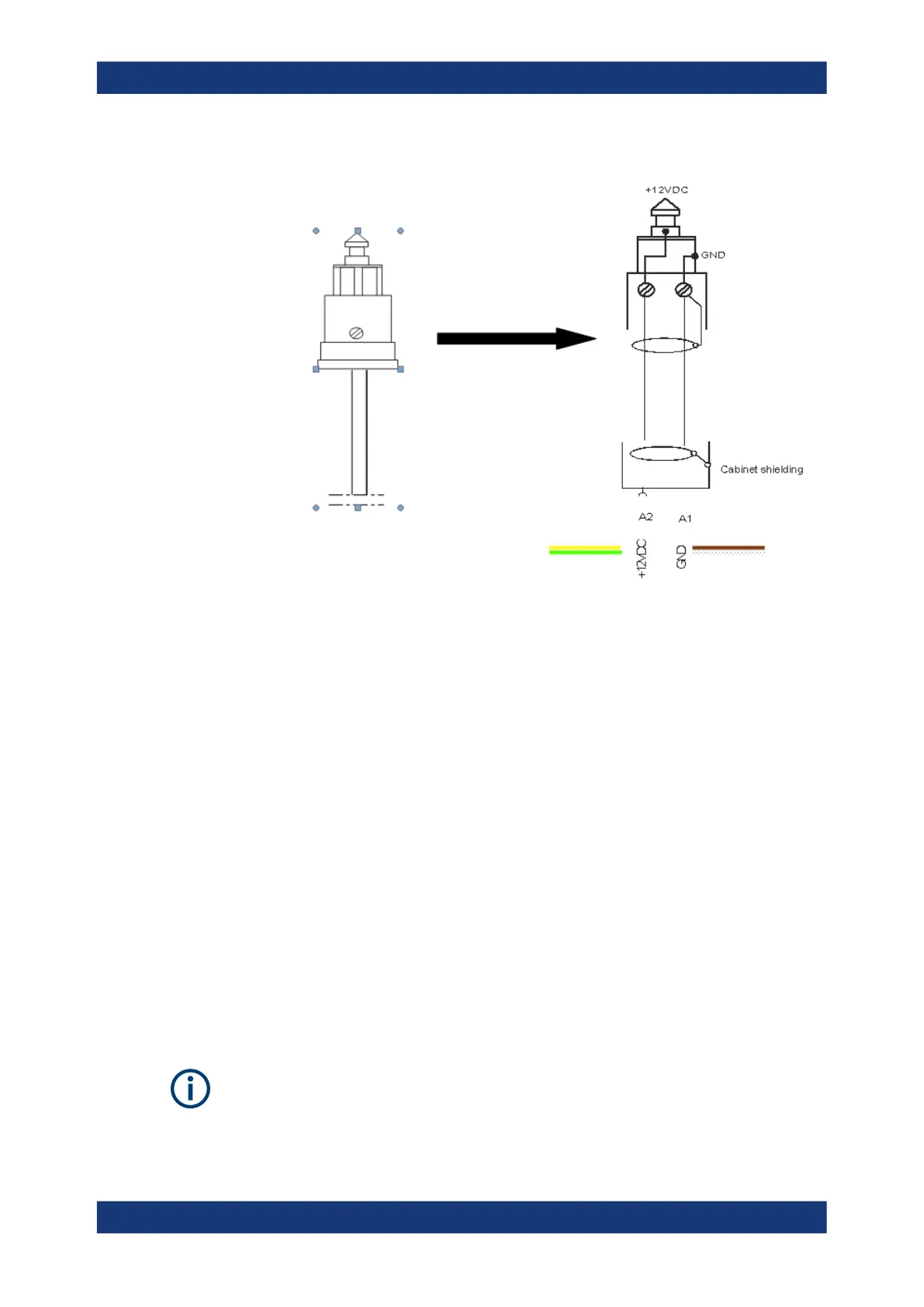

Figure 3-1: Supplied power cable with cigarette lighter adapter
+12 V DC = green/yellow cabling
GND = brown/white cabling
3.1.7.3 Connecting to an AC power supply
If you operate the product with an external power supply, you can use it indoors only in
pollution degree 2 environments where nonconductive contamination can occur. Suita-
ble AC power supplies are listed in the data sheet. They differ in the output power:
●
R&S TSMA6-Z1 has an output power of 105 W and is suitable for multiple R&S
TSMx products.
1. Ensure that the required ratings listed in the data sheet are matched.
2. Connect the round connector to DC IN.
3. Insert the AC power plug into a power outlet with ground contact.
3.1.7.4 Connecting to a battery pack
You can use the R&S TSMA6-BP battery pack as power supply.
If the R&S TSMA6 is not used for more than one day, remove the batteries from R&S
TSMA6-BP to prevent discharge. For details, see the manual of the R&S TSMA6-BP
battery pack.
