7.2.3 R&S TSMA6 with R&S TSMExxDC, R&S TSME6 and R&S TSMA6-
BP

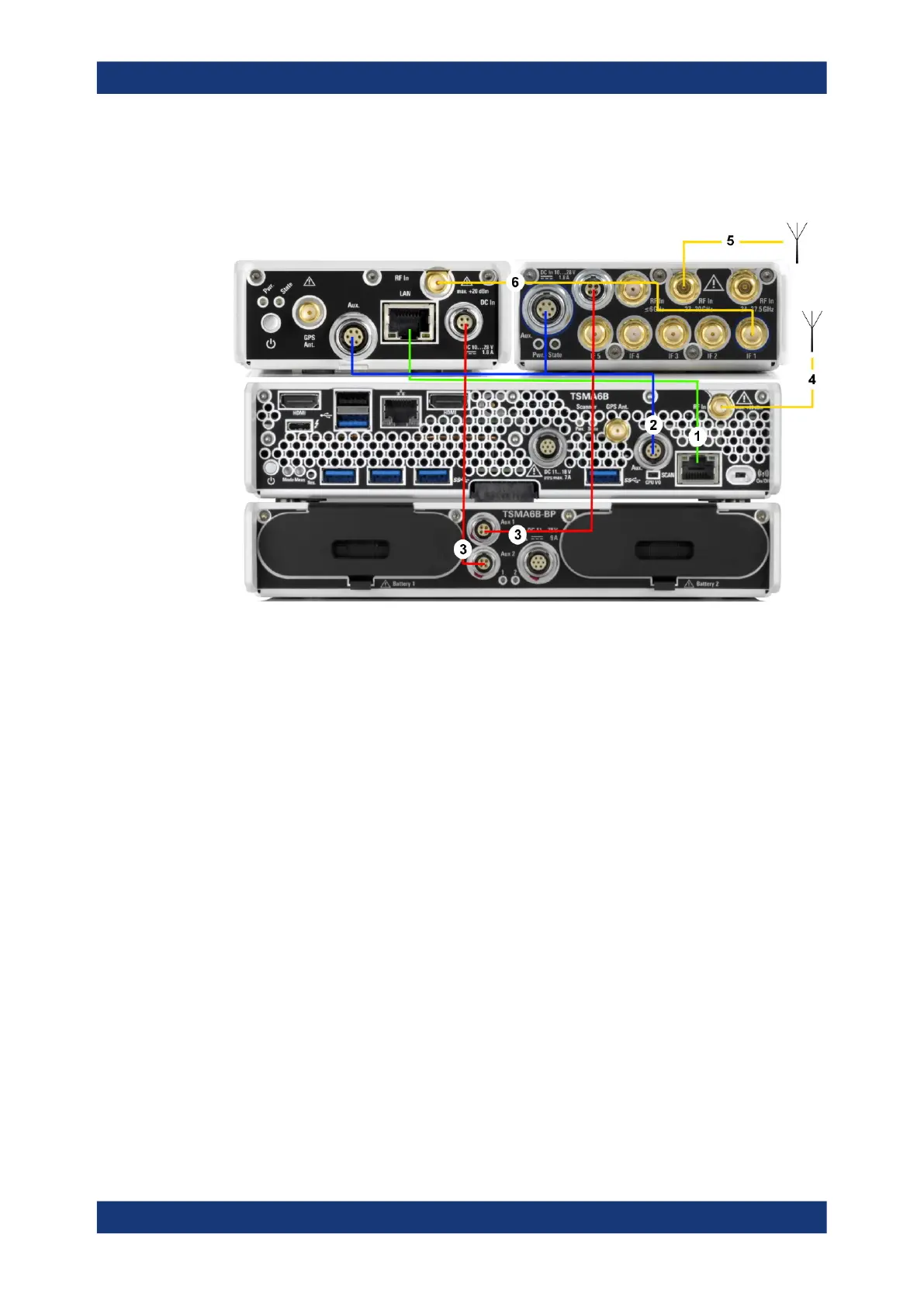

Figure 7-21: R&S TSMA6 + R&S TSMExxDC + R&S TSME6
1 = LAN connection: R&S TSMA6 - R&S TSME6
2 = Synchronization: R&S TSMA6 - R&S TSME6 / R&S TSMExxDC
3 Aux 1 = DC power: R&S TSMA6-BP - R&S TSMExxDC
3 Aux 2 = DC power: R&S TSMA6-BP - R&S TSME6
4 = RF: R&S TSMA6 RF In < 6 GHz
5 = RF: R&S TSMExxDC RF In 27 GHz to 30 GHz
6 = RF: R&S TSMExxDC IF1 - R&S TSME6 RF In
For the LAN connection between R&S TSMA6 and R&S TSME6, you need LAN cable
of type CAT6.
For the synchronization between R&S TSMA6 and R&S TSMExxDC / R&S TSME6,
you need the synchronization cable R&S TSME6-ZC4, which is required for 3 and
more devices.
For the DC power between R&S TSMA6-BP and R&S TSME6 / R&S TSMExxDC, you
need two times the power cable R&S TSMA6-BPPT. Alternatively you can use the dual
power cable R&S TSMA6-B2T. It connects the R&S TSMExxDC and R&S TSME6 via
Aux1 of the R&S TSMA6.
