3. Click "Start scan" to start the scan.
B.3.2.2 GSM scan results
The GSM scan result graph displays one column for each channel selected. The height
of a column represents the RSSI value (in dBm).

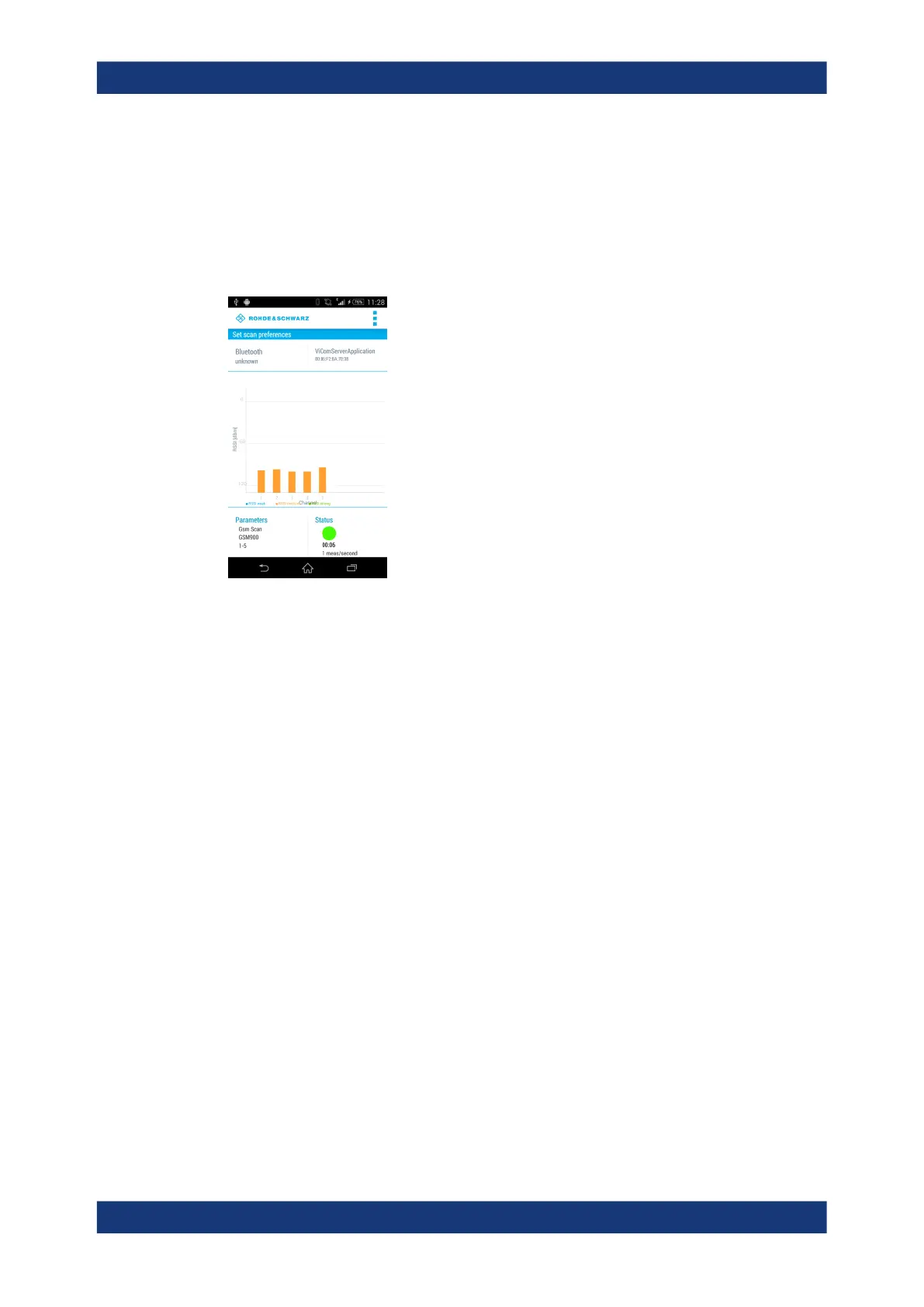

Figure B-6: GSM Scan Result View
Below the graph the measurement preferences and the status are displayed.
Parameters
Displays the configured preferences for the GSM RSSI scan.
Status
Displays the measurement duration and the measurement rate. The status button dis-
plays the following colored states.
●
Green
The measurement is running and measurement data are received.
●
Yellow
The measurement is running but no measurement data are received.
●
Red
The measurement was stopped
► To stop the scan, use "Stop scan" in the menu inflator in the top-right corner.
Usage
