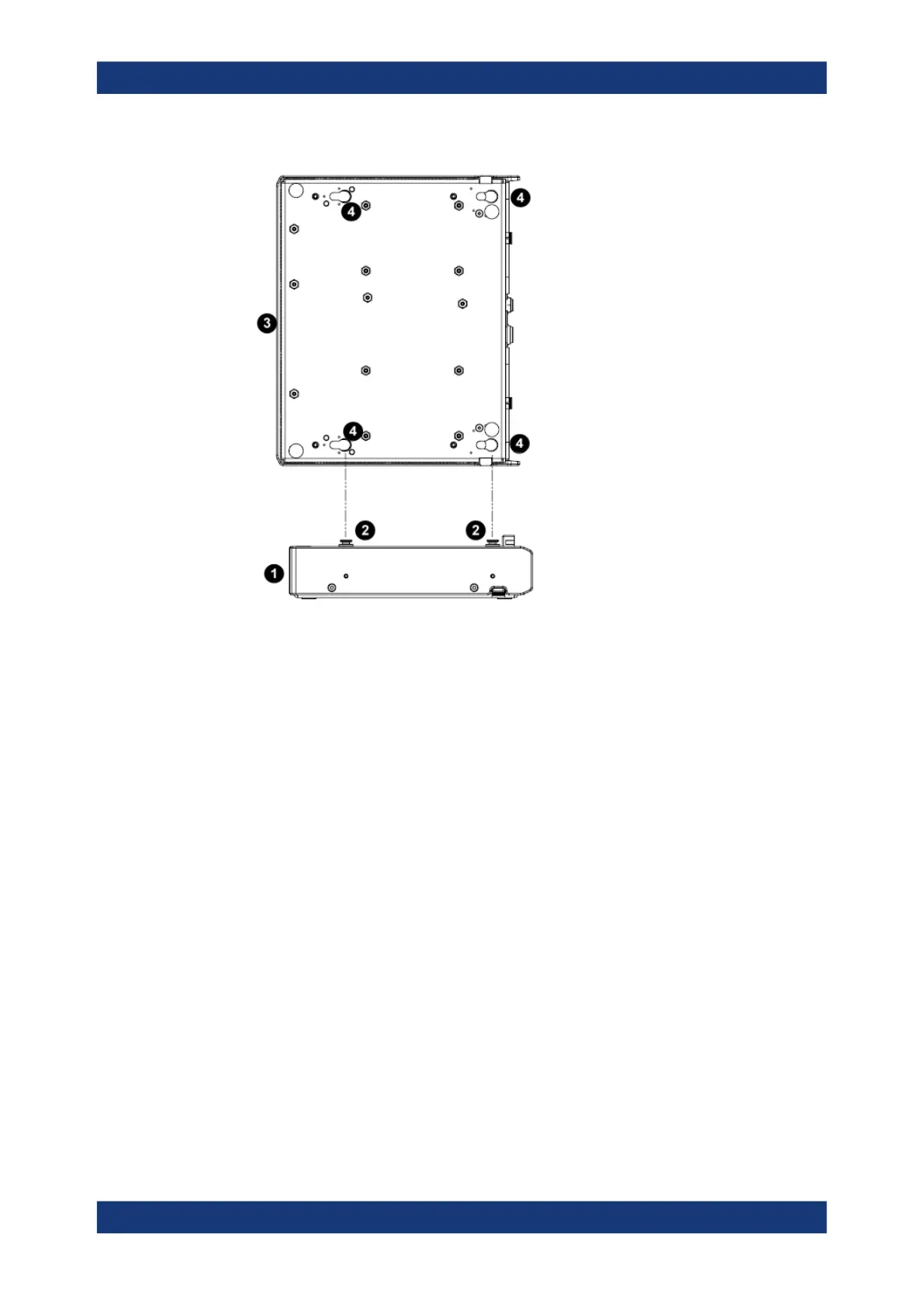

Figure 3-3: Aligning R&S TSMA6-BP and R&S TSMA6/6B
1 = R&S TSMA6-BP
2 = Collar screws
3 = R&S TSMA6/6B
4 = Snap in holes on the bottom pane of R&S TSMA6/6B
4. Move the R&S TSMA6/6B to the rear side (2) until you hear a click when the collar
screws are locked in.
