10-10 Requirements to the Mains Connection Rexroth IndraDrive
DOK-INDRV*-SYSTEM*****-PR02-EN-P

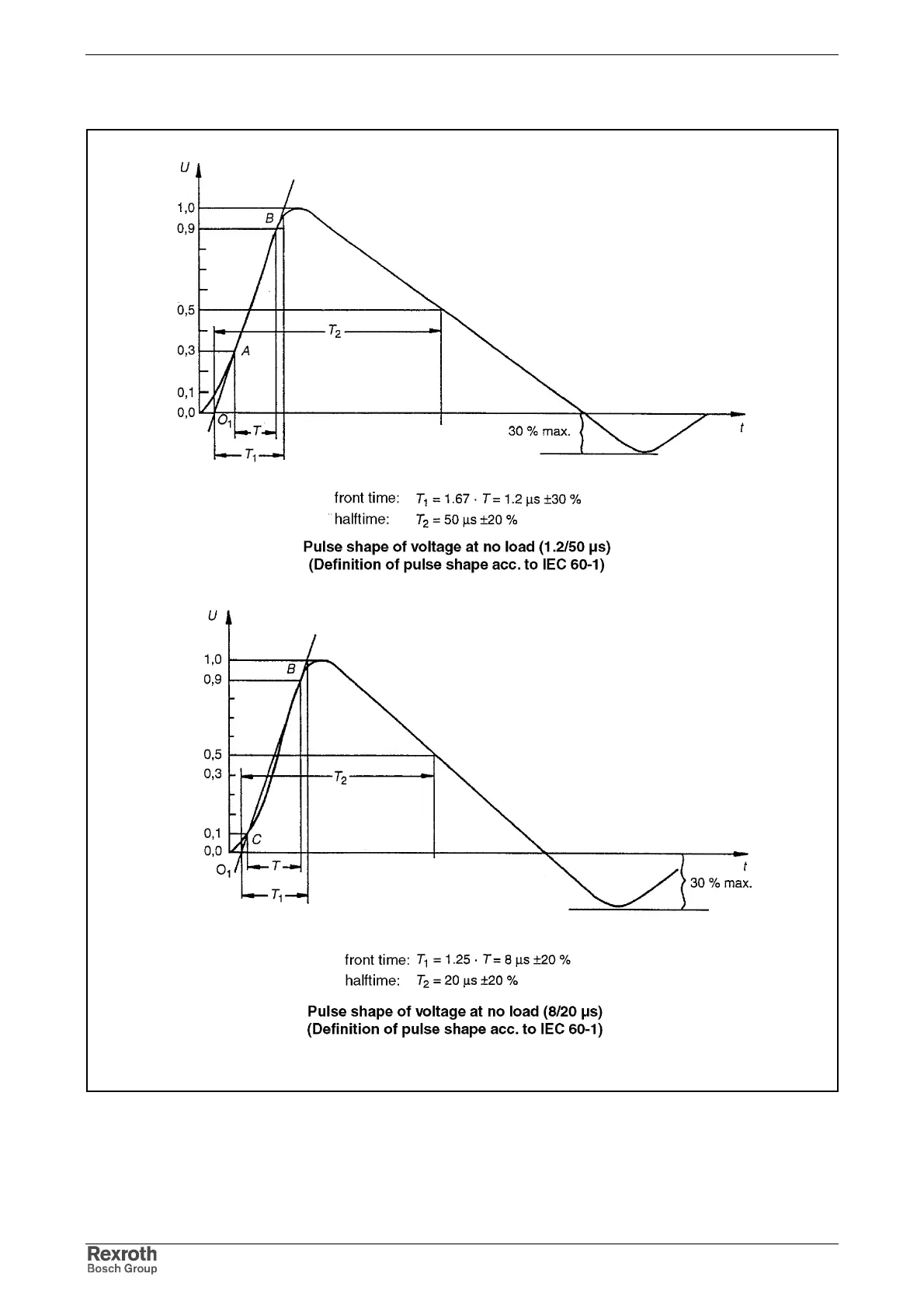

The figure below illustrates the voltage pulse.
DK000075v01_en.tif
Fig. 10-19: Impulse withstand voltage 1,2/ 50µs and 8/ 20 µs according to EN
61000
If higher overvoltage values can occur in the application, measures for
limitation of the values have to be taken in the electrical equipment of the
machine or installation.
