12-4 Connections of the Components in the Drive System Rexroth IndraDrive
DOK-INDRV*-SYSTEM*****-PR02-EN-P
Connection to Equipment Grounding System in Control
Cabinet
erdungslasche_hmv
12
1: joint bar
2: connection point for connection to equipment grounding system in control
cabinet

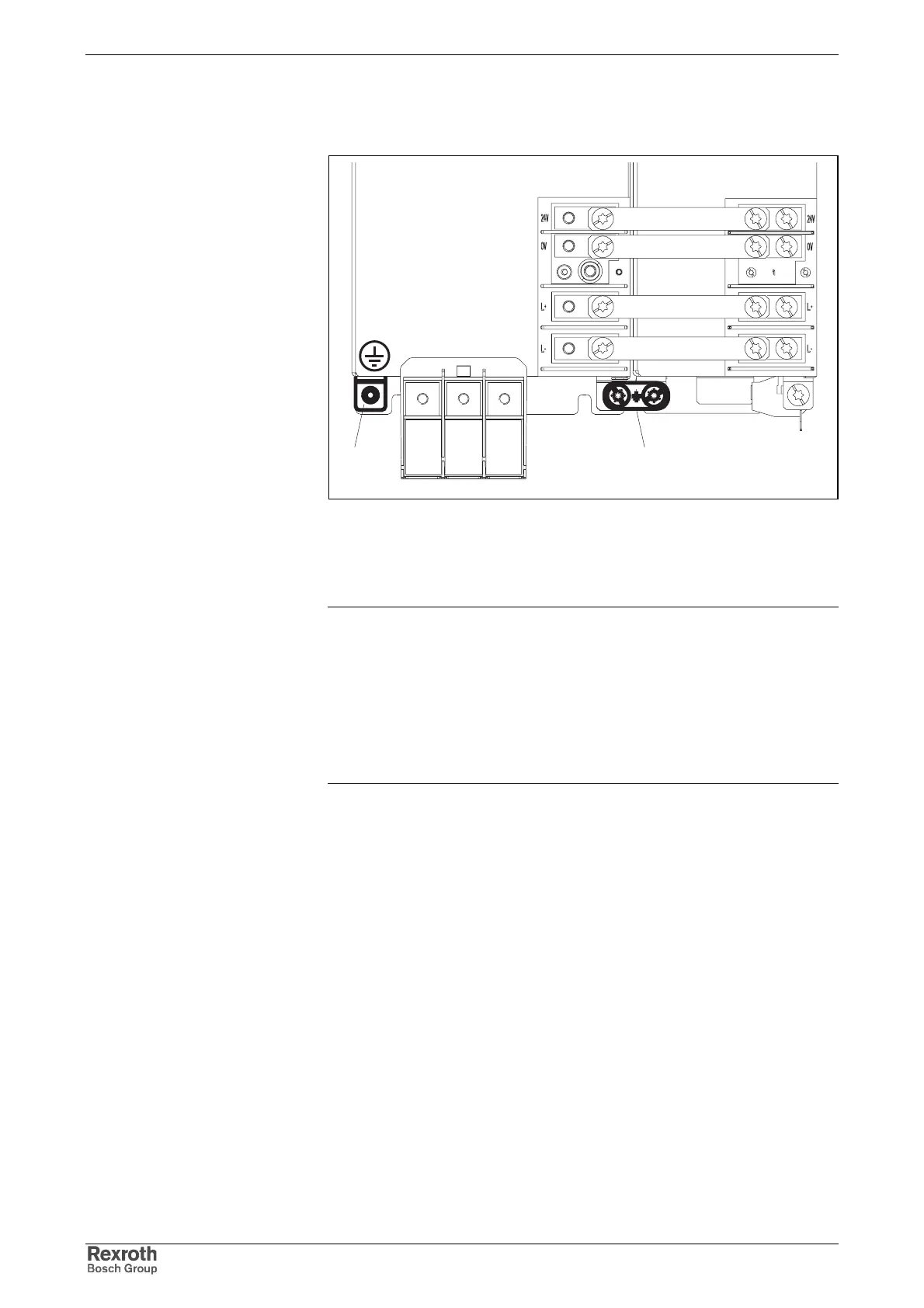

Fig. 12-4: Equipment grounding connections
Note: Provide sufficient cross sections of the lines for connecting the
equipment grounding conductor of the device to the equipment
grounding system in the control cabinet.
If lines are used for the equipment grounding connections,
they must have a cross section of at least 10 mm2 for
HCS03.1E drive controllers and HMV01 supply units (however
not smaller than the supply feeder cross section). For
HCS02.1E drive controllers choose the cross section at least
as big as for the supply feeder.
