REXROTH IndraDrive C User Manual

Rexroth IndraDrive Connections of the Components in the Drive System 12-7
DOK-INDRV*-SYSTEM*****-PR02-EN-P

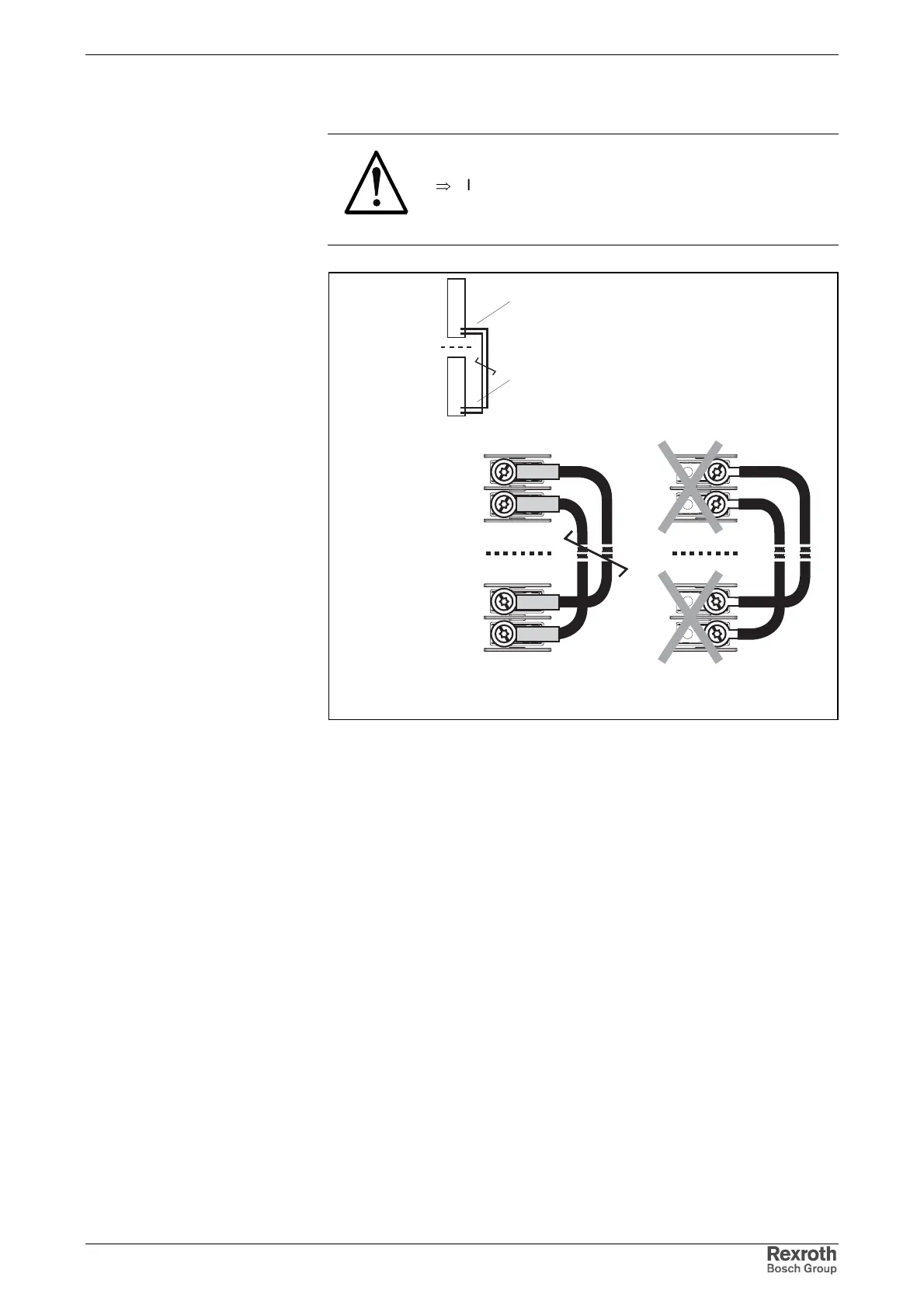

Cable Routing to the Right
CAUTION
Damage caused by voltage arcing!
⇒ Insulate ring terminals and connecting lines with a
heat-shrinkable sleeve. Afterwards only strip the
insulation of the contact surface of the ring terminal.
DC bus nach rechts_1f4.fh7
correct incorrect
device 1
(DC bus connection)
device 2
(DC bus connection)
device 1
(DC bus connection)
device 2
(DC bus connection)
Fig. 12-7: DC bus connections for cable routing to the right

REXROTH IndraDrive C Specifications

General

Protection Class	IP20
Voltage Range	200 V to 480 V
Input Voltage	200 to 480 VAC
Control Modes	Speed, Torque, Position
Communication Interfaces	PROFIBUS, CANopen, Ethernet
Feedback Systems	Resolver, incremental encoder, absolute encoder
