REXROTH IndraDrive C - Page 235

Rexroth IndraDrive Accessories in the Drive System Rexroth IndraDrive 14-39
DOK-INDRV*-SYSTEM*****-PR02-EN-P
Mounting Shield Connection HAS02.1-004-NNN-NN to
Drive Controller HCS03.1E-W0070
1. By means of supplied screws, fasten shield angle steel to bottom of
drive controller.
2. Fix support to shield angle steel as required.
hrau
shield angle steel
support
clip
methode of installation,
for the motor cable selectable
MZZU0012EN00.FH9
PE

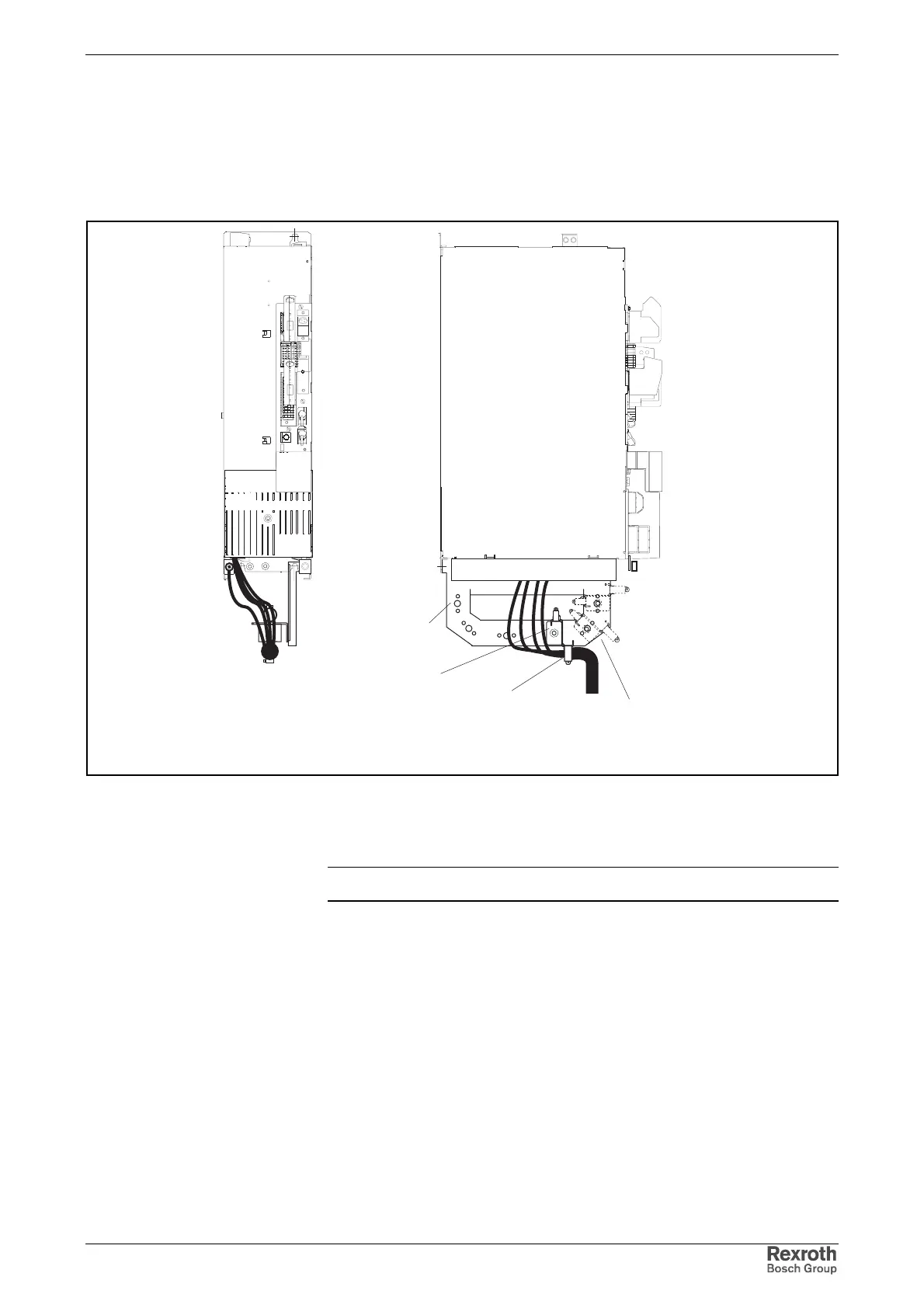

Fig. 14-36: Shielding plate HAS02.1-004-NNN-NN at the bottom of the drive
controller HCS03.1E-W0070
3. Fix shield of motor cable to shielding plate with a clip.
Note: Adapt the size of the clip to the motor cable cross section.
