Mounting the HAS04 Accessories
WARNING
Dangerous contact voltage at device housing!
Lethal electric shock!
⇒
Connect HMx01 drive controllers to the HCS02 drive
controller by means of bus bar 2 (see figure below).
Bus bar 2 replaces the equipment grounding
connection 3 at HMx01 (see figure below) to the
equipment grounding system.
1 mounted HAS04 accessories with connection to L+ and L-
2 mounted bus bar
3 equipment grounding connection at HMx01

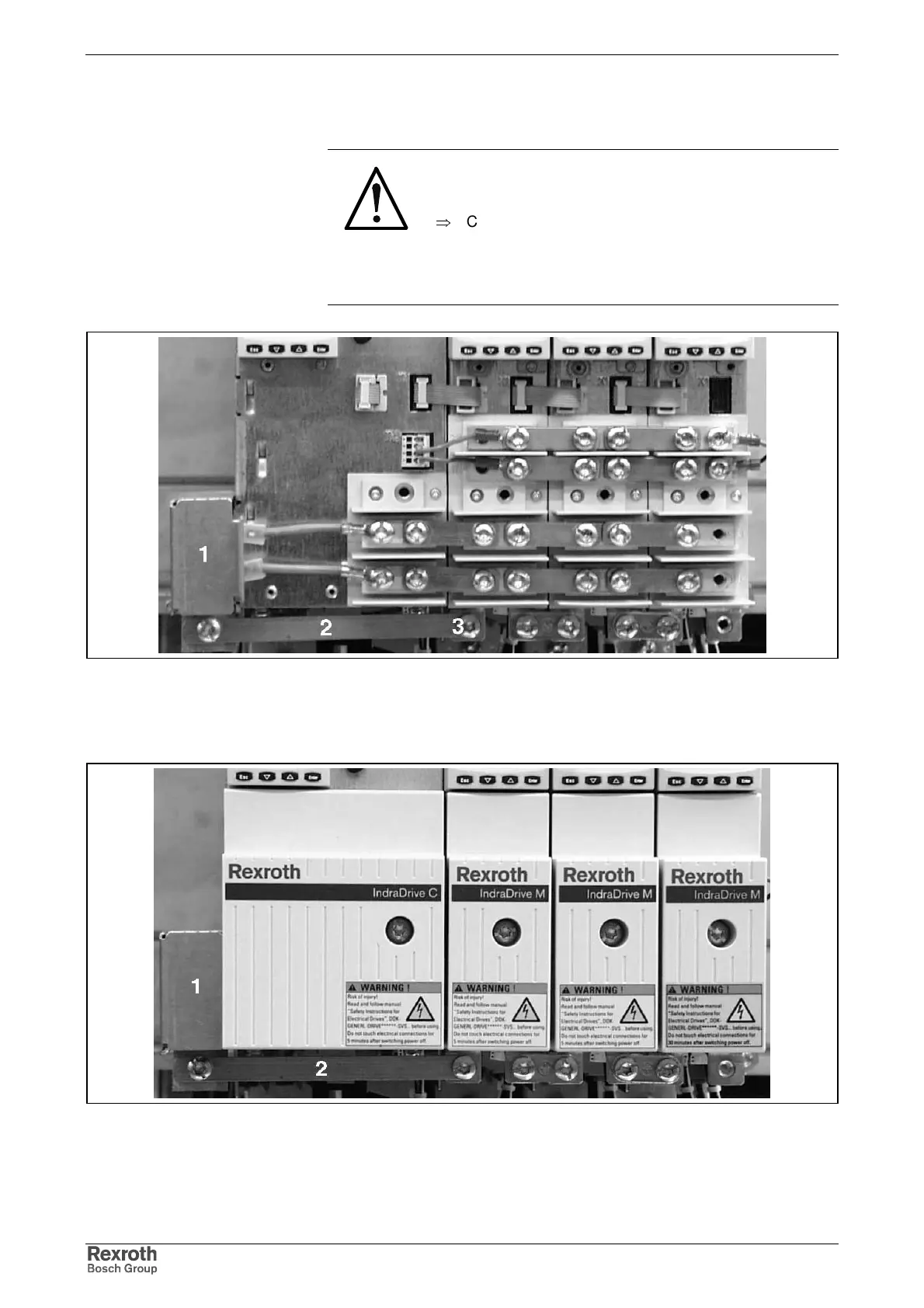

Fig. 14-50: HAS04.1 at drive system HCS02 with HMx01 without touch guard
1 mounted HAS04 accessories
2 mounted bus bar
Fig. 14-51: HAS04.1 at drive system HCS02 with HMx01 with touch guard
