Rexroth IndraDrive Accessories in the Drive System Rexroth IndraDrive 14-53
DOK-INDRV*-SYSTEM*****-PR02-EN-P
14.6 Accessories HAS05.1
Type Code HAS05.1
DT000015v01_en.FH9
1234 6789
1
05 1234 6789
2
05 1234 6789
3
05 1234 6789
4
05
Example:
Abbrev.
Column
HAS05 . 1- 001 -NNN-NN
1. Product
1.1 HAS. . . . . . . . = HAS
2. Line
2.1 Cable, connectors
and adapter . . . . . . . . = 05
3. Design
3.1 1 . . . . . . . . . . . . . . . . . . . . . . = 1
4. Assignment
4.1 adapter: HCS03.1E-W0070 . . . . = 001
4.2 adapter: HMF01.1...0070 . . . . . . = 002
4.3 adapter: Level emulation
Encoder emulation . . . . = 003
5. Other features
5.1 none . . . . . . . . . . . . . . . . . . . . . . . . . . . . = NNN
6. Other design
6.1 none . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = NN
to field 4. Assignment
Adapter: "001"
Adapter: "002"
L1L2L3PE
L1 L2 L3 PE
Adapter: "003"

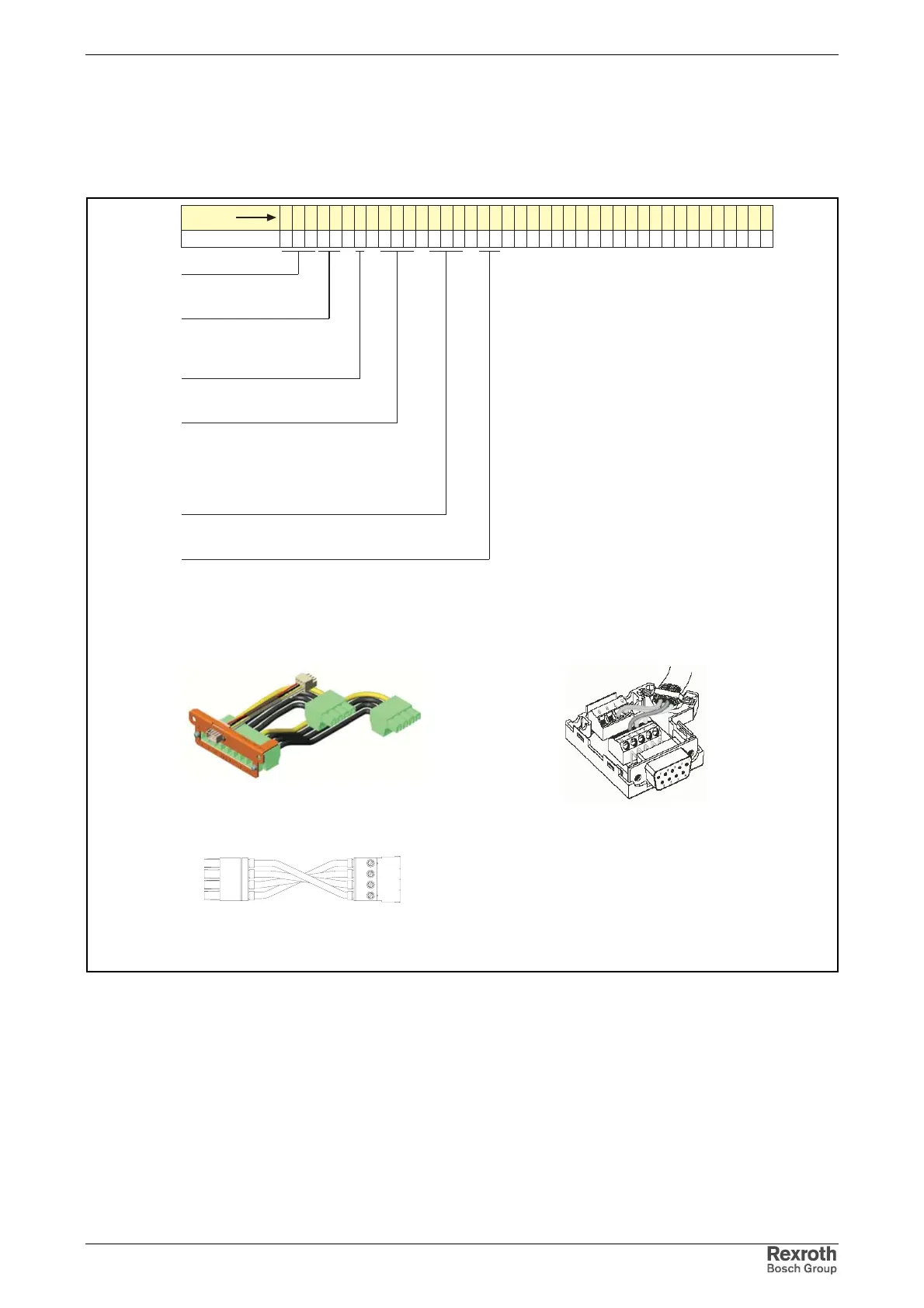

Fig. 14-52: Type code HAS05.1
