14-56 Accessories in the Drive System Rexroth IndraDrive Rexroth IndraDrive
DOK-INDRV*-SYSTEM*****-PR02-EN-P
14.7 Accessories for Connection Technique
Fiber Optic Cable Connections
There are accessories available to connect drive controllers to the
peripherals via fiber optic cables.
H3
ERROR
3
2
1
X10 TX
H3
ERROR
3
2
1
X10 TX
H3
ERROR
3
2
1
X10 TX
H3
ERROR
3
2
1
X10 TX
AP5127F1.FH7
fiber optic cable ring
CNC
SERCOS
interface
1
23
1: fiber optic cable connections outside of control cabinet
2: control cabinet duct
3: fiber optic cable connections inside of control cabinet

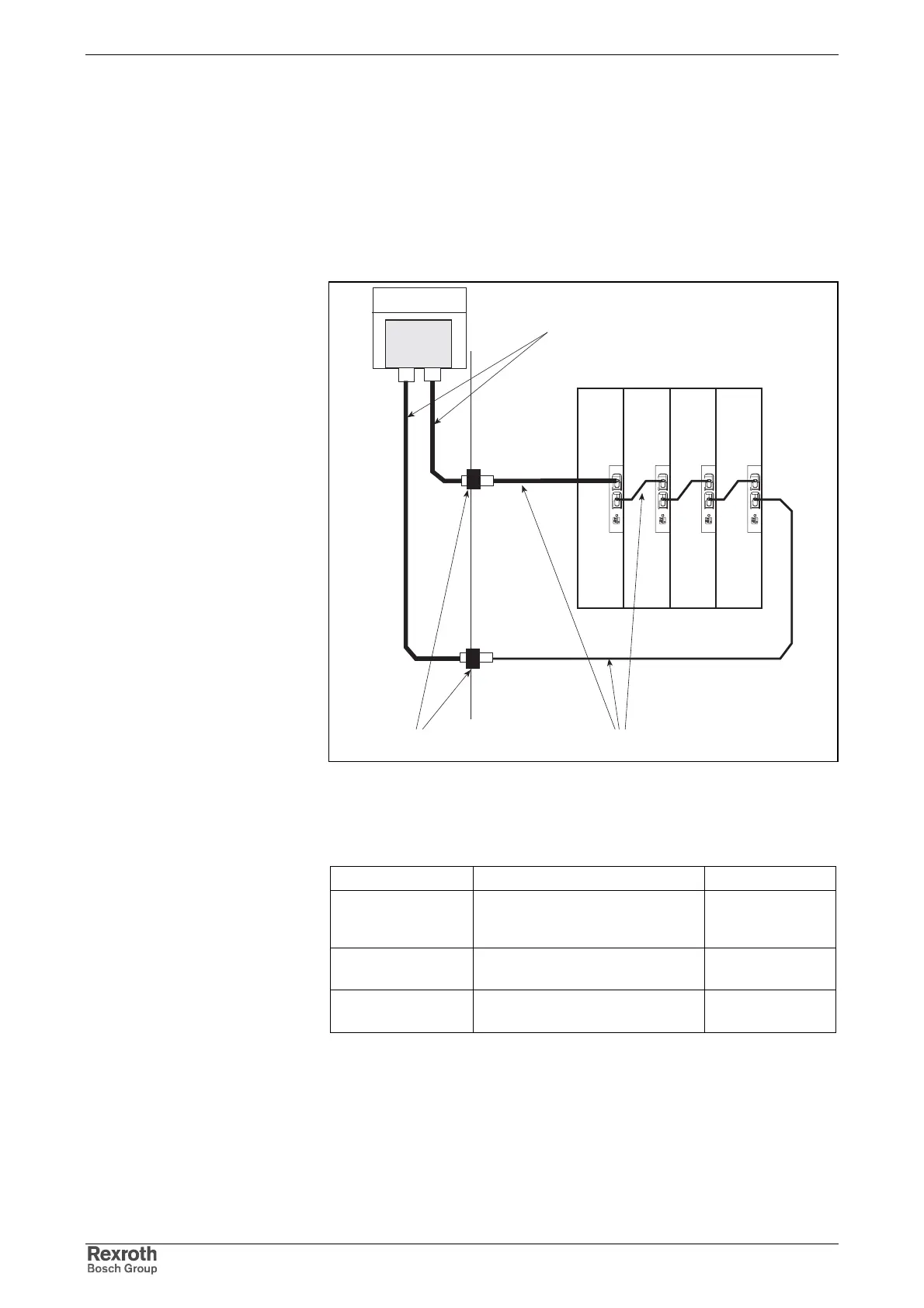

Fig. 14-57: Fiber optic cable connections
Installation location Description Type designation
outside of control
cabinet
robust fiber optic cable
connections from peripherals to
control cabinet
RKO 0101
at control cabinet
control cabinet duct with plug-in
connector
INS 0610
inside of control
cabinet
fiber optic cable connections to
and between drive controllers
RKO 0100
Fig. 14-58: Fiber optic cable connection elements
