Rexroth IndraDrive Accessories in the Drive System Rexroth IndraDrive 14-57
DOK-INDRV*-SYSTEM*****-PR02-EN-P
Note: For ordering the fiber optic cable connection you have to
generate the complete order code containing details on type
and length.
For the type designation please see the above table and add
the required length to it.
Determine the length by means of the list of different device
arrangements.
Example: Order code for arrangement HCS02 (left 105 mm) next to
HCS02 (right 65 mm):
• required length: 0.25 m
• type designation: RKO 0100
• order code RKO 0101 / 0,25
Interconnection of Drive Controllers
For selecting the fiber optic cable connection of drive controllers take
different possible combinations and different device widths into account.
Combination of HCS02 and HCS02
lwl_hcs02_hcs02
H3
ERROR
3
2
1
H3
ERROR
3
2
1
HCS02
HCS02
lwl_hcs02_hcs02.EPS

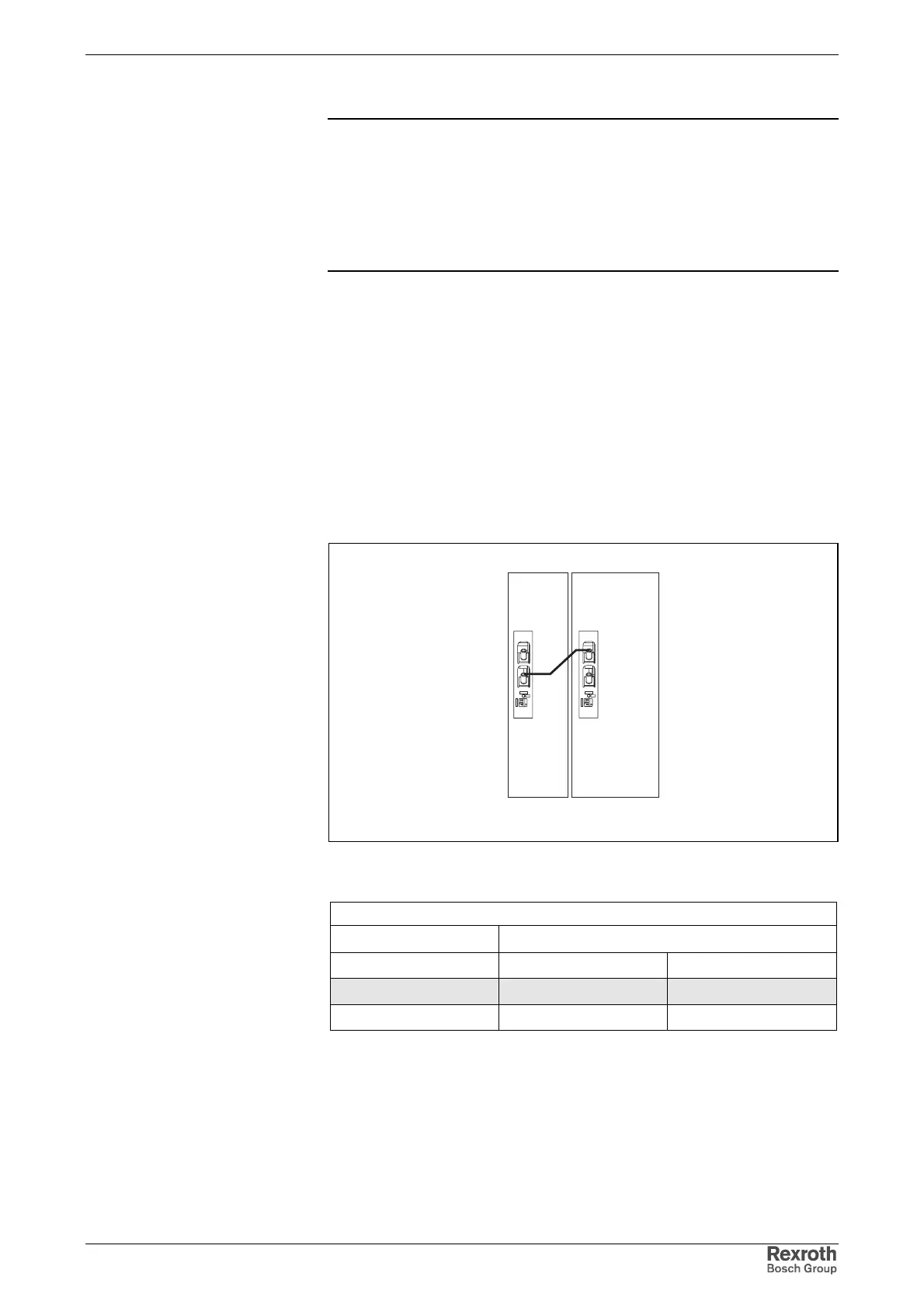

Fig. 14-59: HCS02 with HCS02
Required fiber optic cable length [m]
Width left HCS02 [mm] Width right HCS02 [mm]
65 105
65 0,15 0,15
105 0,25 0,25
Fig. 14-60: Fiber optic cable lengths
