14-58 Accessories in the Drive System Rexroth IndraDrive Rexroth IndraDrive
DOK-INDRV*-SYSTEM*****-PR02-EN-P
Combination of HCS02 to the Right of HMS or HMD
lwl_hcs02_hms_l
H3
ERROR
3
2
1
H3
ERROR
3
2
1
HCS02
HMS
HMD

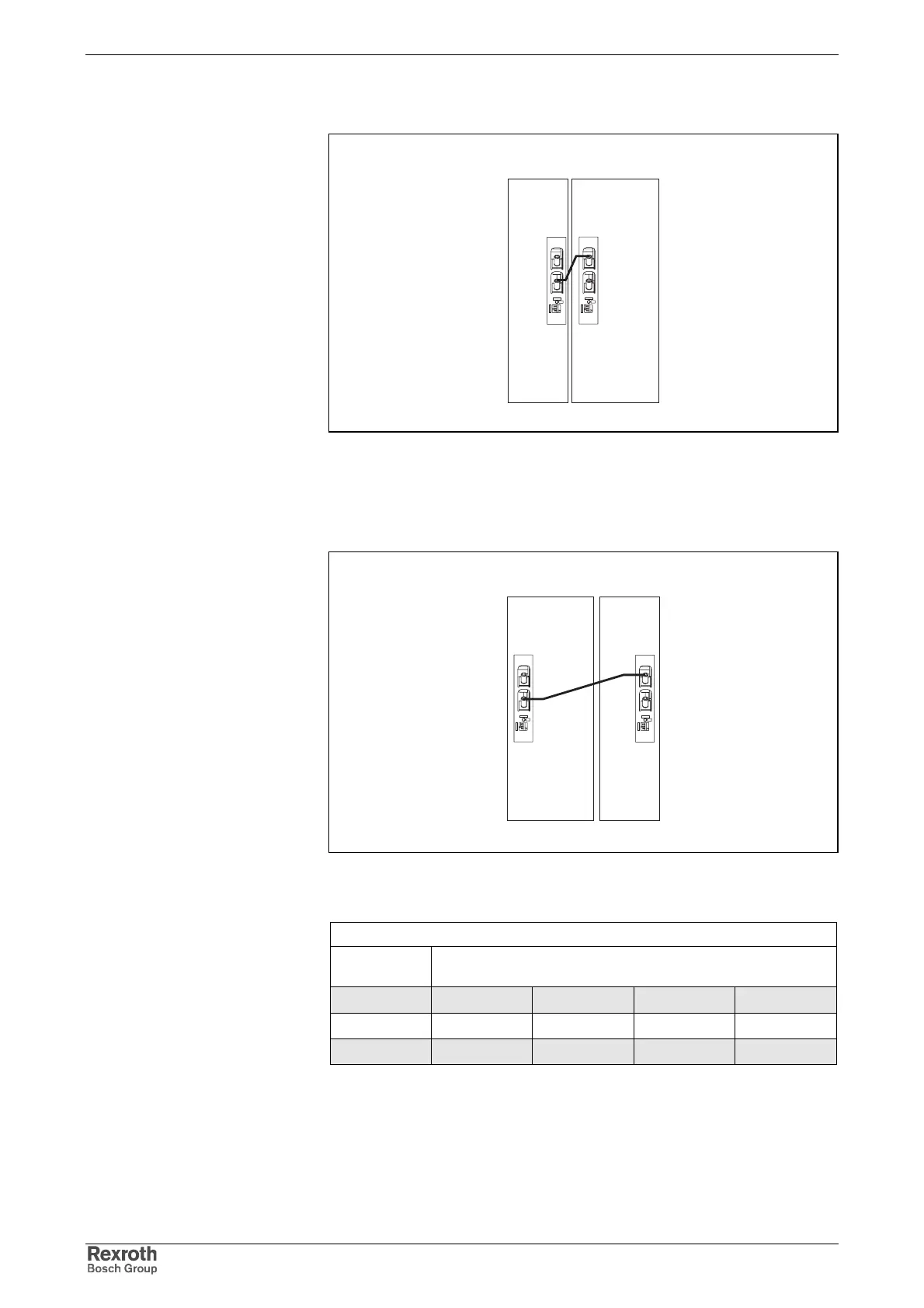

Fig. 14-61: HCS02 to the right of HMS or HMD
Independent of the width of the devices, cable length is 0.15 m.
Combination of HCS02 to the Left of HMS or HMD
lwl_hcs02_hms_r
H3
ERROR
3
2
1
H3
ERROR
3
2
1
HCS02
HMS
HMD
Fig. 14-62: HCS02 to the left of HMS or HMD
cable length = width HCS02 + width HMS/HMD + 10 cm
Required fiber optic cable length [m]
Width
HCS02 [mm]
Width HMS / HMD [mm]
50 75 100 125
65 0,25 0,25 -- --
105 0,25 0,30 0,30 0,30
Fig. 14-63: Fiber optic cable lengths
