BRP-Rotax
REPAIR MANUAL
NNOOTTEE
The oil seal for shaft can also be installed from outside to inside if the crankshaft
is installed.

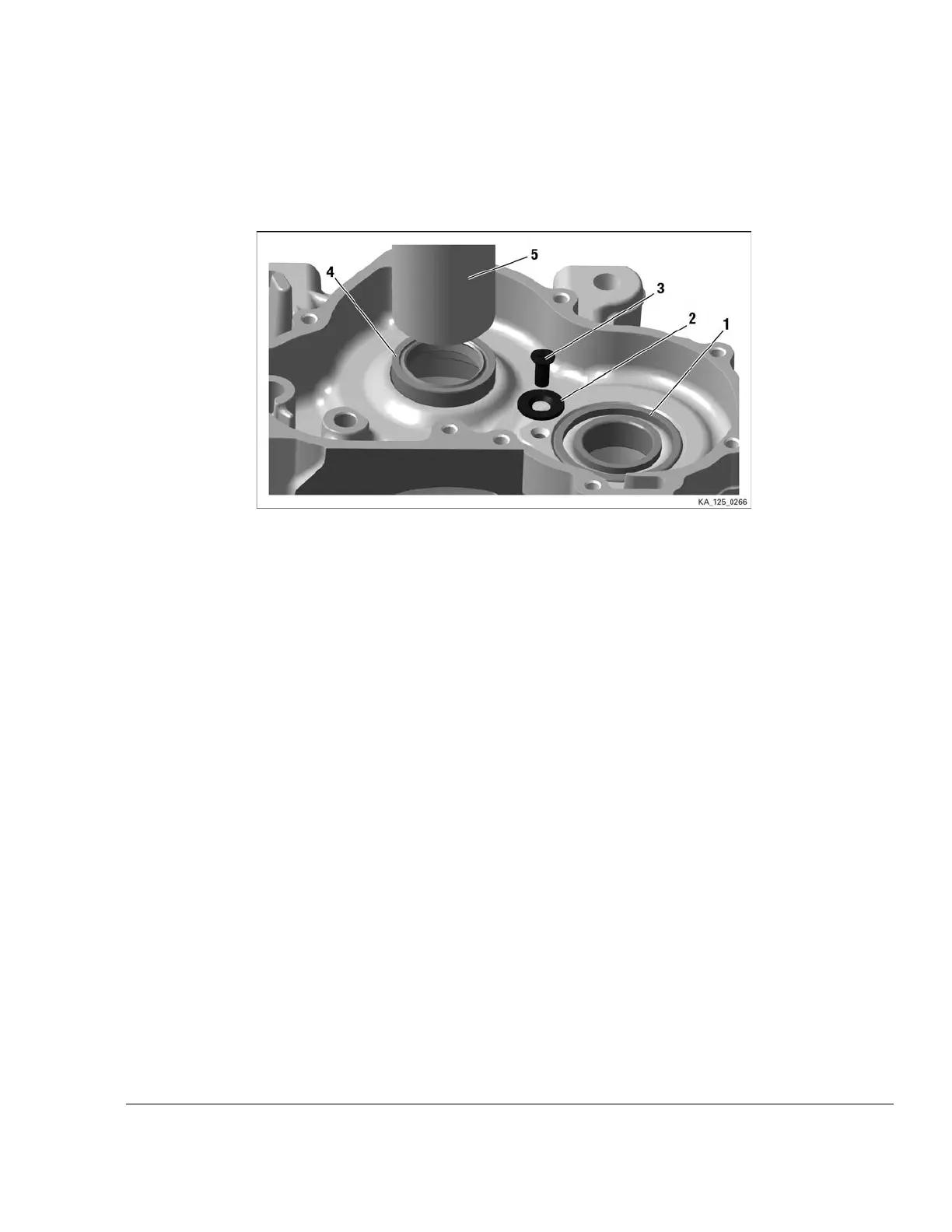

Figure 5.29: Ball bearing, oil seal
1
Ball bearing 6005
2 Thrust washer
3 Countersunk screw M5x12 4 Oil seal AS 28x38x7
5
Insertion sleeve (part no. 676010)
______________________________________________________
Instruction See Figure: Insertion jig.
6. Rotate crankcase half.
7. Slide the ball bearing (1) of the crankshaft into the crankcase half to the limit stop so the
closed side of the cage is facing to the crankshaft.
8. Grease the two oil seals for shaft (10x26x7) with MOLYCOTE 111 in the area of the sealing
lip.
9. Press in the first oil seal for shaft to the limit stop with the Insertion jig (3) (part no. 676021)
so the closed end of the oil seal (2) for shaft is visible.
10. Grease the installed oil seal for shaft with MOLYCOTE 111.
11. Press in the second oil seal for shaft to the limit stop with the installation tool (8) (part no.
676021) so the open end of the oil seal (4) for shaft is visible.
12. Allow the crankcase halves to cool in this position.
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 5
Page 33
