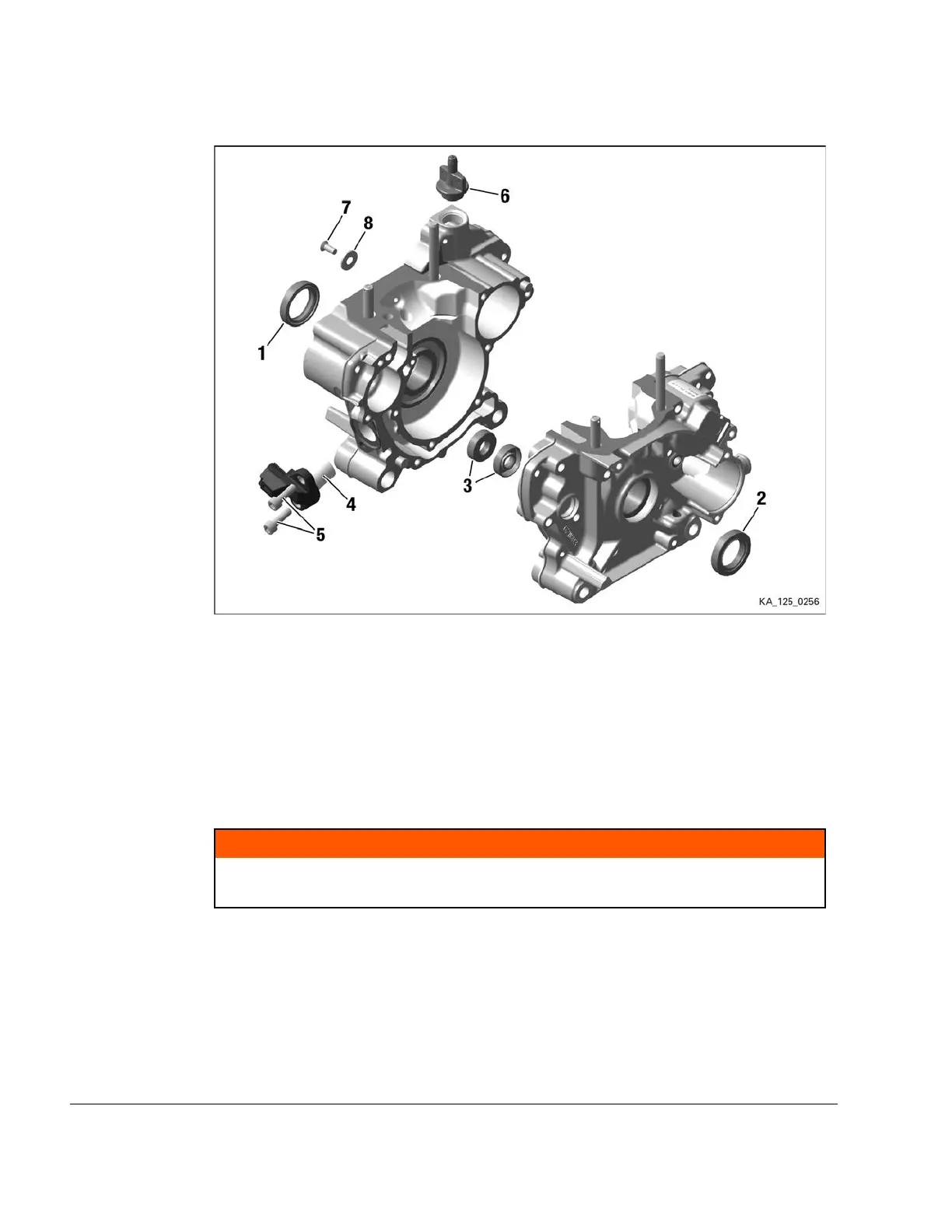

Figure 5.9: Bearing and oil seal for shaft
1 Oil seal AS 28x38x7 2 Oil seal AS 25x38x7
3 Oil seal A 10x26x7 4
Pick up sensor
5 Allen screw M6x20 6 Air vent screw M18x1.5
7 Countersunk screw M5x12 8 Thrust washer
______________________________________________________
m WARNING
Danger of severe burns and scalds!
Wear heat-resistant gloves during this process!
Clutch end case half
Instruction See Figure: Clutch end case half.
7. Remove case half (1) from the convention oven and drop onto a flat wood board. This re-
leases the ball bearing (2) of the crankshaft and the ball bearing (3) from the case.
8. Invert the case half and remove the needle bushing (5) with the installation tool (4).
Chapter 5
Page 12
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
