REPAIR MANUAL

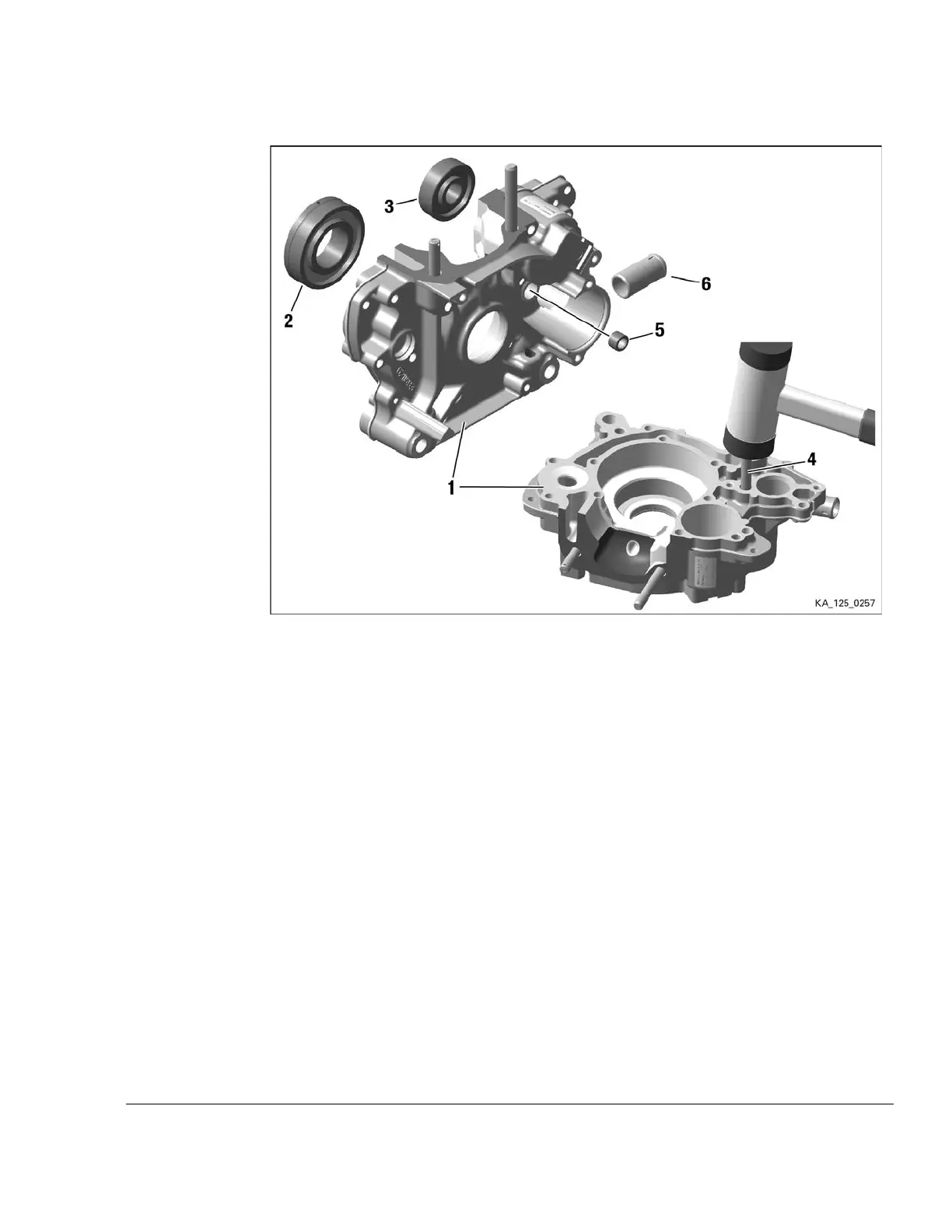

Figure 5.10: Clutch end case half
1
Crank case assy.
2
Ball bearing 6206
3
Ball bearing 6302
4
Installation tool part no. 676030
5
Needle bushing 8x12x8
6 Tube
______________________________________________________
Ignition end case half
NNOOTTEE
The wooden board must have cutouts for the two dowels (1) and the locating pin
(2) to form a flat base for the case half.
If it is necessary to replace the locating pin (2), it can be removed from the hot
case with a pipe wrench.
Instruction See Figure: Ignition side crankcase.
9. Remove case half (3) from the convection oven and drop onto a flat wood board with the
case split pane. This removes the ball bearing (4,5) from the crankshaft and the balance
shaft.
10. Allow both crankcase halves to cool to room temperature (20 °C) (274 °F).
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 5
Page 13
