Sirius 800 Series User Manual General Switcher Protocol (SW-P-02) Nucleus Router Control Modules 14.7
Iss 5 Rev 7 Page 285 © 2017 SAM
14.7.1.2 Sirius 840
• Main video inputs and outputs are 1 - 576
• Outputs 16370* = Monitor row 1
• Outputs 16371* = Monitor row 2
• Outputs 16372* = Monitor row 3
• Outputs 16373* = Monitor row 4
• Mon Row Sources 0 - 575* = outputs 0 - 575*
• Mon Row Sources 576* - 1151* = inputs 0 - 575*
• Outputs 1153 - 1292 are multiviewer outputs

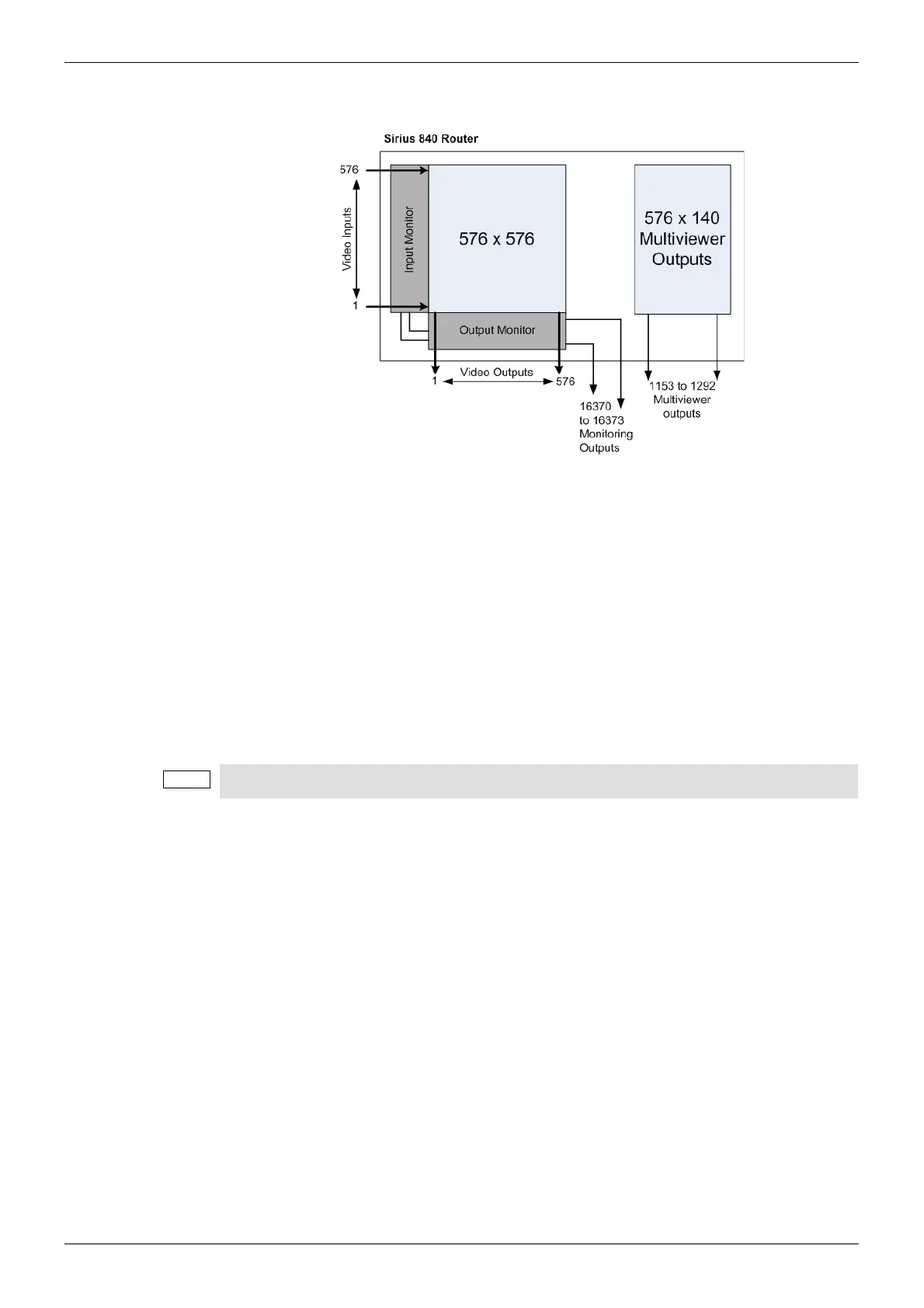

Figure 184 Sirius 840 Router Diagram
Note:
All numbers with an Asterisk (*) against them are Base 0.
