14.7.1.3 Sirius 850 (Single Frame with Optional Expansion Outputs)
Sirius 850 single router with optional expansion outputs:
• No expansion outputs used - Main video inputs and outputs are 1 - 576
Expansion outputs used - Main video inputs are 1 - 576 and outputs are 1 - 1152
• Outputs 16370* = Monitor row 1
• Outputs 16371* = Monitor row 2
• Outputs 16372* = Monitor row 3
• Outputs 16373* = Monitor row 4
•- No expansion outputs used
- Mon Row Sources 0 - 575* = outputs 0 - 575*
- Mon Row Sources 576 - 1151 = inputs 0 - 575*
•- Expansion outputs used
- Mon Row Sources 0 - 1151* = outputs 0 - 1151*
- Mon Row Sources 576 - 1151* = inputs 0 - 575*
• Single frame - Outputs 1153 - 1292 are multiviewer outputs

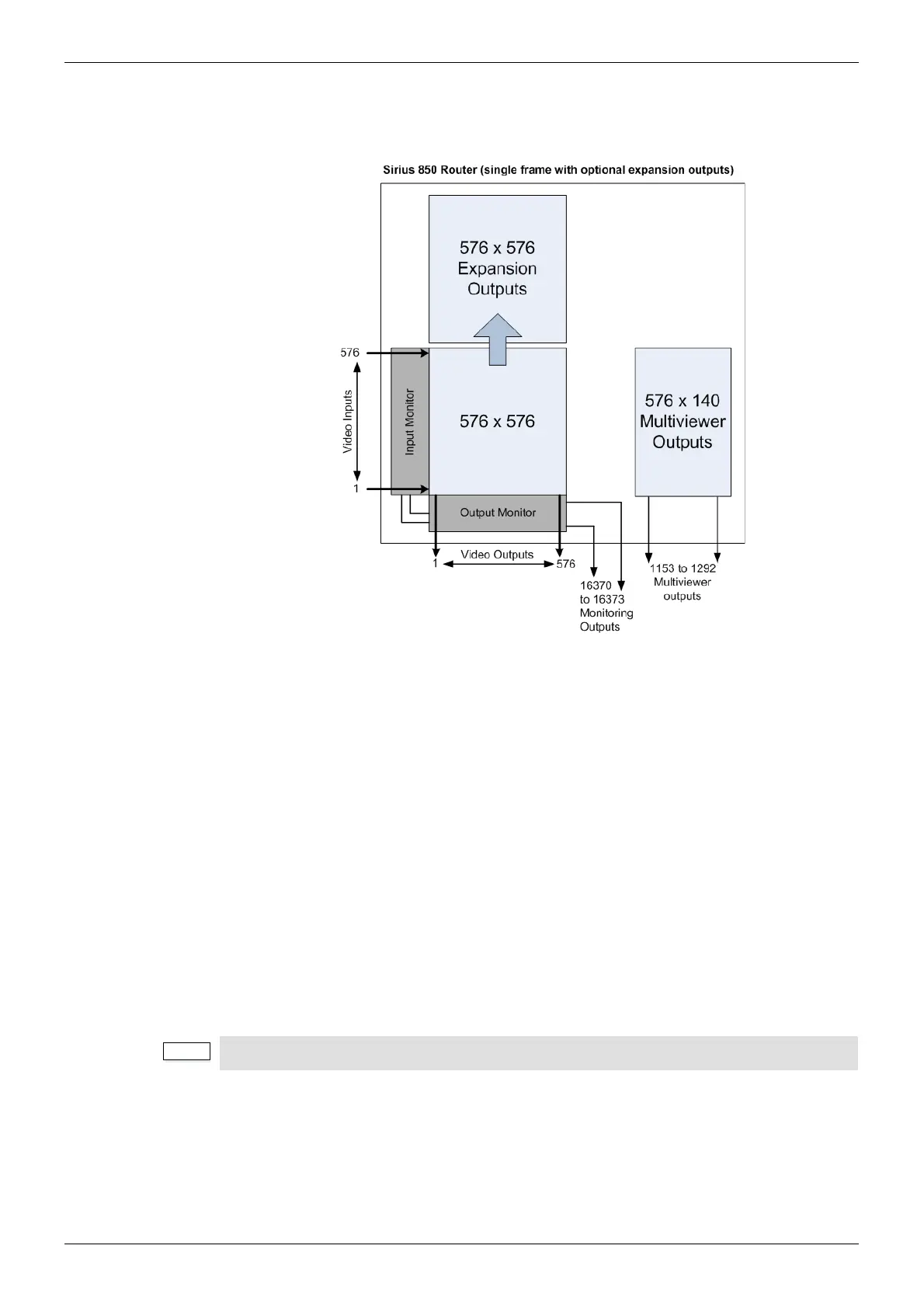

Figure 185 Sirius 850 Single Router Diagram
Note:
All numbers with an Asterisk (*) against them are Base 0.
