Sirius 800 Series User Manual General Switcher Protocol (SW-P-02) Nucleus Router Control Modules 14.7
Iss 5 Rev 7 Page 287 © 2017 SAM
14.7.1.4 Sirius 850 (Dual Frame)
Sirius 850 dual routers connected together:
• Frame 1 of 2 - Main video inputs and outputs are 1 to 576
• Frame 2 of 2 - Main video inputs and outputs are 577 - 1152
• Outputs 16370* = Monitor row 1
• Outputs 16371* = Monitor row 2
• Outputs 16372* = Monitor row 3
• Outputs 16373* = Monitor row 4
• Frame 1 of 2
- Mon Row Sources 0 - 575* = outputs 0 - 575*
- Mon Row Sources 576 - 1151 = inputs 0 - 575*
• Frame 2 of 2
- Mon Row Sources 0 - 575* = outputs 0 - 575*
- Mon Row Sources 576 - 1151 = inputs 0 - 575*
• Frame 1 of 2 - Outputs 1153 - 1292 are multiviewer outputs
• Frame 2 of 2 - Outputs 1293 - 1432 are multiviewer outputs

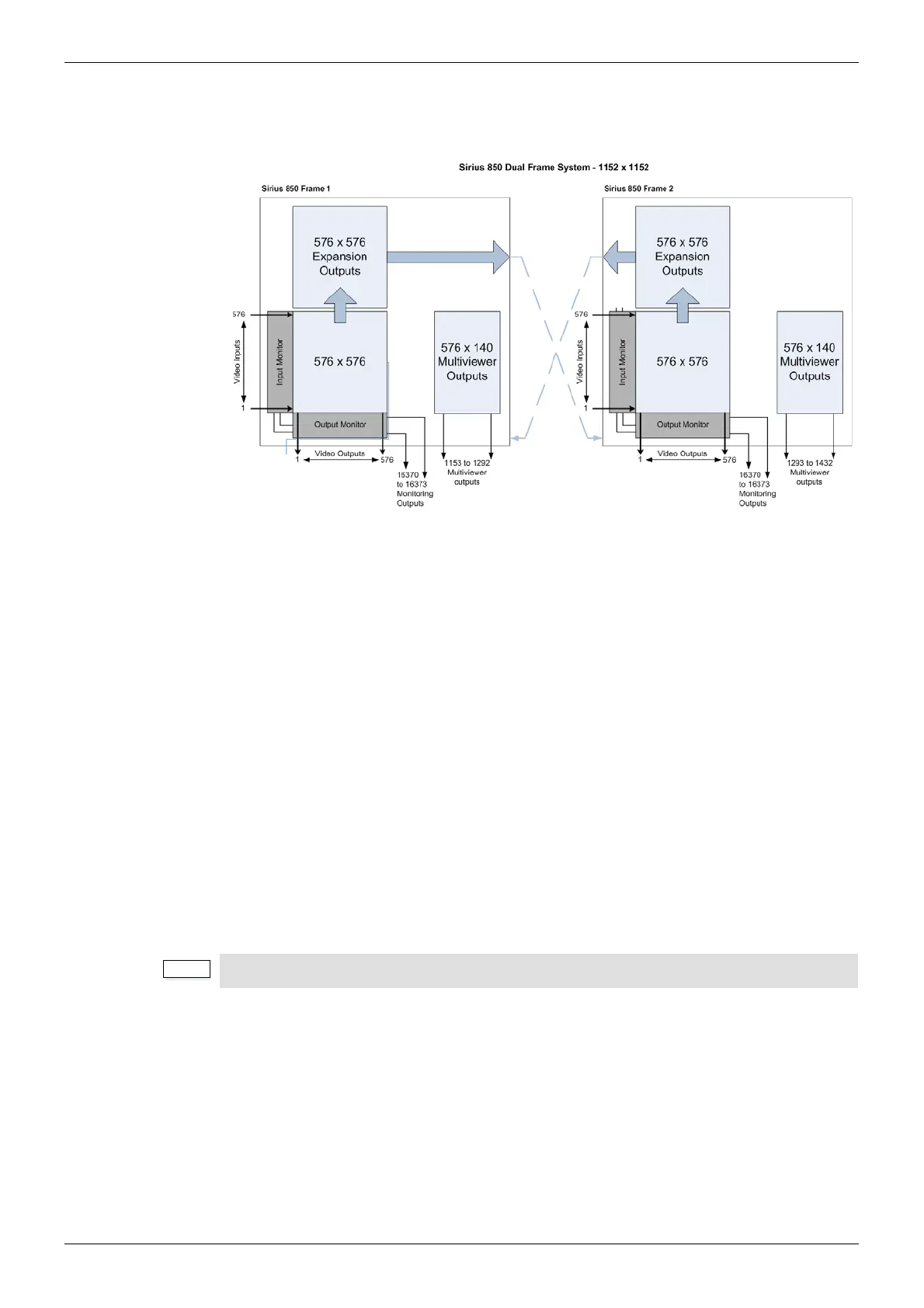

Figure 186 Sirius 850 Dual Router Diagram
Note:
All numbers with an Asterisk (*) against them are Base 0.
