SATO FX3-LX User Manual

179
• The settings of the printer driver should be done by an administrator.

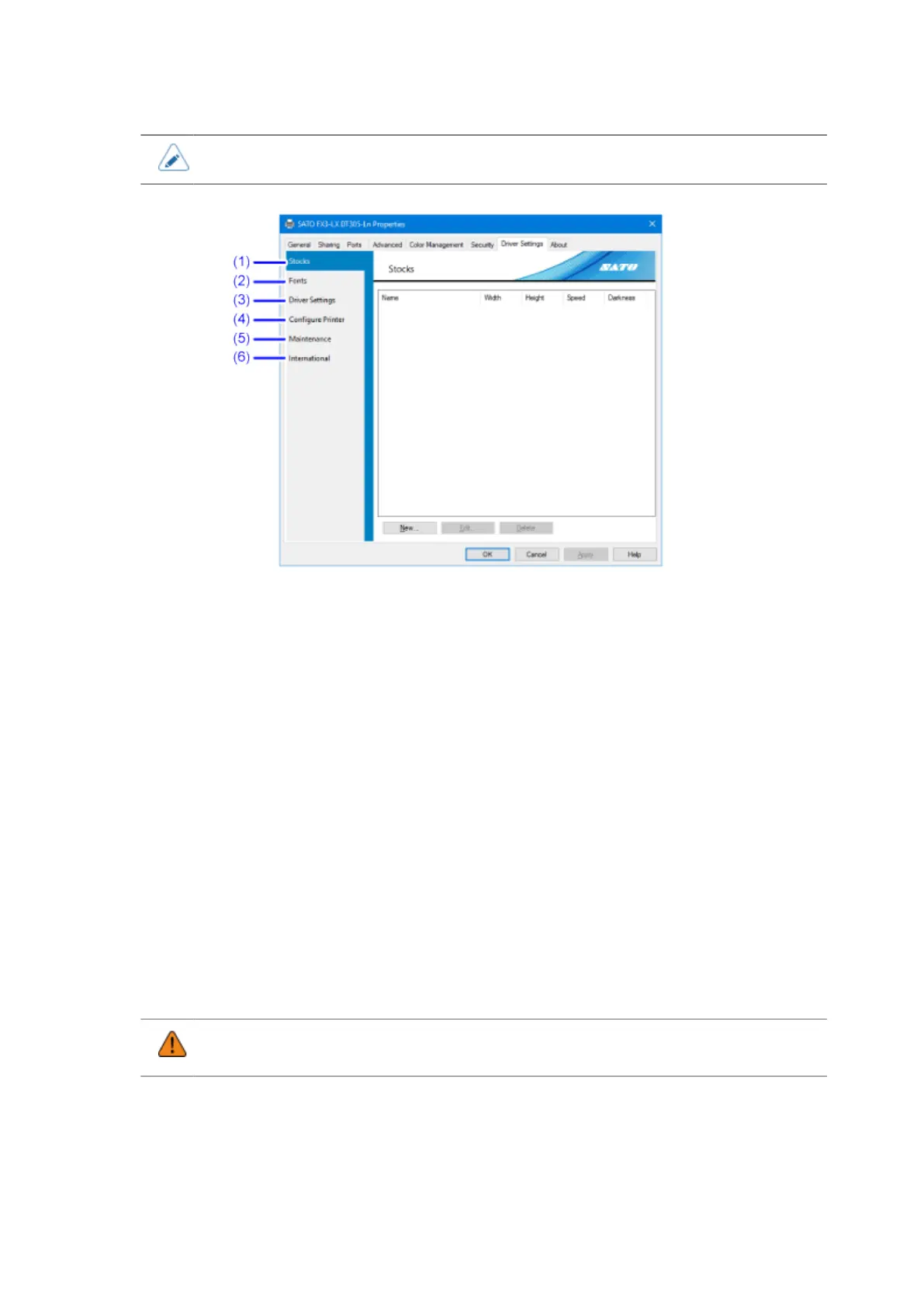

(1) [Stocks]
Manages stored media. The stored media can be used from applications.
(2) [Fonts]
Defines and manages barcode fonts and command fonts. You can add, modify, and delete
definitions. Also, you can print by replacing the system fonts with the printer’s device fonts when
defining replacement fonts.
(3) [Driver Settings]
Sets whether to enable the driver settings or application settings.
(4) [Configure Printer]
Obtains and changes the settings of the connected printer.
(5) [Maintenance]
Outputs the current driver settings to a file and reads the settings.
(6) [International]
Sets the display language of the tab for printer driver settings and the tab for displaying the
version.
• Be sure to manage the master data for fonts by customer. SATO do not take
responsibility for font data stored on the printer.

SATO FX3-LX Specifications

General

Cutter	Yes
Certification	EN55032, EN55024, EN61000-3-2 / 3-3, EN300 330-2 / -1, EN301 489-1 / -3 / -17, FCC Part15 Subpart B, ICES 003 UL60950-1, CSA C22.2 No.60950-1, IEC/EN60950-1 FCC Part15 Subpart C/E, ISED RSS-Gen, ISED RSS-247, EN 300 328, EN 301 893
Built-in barcodes	AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in RFID module	No
Maximum resolution	- DPI
Maximum print height	500 mm
Maximum printing width	80 mm
Battery voltage	14.4 V
AC input voltage	100 - 240 V
Battery capacity	1950 mAh
AC input frequency	50 / 60 Hz
Suitable for use in country/location	Europe
Sustainability certificates	ENERGY STAR
Display	LCD
Control type	Touch
Product color	White
Display diagonal	7 \
Display resolution	480 x 800 pixels
International Protection (IP) code	IPX2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.1
USB 2.0 ports quantity	4
Connectivity technology	Wired & Wireless
Media thickness	0.14 - 0.19 mm
Maximum roll diameter	105 mm
Storage temperature (T-T)	-5 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 75 %
Cables included	AC
Quantity per pack	1 pc(s)
Languages support	Multi

Weight and Dimensions

Depth	225 mm
Width	132 mm
Height	180 mm
Weight	3000 g
