Media Sensor Positions and Media Stop Positions
346
Media Sensor Positions and Media Stop Positions

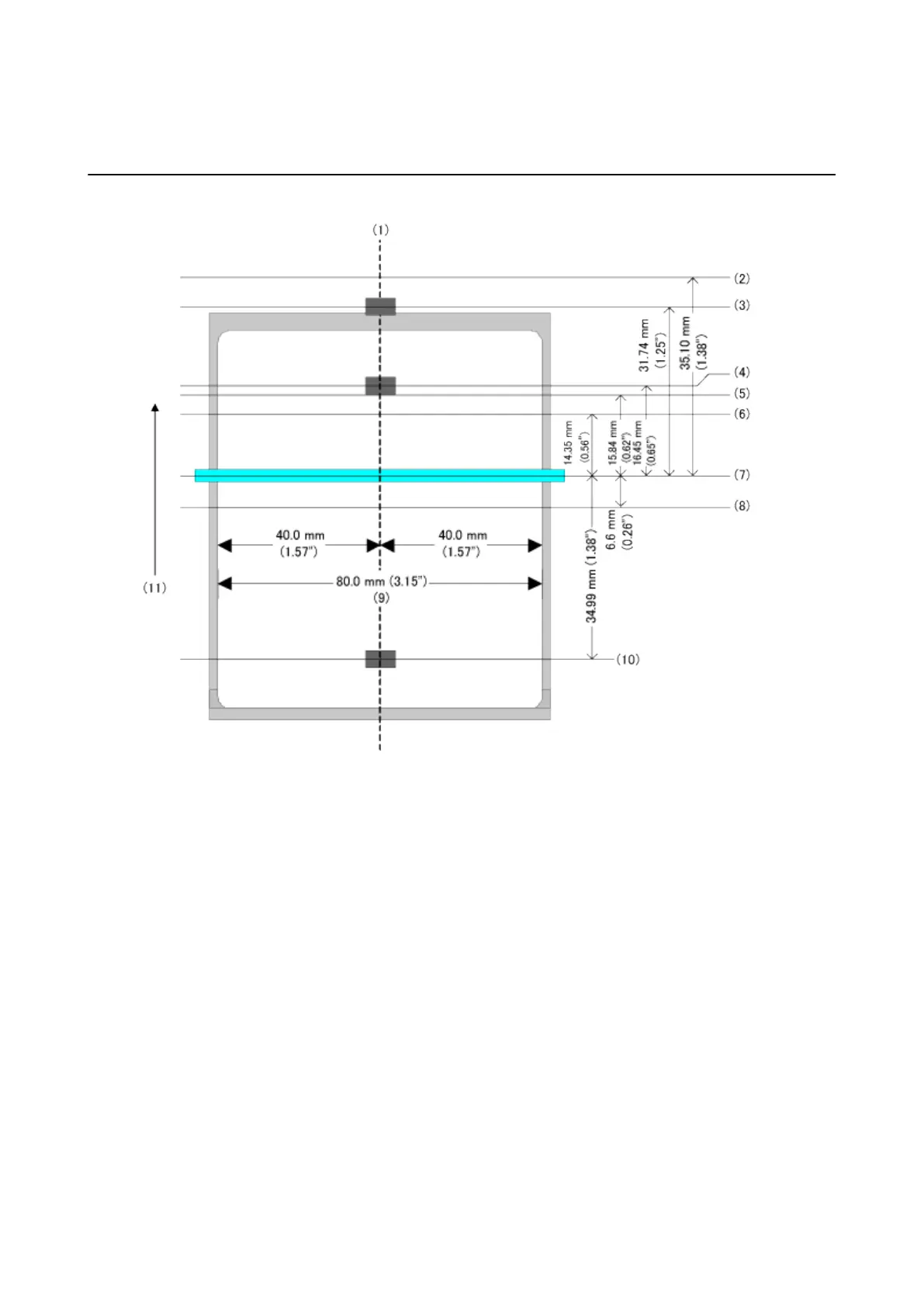

The media stop positions with the media sensor and various operation modes are as follows:
(1) Center position
(2) Media stop position in tear-off mode (with the optional cutter kit)
(3) Linerless sensor position
(4) Dispenser sensor position
(5) Media stop position in cutter mode
(6) Media stop position in tear-off/dispenser mode
(7) Print head
(8) Linerless standby position
(9) Available print width
(10) Gap/I-mark sensor position
(11) Media feed direction
