Notes on the Stop/Cut Position of Different Media
Stop Position of the Label in Dispenser Mode

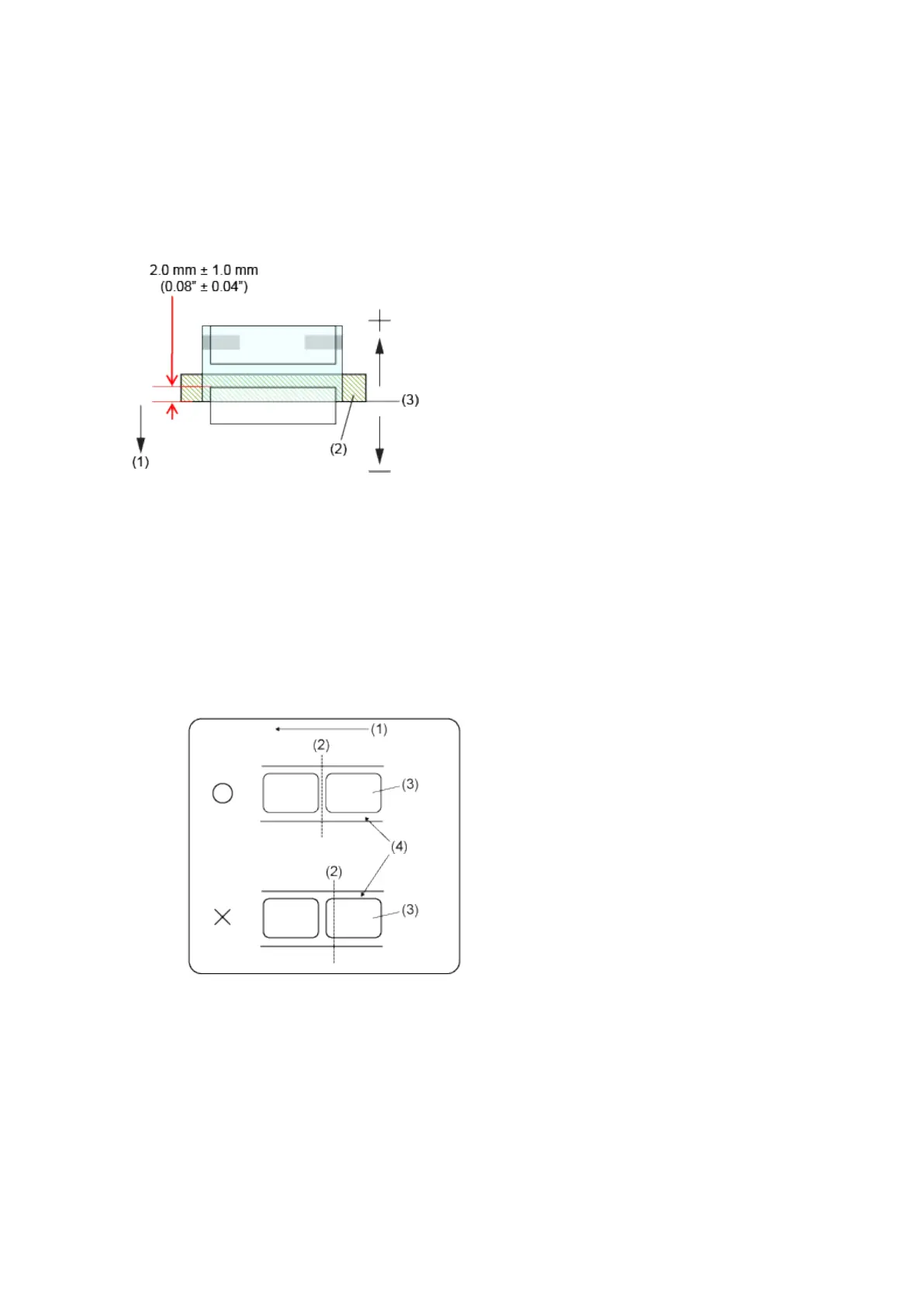

The regular position is to let the label stay about 2 ± 1 mm (0.08" ± 0.04") on the liner.
(1) Feed direction
(2) Dispenser bar
(3) Stop position
Cut Position When Using the Label in Cutter/Partial Cutter Mode
The regular cut position is between labels (only cut on the liner).
When you cut the label, the glue adheres to the blade of the cutter and the blade will decrease the
performance of the cutter. Adjust the cut position so as not to cut the label.
(1) Media feed direction
(2) Cut position (I-mark sensor/Gap sensor)
(3) Label
(4) Liner
Cut Position When Using the Media with Perforated Line in Cutter/Partial Cutter Mode
Adjust the cut position so as not to cut the media on the perforated line and on the area near side from
the perforated line (the area is shown in the figure below).
