[Notifications]
284

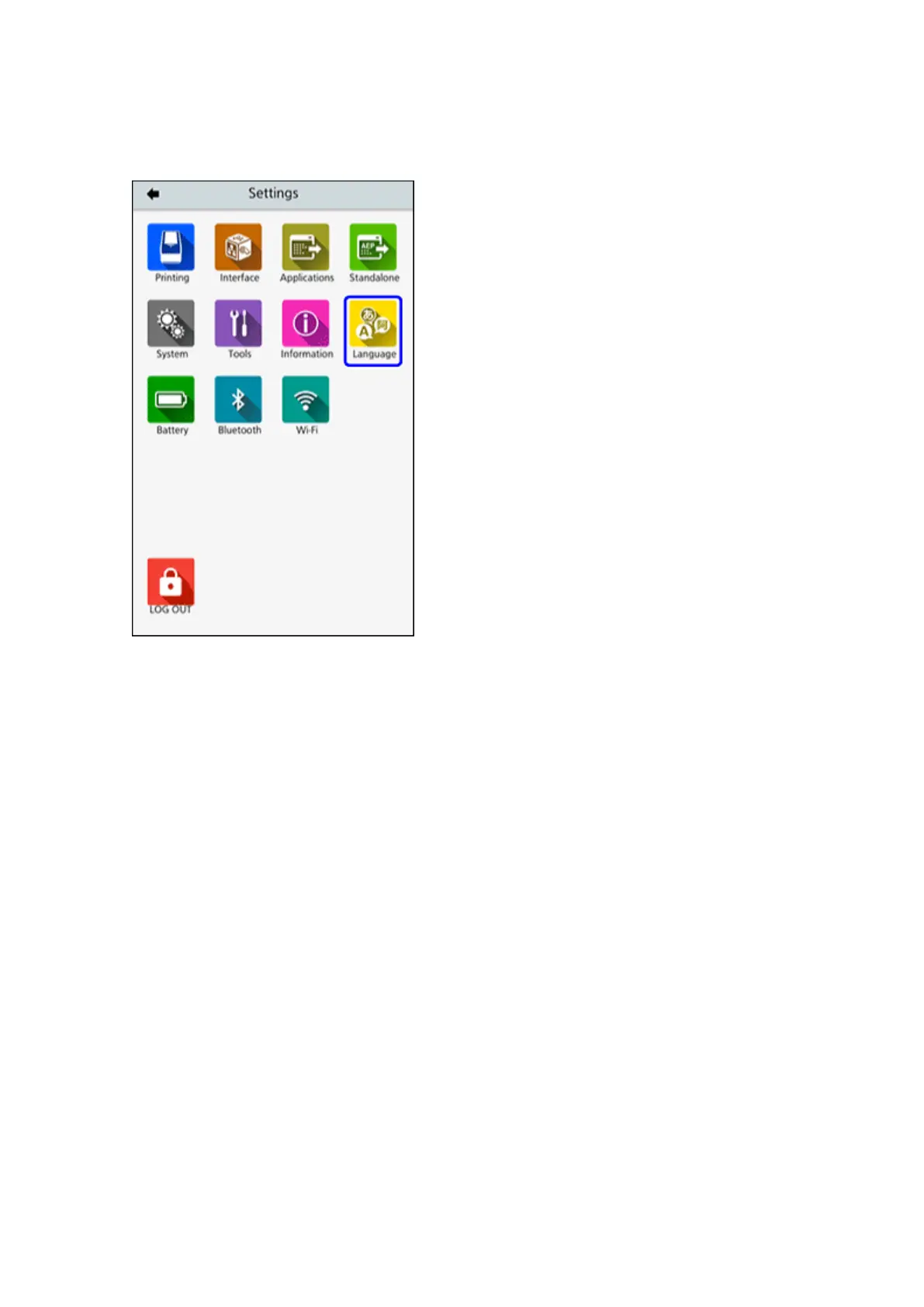

By enabling this function, the [Language] icon is added to the [Settings] menu screen as below. You
can directly access the display language setting screen.
[Notifications]
Set the function to notify when to clean and replace parts.
The setting items are as follows:
[Clean Printhead]
Notify when the print head needs to be cleaned.
The setting items are as follows:
[Clean Printhead]
Enable or disable the notification function about when the print head needs to be cleaned.
[Cleaning Interval]
Set the notification interval about when the print head needs to be cleaned.
You can change the setting only if you enabled the [Clean Printhead] menu.
The printer shows the print distance as a setting value. The setting range is from 10 to 1,000 meters.
[Clean Counter]
Shows the current print distance.
[Change Printhead]
Notify when the print head needs to be replaced.

Table of Contents

Other manuals for SATO FX3-LX

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the SATO FX3-LX and is the answer not in the manual?

SATO FX3-LX Specifications

General IconGeneral
CutterYes
CertificationEN55032, EN55024, EN61000-3-2 / 3-3, EN300 330-2 / -1, EN301 489-1 / -3 / -17, FCC Part15 Subpart B, ICES 003 UL60950-1, CSA C22.2 No.60950-1, IEC/EN60950-1 FCC Part15 Subpart C/E, ISED RSS-Gen, ISED RSS-247, EN 300 328, EN 301 893
Built-in barcodesAZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in RFID moduleNo
Maximum resolution- DPI
Maximum print height500 mm
Maximum printing width80 mm
Battery voltage14.4 V
AC input voltage100 - 240 V
Battery capacity1950 mAh
AC input frequency50 / 60 Hz
Suitable for use in country/locationEurope
Sustainability certificatesENERGY STAR
DisplayLCD
Control typeTouch
Product colorWhite
Display diagonal7 \
Display resolution480 x 800 pixels
International Protection (IP) codeIPX2
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version4.1
USB 2.0 ports quantity4
Connectivity technologyWired & Wireless
Media thickness0.14 - 0.19 mm
Maximum roll diameter105 mm
Storage temperature (T-T)-5 - 60 °C
Operating temperature (T-T)5 - 35 °C
Storage relative humidity (H-H)30 - 90 %
Operating relative humidity (H-H)30 - 75 %
Cables includedAC
Quantity per pack1 pc(s)
Languages supportMulti
Weight and Dimensions IconWeight and Dimensions
Depth225 mm
Width132 mm
Height180 mm
Weight3000 g
