11. Close the dispenser frame.
Cleaning Using the Cleaning Sheet
The cleaning procedure using the cleaning sheet is as follows:
1. Make sure that the printer is powered off, and disconnect the power cord from the
AC outlet or remove the optional battery.

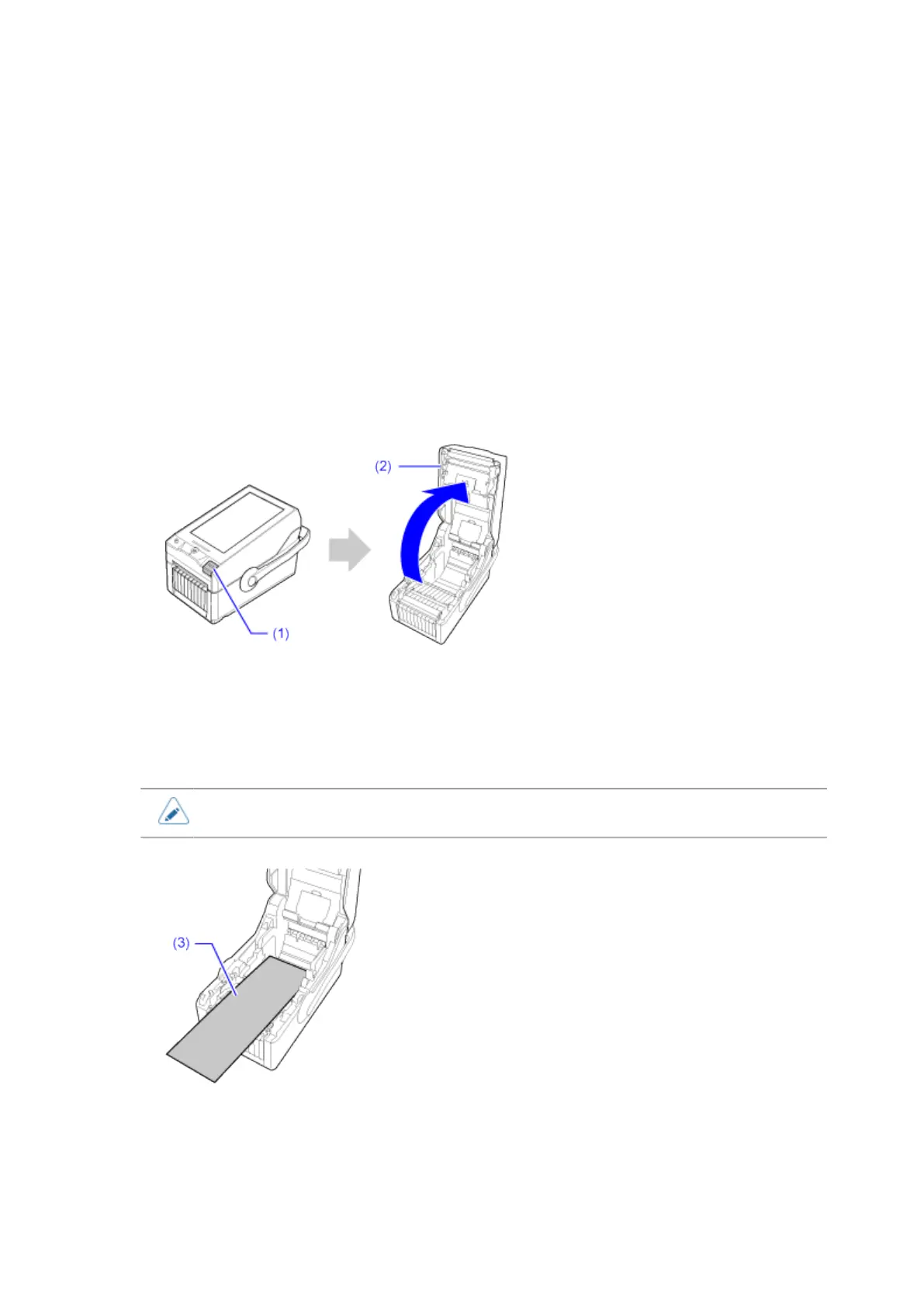

2. Press the cover open button (1) to open the top cover (2).
3. Remove the media if it is already loaded.
4. Cut the cleaning sheet to a width of about 8 cm (3").
5. Place the cleaning sheet (3) on the platen roller.
• Align the rough side of the cleaning sheet adjacent to the top cover.
6. Close the top cover.
Push both ends of the top cover, and close it firmly until it clicks.

SATO FX3-LX Specifications

General

Cutter	Yes
Certification	EN55032, EN55024, EN61000-3-2 / 3-3, EN300 330-2 / -1, EN301 489-1 / -3 / -17, FCC Part15 Subpart B, ICES 003 UL60950-1, CSA C22.2 No.60950-1, IEC/EN60950-1 FCC Part15 Subpart C/E, ISED RSS-Gen, ISED RSS-247, EN 300 328, EN 301 893
Built-in barcodes	AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in RFID module	No
Maximum resolution	- DPI
Maximum print height	500 mm
Maximum printing width	80 mm
Battery voltage	14.4 V
AC input voltage	100 - 240 V
Battery capacity	1950 mAh
AC input frequency	50 / 60 Hz
Suitable for use in country/location	Europe
Sustainability certificates	ENERGY STAR
Display	LCD
Control type	Touch
Product color	White
Display diagonal	7 \
Display resolution	480 x 800 pixels
International Protection (IP) code	IPX2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.1
USB 2.0 ports quantity	4
Connectivity technology	Wired & Wireless
Media thickness	0.14 - 0.19 mm
Maximum roll diameter	105 mm
Storage temperature (T-T)	-5 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 75 %
Cables included	AC
Quantity per pack	1 pc(s)
Languages support	Multi

Weight and Dimensions

Depth	225 mm
Width	132 mm
Height	180 mm
Weight	3000 g
